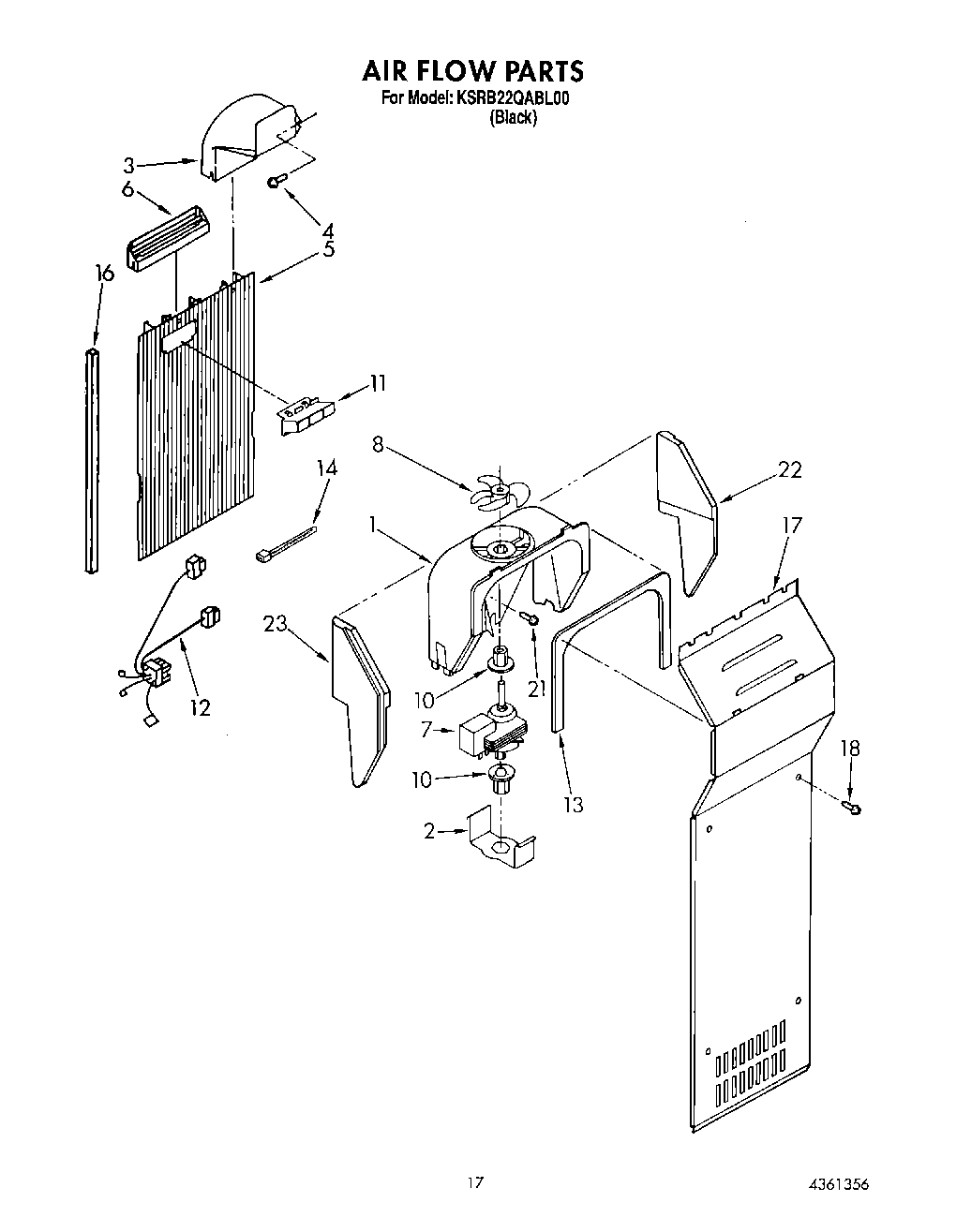

KSRB22QABL00 11 – AIR FLOW

Products

Position	Product
1	W11254898 Whirlpool Refrigerator Scroll Fan
2	WP2155590 Whirlpool Refrigerator Retainer
3	Air Scoop
4	WP488729 Whirlpool Refrigerator Door Screw
5	4388357 Whirlpool Refrigerator Evaporator Cover
6	Diffuser, Air Duct
7	4389144 Whirlpool Refrigerator Evaporator Fan Motor
8	WP2169142 Whirlpool Fan Blade
10	Grommet, Fan (2)
11	2182146 Whirlpool Refrigerator Duct
12	Harness, Fan Evaporator, And Heater, Bi-Metal
13	WP2155789 Whirlpool Refrigerator Gasket
14	WPW10339879 Whirlpool Wire Tie
16	WP2304241 Whirlpool Refrigerator Gasket
18	SCREW
21	WP489478 Whirlpool Refrigerator Screw
22	4388358 Whirlpool Refrigerator Support Bracket
