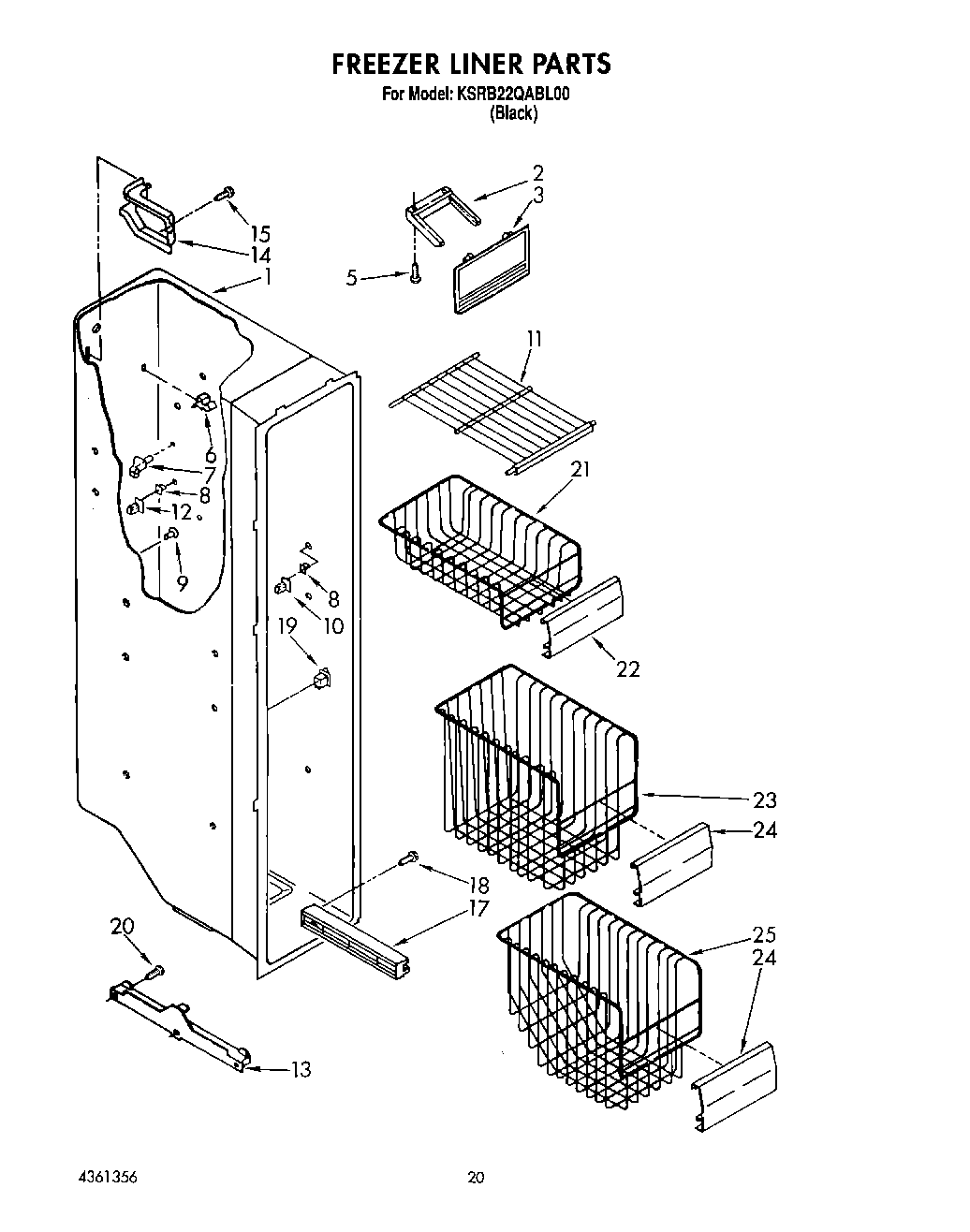

KSRB22QABL00 13 – FREEZER LINER, LIT/OPTIONAL

KSRB22QABL00 13 – FREEZER LINER, LIT/OPTIONAL

Written by

in

KSRB22QABL00 13 – FREEZER LINER, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4361356
	WPL LIT628107
	Torx Key
	WPW10312301 Whirlpool Refrigerator Ice Container
	WPL LIT2155217
	WPL LIT2161896
	WPL LIT2161900
1	Liner (Not A Serviceable Part)
2	Slide, Ice Door
3	Door, Ice Compartment
5	WP965173 Whirlpool Dishwasher Screw
6	2215823 Whirlpool Refrigerator Clip
7	4388405 Whirlpool Refrigerator Shelf Stud
8	Stud, Support
9	Grommet (8)
10	Stud, Front R.S.
11	Shelf
12	Stud, Rear R.S.
13	W10845585 Whirlpool Refrigerator Track
13	W10845583 Whirlpool Refrigerator Track
14	Cover, Wiring
15	WP488729 Whirlpool Refrigerator Door Screw
17	Shelf Track (Right Side (4))
17	Shelf Track (Left Side (4))
18	W11693756 Whirlpool Screw Assembly
19	W11457217 Whirlpool Refrigerator Rocker Switch Combination
20	718257 Whirlpool Dishwasher Screw
21	Basket, Small
22	Front, Basket
23	Basket, Upper
24	Front, Basket
25	WP72107 Whirlpool Touchup
25	Basket, Lower
25	Leveler (Thinner)
25	799344 Whirlpool Refrigerator Paint
25	212643 Whirlpool Refrigerator Permagum Sealer
25	72017 Whirlpool Appliance Touch-Up Paint White
25	350956 Whirlpool Spray Assembly
25	Almond (Uncut)
25	350942 Whirlpool Spray Paint
25	WP505587 Whirlpool Refrigerator Sealer
25	CEMENT, ALUMILASTIC (1 1/4 OZ.)
25	Enamel, Black (1 Qt. Uncut)
25	WPL 799833
25	WPL 876029
25	285006 Whirlpool Spray
25	72032 Whirlpool Touch Up Paint Black
25	WP503695 Whirlpool Refrigerator Sealer
25	876370 Whirlpool Refrigerator Insulation
25	833938 Whirlpool Refrigerator Terminal
25	350930 Whirlpool White Spray Paint
25	606755 Whirlpool Refrigerator Bag
25	511873 Whirlpool Refrigerator Paint
25	TAPE, VINYL (3/4 X 108“)
25	Transformer (115-230 Volt)
25	WP542638 Whirlpool Refrigerator Grease
