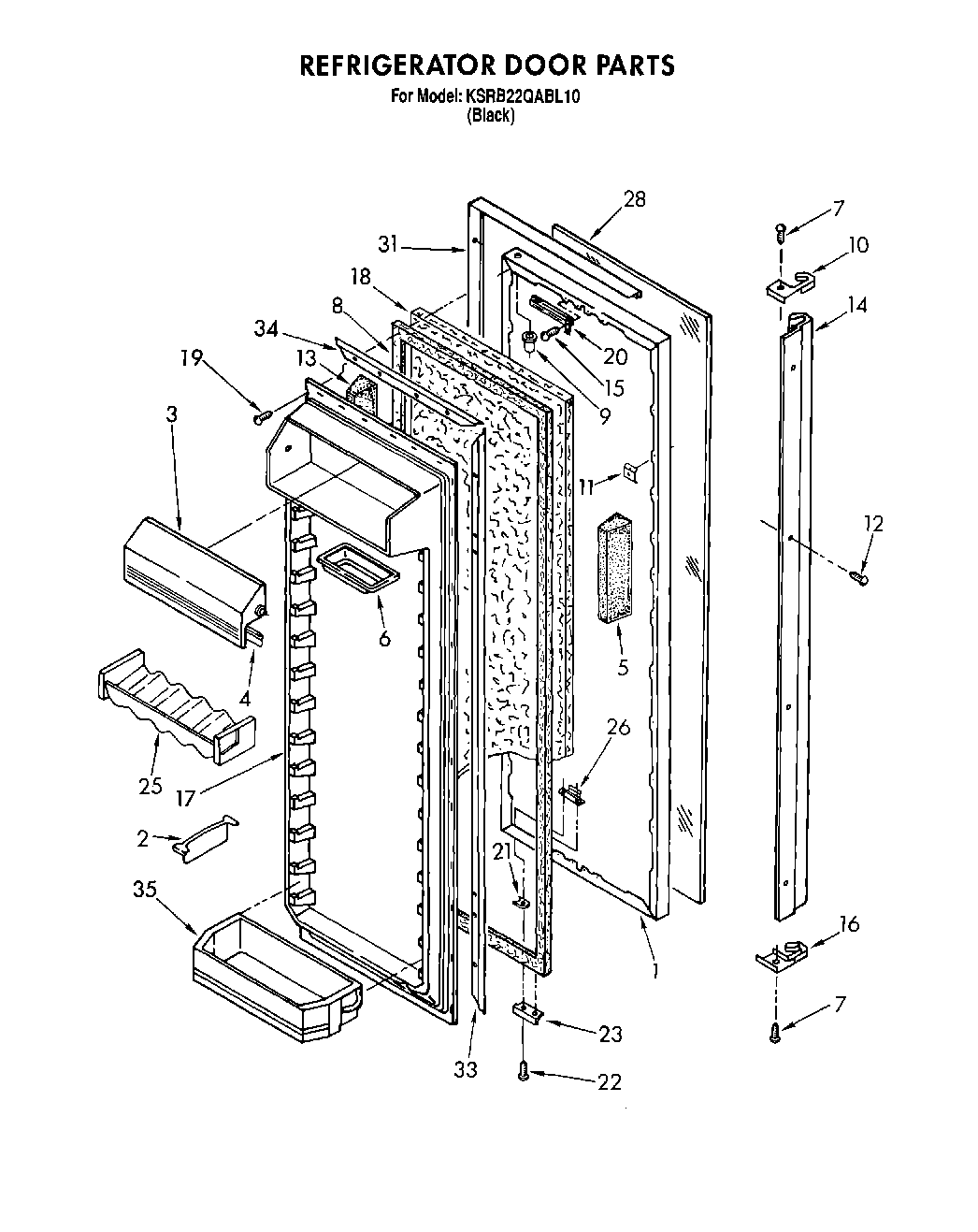

KSRB22QABL10 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Also Order Item 18)
2	WPL 1117999
3	Compartment Door,
4	Gasket, Utility Door
5	Dike, Door Handle Side
6	Butter, Tray
7	Screw, 6-32 x 1/2
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	End Cap, Bottom
11	Screw Anchor (2)
12	Screw (10)
13	Dike, Door Hinge Side
14	Handle Assembly
15	WP488729 Whirlpool Refrigerator Door Screw
16	End Cap, Top
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
25	WPL 1125981
26	Tap Plate
28	Black Glass
31	Trim, Door
33	Retainer, Gasket
34	Gasket Retainer, Top & Bottom
35	Bin, Door Shelf Deep. Wide
