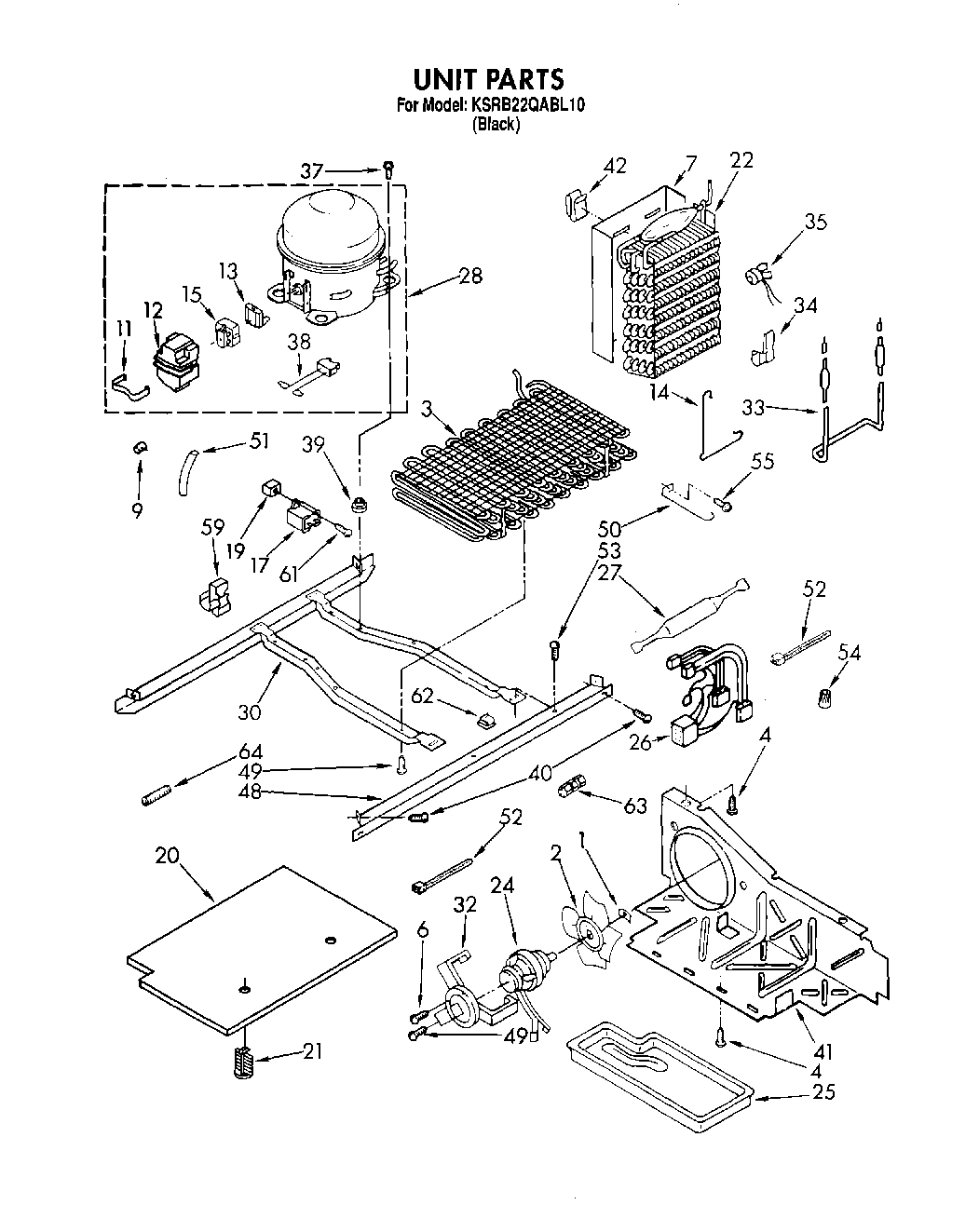

KSRB22QABL10 08 – UNIT

Products

Position	Product
NI	W11693756 Whirlpool Screw Assembly
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
9	WP2158826 Whirlpool Refrigerator Dampener
11	case spring
11	Strap
12	Case, Relay
12	Cover
13	Overload (Includes Relay)
13	Overload
14	Clamp
15	Relay (See Overload)
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
19	Screw Grommet
20	Cover-Unit Btm.
21	489396 Whirlpool Refrigerator Clip
22	WP2188822 Whirlpool Refrigerator Evaporator
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Unit, Harness
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 11, 12, 13, 15, 17, 37, 38, 39) (Also Order)
28	876765 Whirlpool Primary Mounting Kit Refrigerator
30	2304903 Whirlpool Refrigerator Frame
32	Fan, Motor Bracket
33	Heater, Defrost
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
38	WP2172890 Whirlpool Refrigerator Wire
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	Screw, 8 x 3/8
50	1105612 Whirlpool Fan Guard
51	SLEEVE
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	WP489478 Whirlpool Refrigerator Screw
59	Clip, Wire
62	Clip, Tube (3)
63	WP4211117 Whirlpool Refrigerator Connector
64	WP978025 Whirlpool Refrigerator Valve
64	978030 Whirlpool Refrigerator Valve
64	VALVE, ACCESS (1/2“)
64	Spring-Tube
64	978027 Whirlpool Refrigerator Primary Valve
64	978026 Whirlpool Refrigerator Primary Valve
64	VALVE, ACCESS (5/8“)
64	876764 Whirlpool Refrigerator Primary Valve
