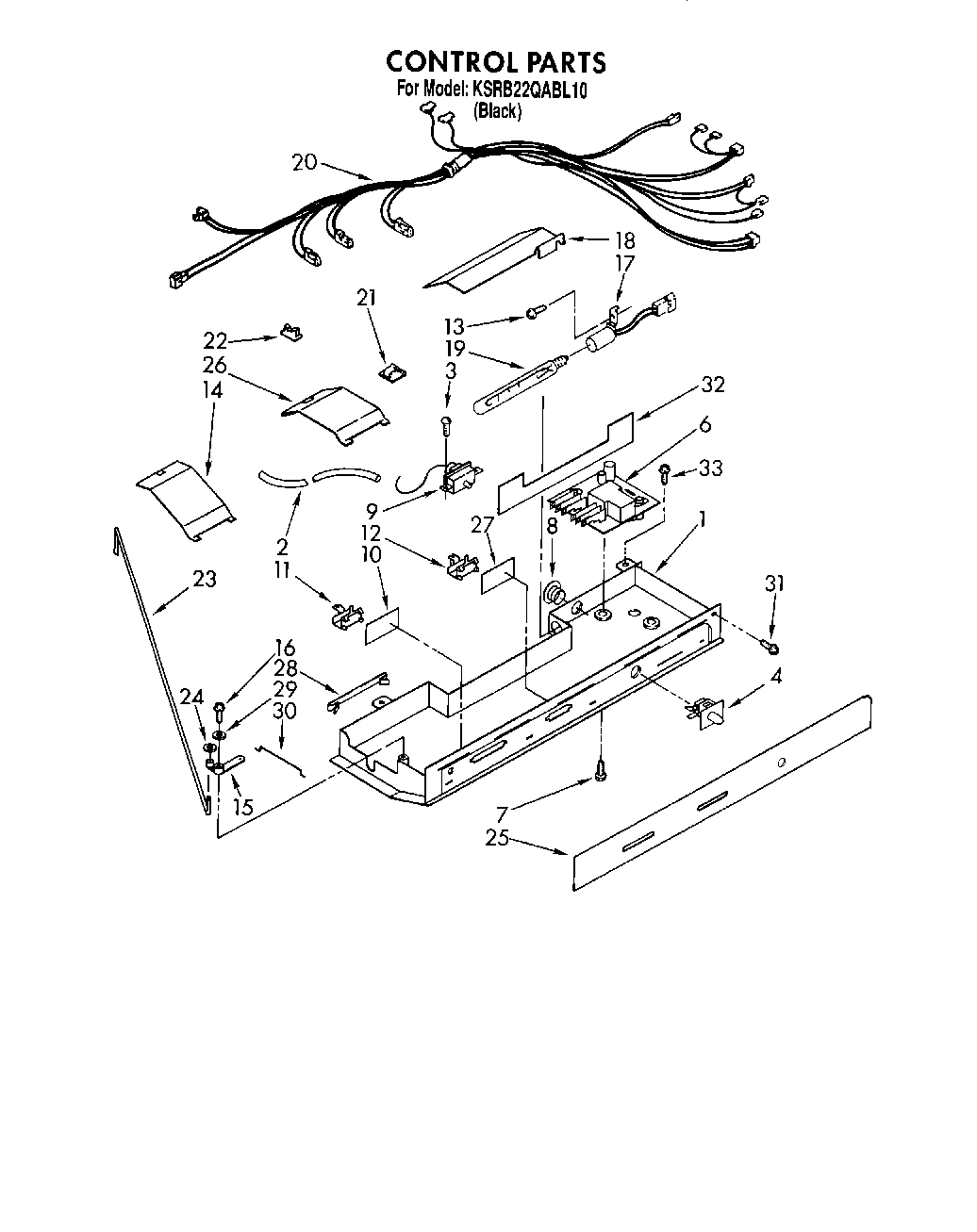

KSRB22QABL10 09 – CONTROL

Products

Position	Product
1	Control Box
2	WP2196003 Whirlpool Refrigerator Bar Riser
3	2006254 Whirlpool Refrigerator Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
6	4388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2315562 Whirlpool Refrigerator Thermostat
10	Window
11	Slide, Air Control
12	Slide, Thermostat
13	WP489478 Whirlpool Refrigerator Screw
14	Light Bar
15	2161306 Whirlpool Refrigerator Arm Pivot
16	627068 Whirlpool Refrigerator Screw
17	Light Socket
18	Heat Shield
19	WP548049 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	2161308 Whirlpool Refrigerator Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
26	Light Bar
27	Window
28	Clip, Control Box
29	489203 Whirlpool Refrigerator Washer
30	2161307 Whirlpool Refrigerator Rod
32	Heat Shield
33	WP488488 Whirlpool Refrigerator Screw
