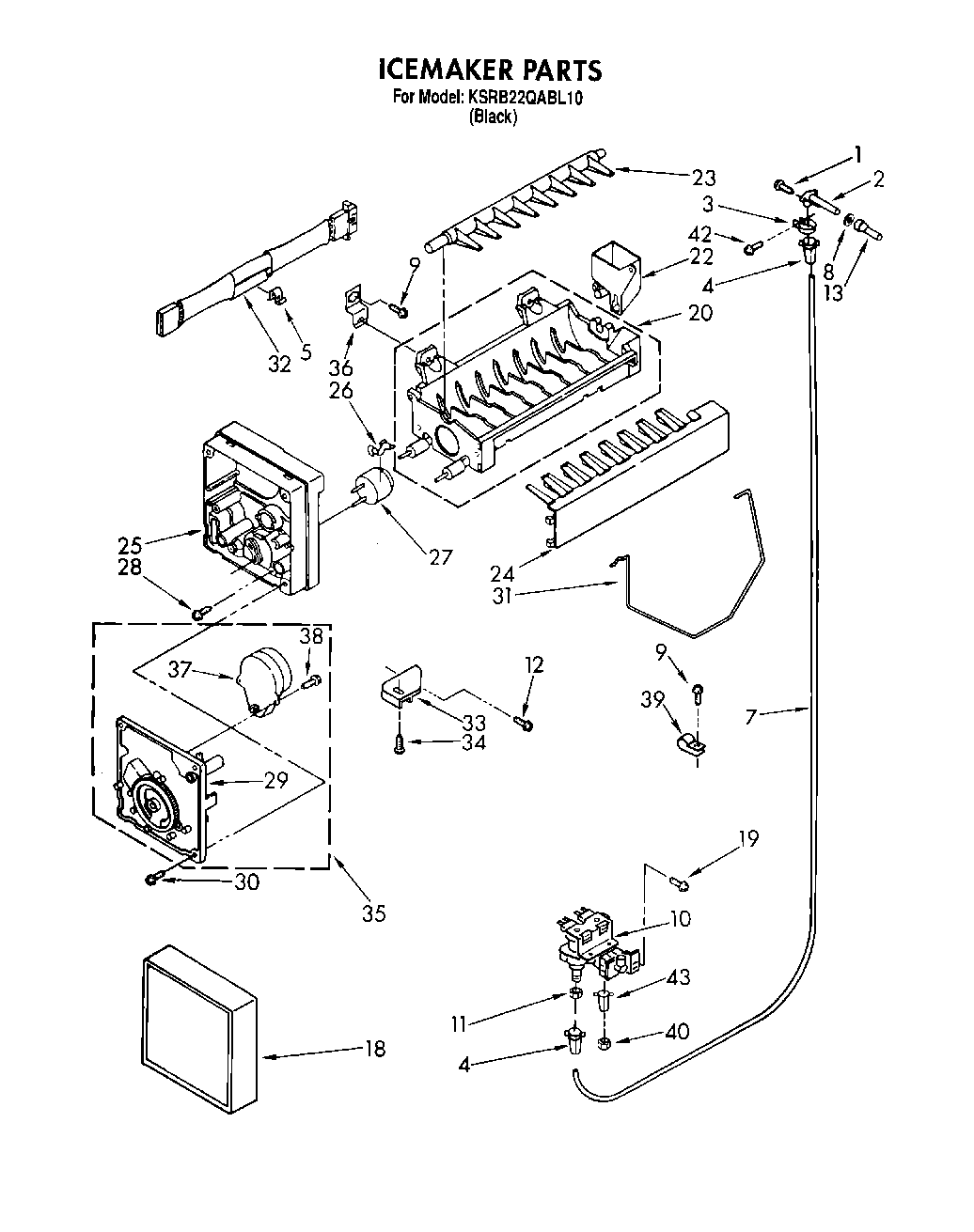

KSRB22QABL10 11 – ICEMAKER

Products

Position	Product
2	WP2196157 Whirlpool Fill Tube
3	WP488878 Whirlpool Refrigerator Tube Clamp
4	4387491 Whirlpool Refrigerator Insert
5	WP628379 Whirlpool Refrigerator Clip
7	W10823511 Whirlpool Refrigerator Water Tube
8	WP1106508 Whirlpool Refrigerator Gasket
9	WP489478 Whirlpool Refrigerator Screw
10	W10853654 Whirlpool Water Inlet Valve
11	WP627018 Whirlpool Refrigerator Nut
12	Screw, 8-15 x 1/2 (4)
13	Tube, Water Inlet
18	Cover
19	WPW10141625 Whirlpool Refrigerator Screw Assembly
20	WP542638 Whirlpool Refrigerator Grease
20	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22	WP628356 Whirlpool Refrigerator Fill Cup
23	WP627843 Whirlpool Refrigerator Ejector Arm
24	WP2182124 Whirlpool Refrigerator Stripper Arm
25	WP2195914 Whirlpool Refrigerator Ice Maker Housing
26	WP2315522 Whirlpool Refrigerator Clip
27	WP627985 Whirlpool Icemaker Cycling Thermostat
27	Cement Alumilastic)
28	8533917 Whirlpool Refrigerator Screw
30	WP681249 Whirlpool Screw Assembly
31	W11342242 Whirlpool Refrigerator Ice Level Arm
32	WP2187464 Whirlpool Refrigerator Wire Harness
33	W11500948 Whirlpool Refrigerator Bracket
34	Screw, 8-32 x 27/64
36	Clip, Support (2)
37	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38	489136 Whirlpool Refrigerator Screw
39	WP488366 Whirlpool Refrigerator Clamp
40	Nut, Compression
42	WP488787 Whirlpool Refrigerator Screw
43	Insert, Tube
100	4317943 Whirlpool Refrigerator Ice Maker Assembly
