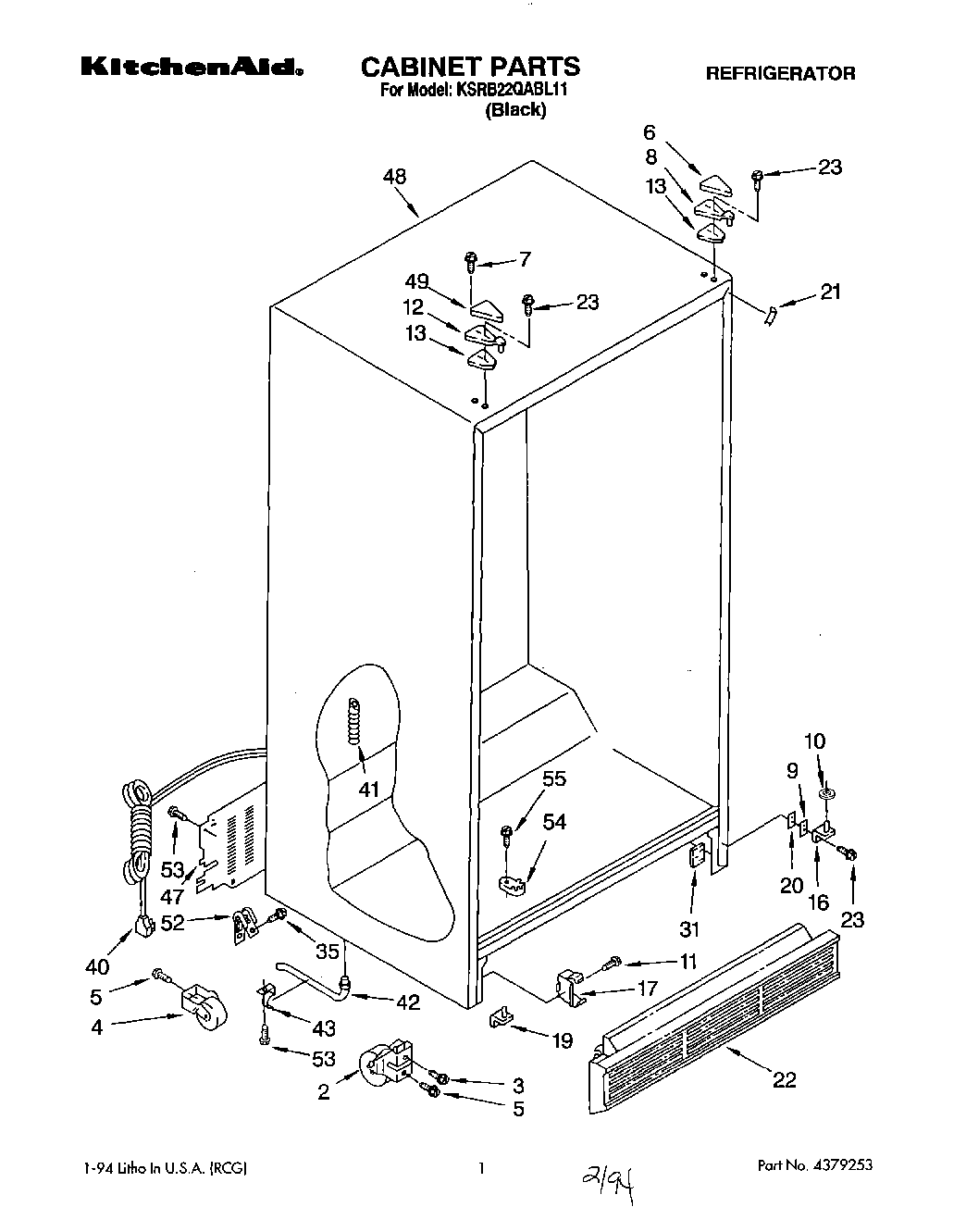

KSRB22QABL11 01 – CABINET

Products

Position	Product
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Hinge Cover (Black)
7	Screw
8	Hinge Top (R.H.)
9	Shim, Bottom Hinge
10	Washer, 7/16
11	WP489478 Whirlpool Refrigerator Screw
12	WP2196046 Whirlpool Refrigerator Door Hinge
13	Shim, Hinge Freezer Door
16	Hinge Bottom (R.H) (Black)
17	WP2155013 Whirlpool Refrigerator Clip
19	Hinge Bottom (L.H) (Black)
20	Spacer, Hinge
21	Filler, Wrapper (Black)
22	Grille
23	WP999367 Whirlpool Refrigerator Screw
31	Tap Plate (2)
35	WP489464 Whirlpool Refrigerator Screw
40	Cord, Service
41	W11566763 Whirlpool Fitting
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
47	WP2188756 Whirlpool Refrigerator Unit Cover
48	Cabinet (Not A Serviceable Part)
49	Hinge Cover
52	549193 Whirlpool Refrigerator Power Clamp
54	WPW10329686 Whirlpool Door Cam Black
55	WP489483 Whirlpool Screw
