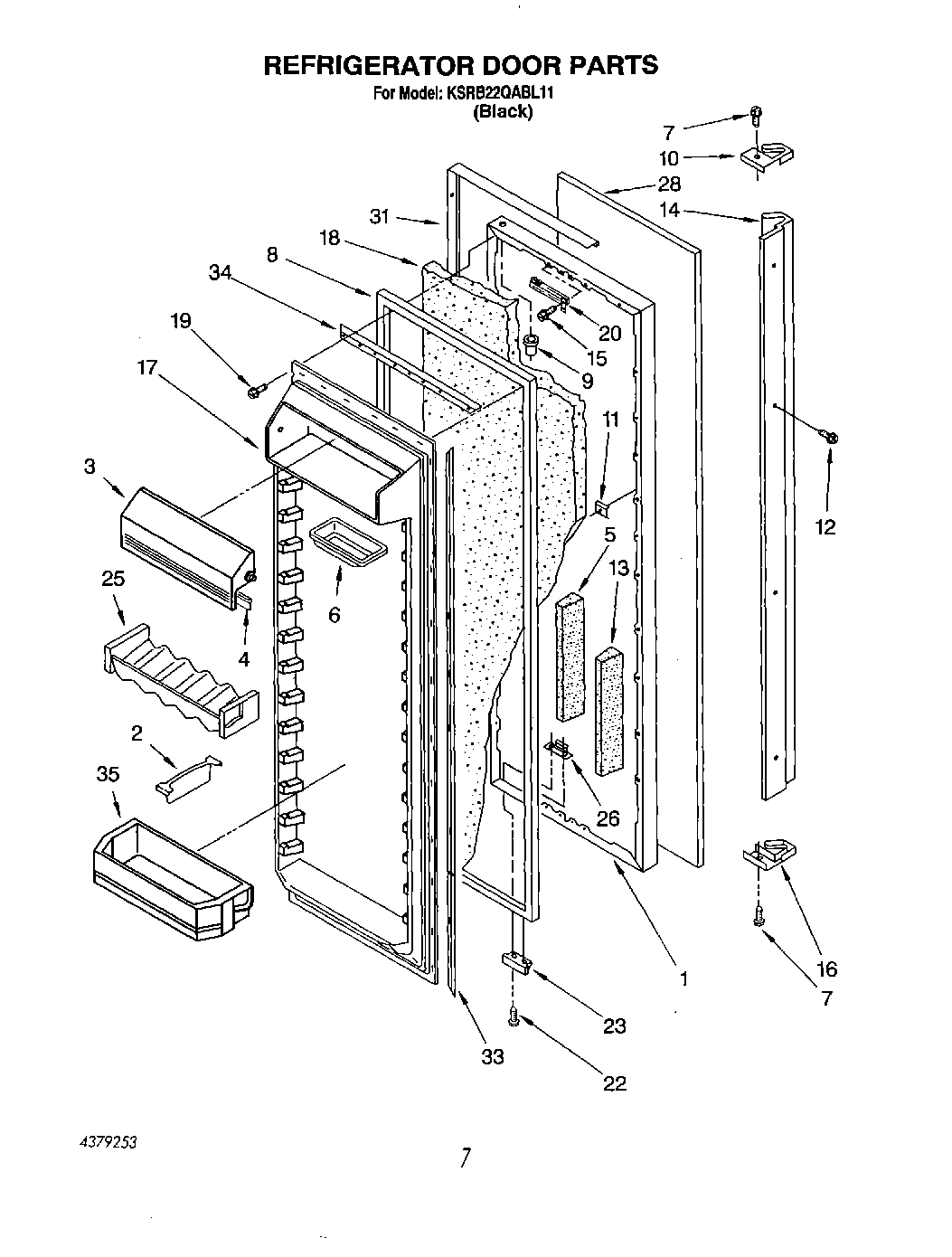

KSRB22QABL11 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Also Order Item 18)
2	WPL 1117999
3	Compartment Door,
4	Gasket, Utility Door
5	Dike, Door Handle Side
6	Butter, Tray
7	Screw, 6-32 x 1/2
8	2188404A Whirlpool Refrigerator Door Gasket
9	Cap, Hinge Sleeve (2)
10	End Cap, Bottom
11	Screw Anchor (2)
12	Screw (10)
13	Dike, Door Hinge Side
14	Handle Assembly
15	WP488729 Whirlpool Refrigerator Door Screw
16	End Cap, Top
17	Panel, Interior Door
18	WPL 876029
19	WP489069 Whirlpool Compactor Screw
20	Door Closer, Upper Cam
22	WP999367 Whirlpool Refrigerator Screw
23	Bracket, Door Stop
25	WPL 1125981
26	Tap, Plate
28	Black Glass
31	Trim, Door
33	Retainer, Gasket
34	Gasket Retainer, Top & Bottom
35	Bin, Door Shelf Deep. Wide
