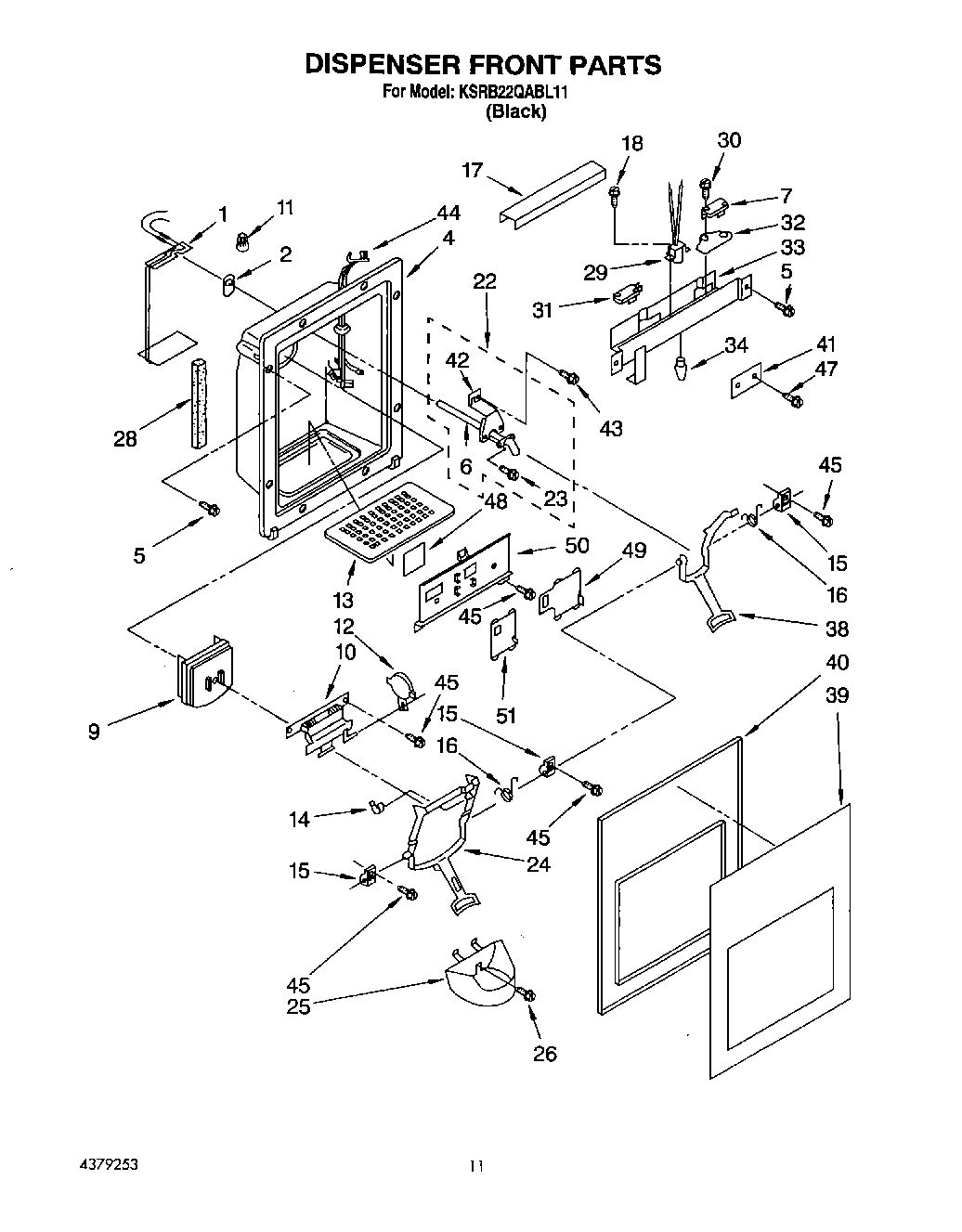

KSRB22QABL11 07 – DISPENSER FRONT

Products

PositionProduct
1Heater, Dispenser
2Grommet
4Housing, Dispenser
5W11693756 Whirlpool Screw Assembly
6Tube, Water (See Item No.22)
7WP2162361 Whirlpool Switch
9Door, Ice
10Door Mechanism Assembly (Includes Item 9)
11Wire Connector
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
22WP4388152 Whirlpool Refrigerator Fitting
23WP965173 Whirlpool Dishwasher Screw
24Lever Assembly, Ice Dispenser
25Guide, Ice
26Screw
28Seal
29Lamp Holder
30Screw,
31814037 Whirlpool Microwave Switch
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
38Lever Assembly, Water Disp
39WPL 1126178
40WPL 1126172
41Spacer, Switch (2)
42Bracket, Water
43Screw, 8-18 x 3/4
44Wiring Harness, Door
45WP3400906 Whirlpool Refrigerator Screw
47Screw, 4-40 x 1
48Heat Shield, Frame
49Slide, Light Switch
50Frame, Slides
51Slide, Cube/Crush Switch
