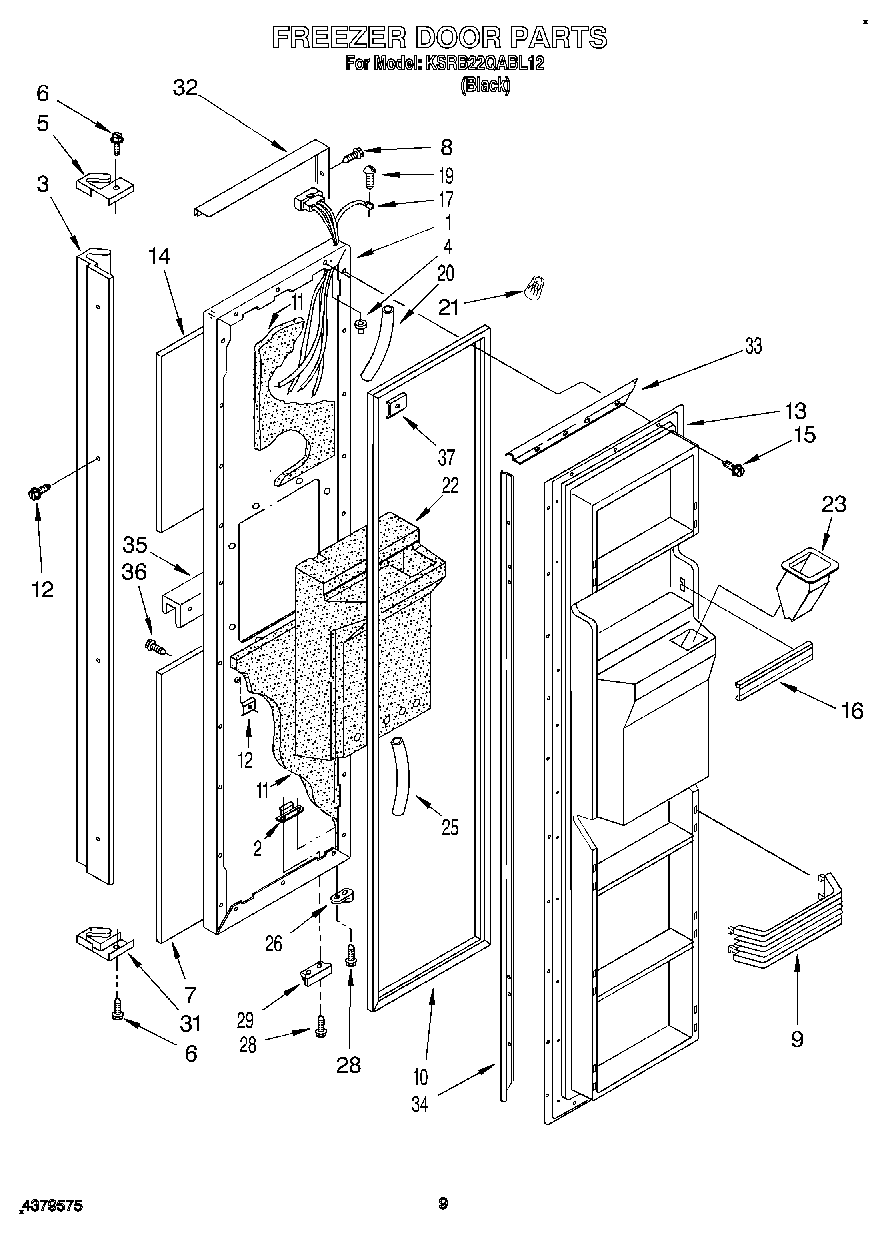

KSRB22QABL12 06 – FREEZER DOOR

Products

Position	Product
1	Freezer, Door Panel (Also Order Item 11)
2	Tap, Plate
3	Handle Assembly
4	Seal, Hinge Pin
5	End Cap, Top
6	Screw, 6-32 x 1/2
7	Black Glass, Lower
8	Screw (10)
9	Shelf Bin (4)
10	2188405A Whirlpool Refrigerator Door Gasket
11	WPL 876029
12	Screw Anchor (2)
13	Panel, Interior Door
14	Black Glass, Upper
15	WP489069 Whirlpool Compactor Screw
16	Trim, Door Shelf
17	Harness, Door (Includes Item 18)
19	WP488234 Whirlpool Air Conditioner Screw
20	Tube, Door Wiring
21	Wire Connector
22	Insulation, Dispenser
23	Chute, Ice
25	Tube, Door Wiring
26	4318165 Whirlpool Refrigerator Door Closure Cam Kit
28	WP999367 Whirlpool Refrigerator Screw
29	Bracket, Door Stop
31	End Cap, Bottom
32	Trim, Door
33	Retainer, Gasket
34	Retainer, Gasket
35	Trim, Dispenser
36	Screw
37	WP939101 Whirlpool Refrigerator Plate
