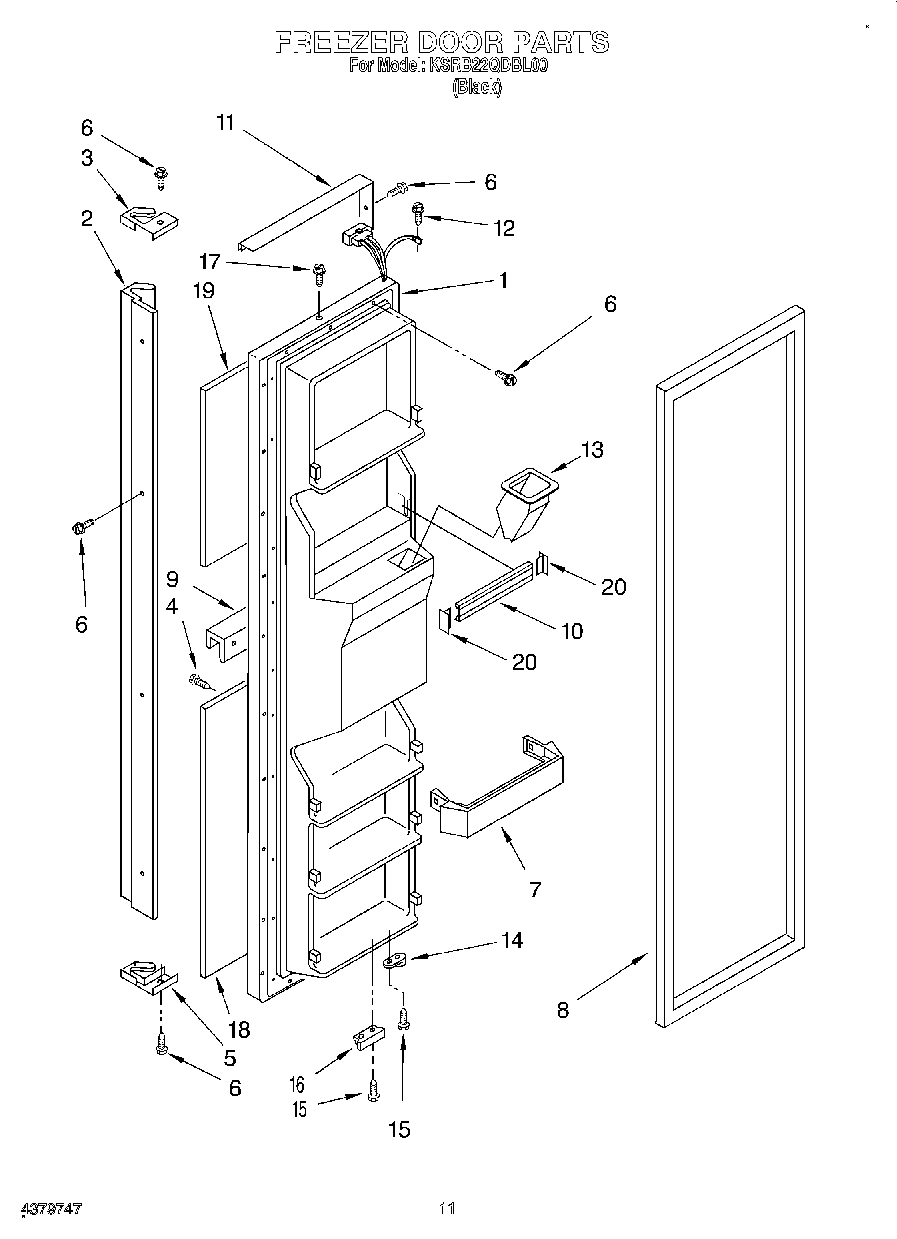

KSRB22QDBL00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts)
2	Handle Assembly
3	End Cap, Top
4	Screw
5	End Cap, Bottom
6	Screw, 6-32 x 1/2
7	Trivet, Shelf (4)
8	2159072 Whirlpool Refrigerator FIP Gasket
9	Trim, Dispenser
10	WPW10307490 Whirlpool Door Trim Assembly
11	Trim, Door
12	WP488234 Whirlpool Air Conditioner Screw
13	Chute, Ice
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop
17	Screw (10)
18	Black Glass, Lower
19	Black Glass, Upper
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
