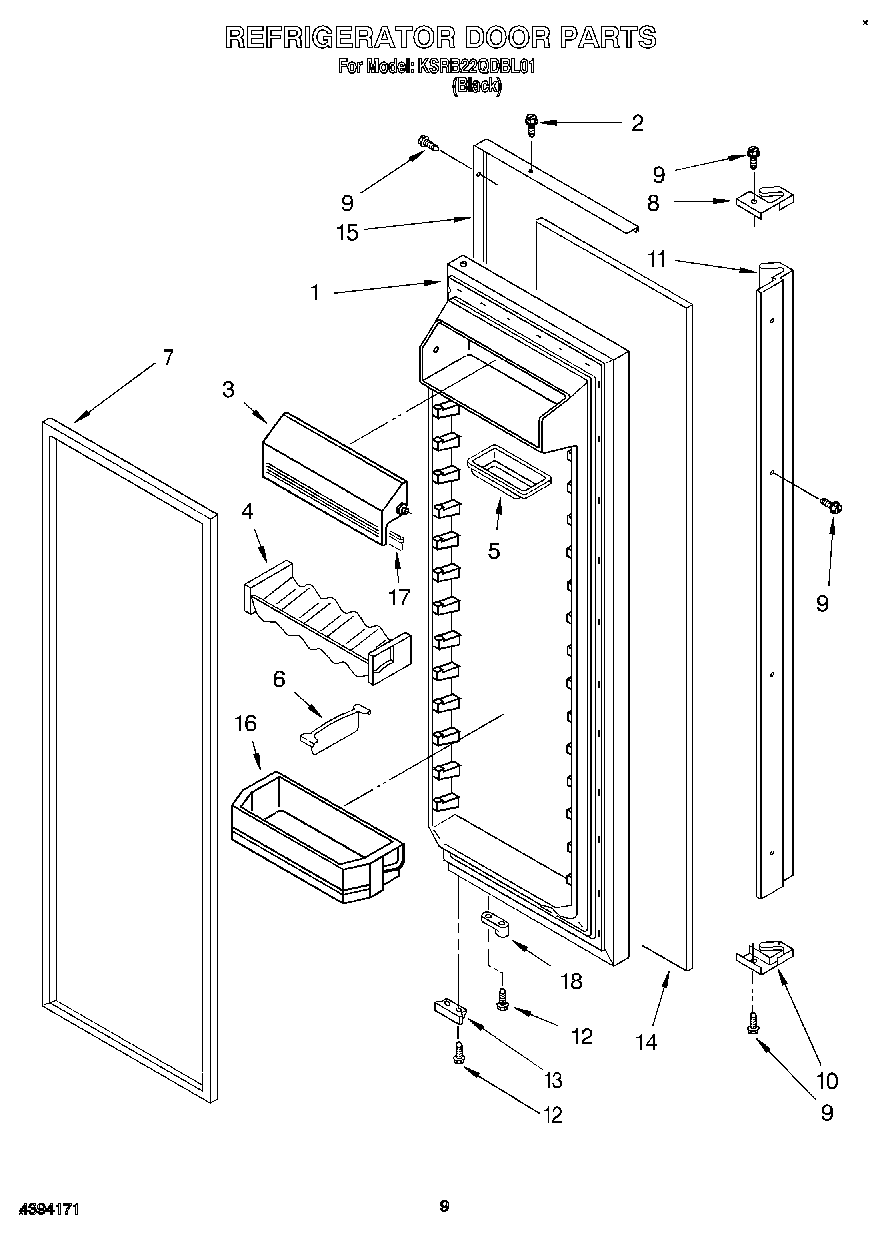

KSRB22QDBL01 06 – REFRIGERATOR DOORadmin2025-04-26T11:29:28+00:00KSRB22QDBL01 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes No.7) |
| 2 | Screw (10) |
| 3 | Door, Compartment |
| 4 | WPL 1125981 |
| 5 | Butter, Tray |
| 6 | Divider, Door Bin (2) |
| 7 | 2159081 Whirlpool Refrigerator Door Gasket |
| 8 | End Cap, Bottom |
| 9 | Screw, 6-32 x 1/2 |
| 10 | End Cap, Top |
| 11 | Handle Assembly |
| 12 | WP489483 Whirlpool Screw |
| 13 | Bracket, Door Stop |
| 14 | Black Glass |
| 15 | Trim, Door |
| 16 | Bin, Door Shelf |
| 17 | Gasket, Door Compartment |
| 18 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
