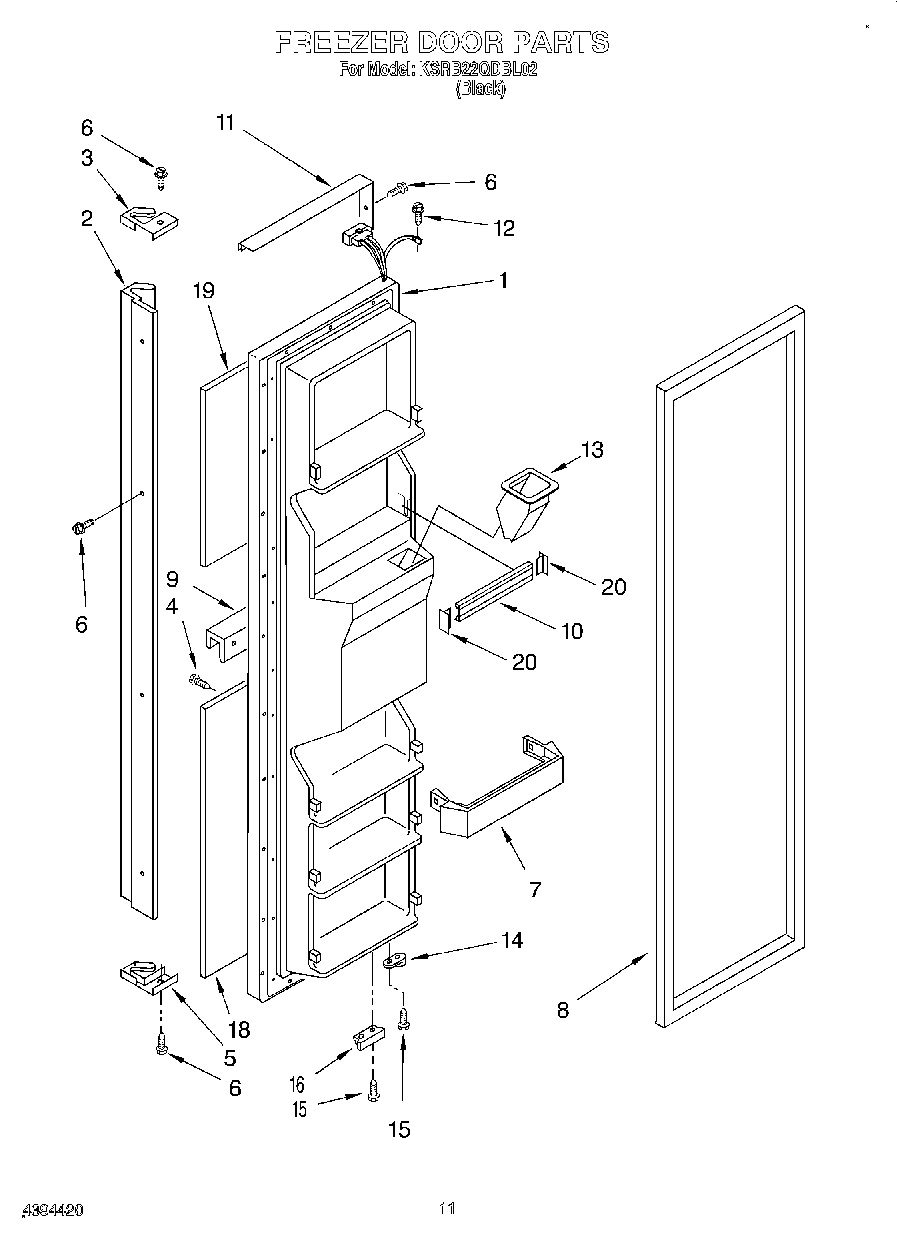

KSRB22QDBL02 07 – FREEZER DOOR

KSRB22QDBL02 07 – FREEZER DOOR

Written by

in

KSRB22QDBL02 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts)
2Handle Assembly
3End Cap, Top
4Screw
5End Cap, Bottom
6Screw
7Trivet, Shelf (4)
82159080 Whirlpool Refrigerator Door Gasket
9Trim, Dispenser
10WPW10307490 Whirlpool Door Trim Assembly
11Trim, Door
12WP488234 Whirlpool Air Conditioner Screw
13Chute, Ice
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP489483 Whirlpool Screw
16Bracket, Door Stop
18Black Glass, Lower
19Black Glass, Upper
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
