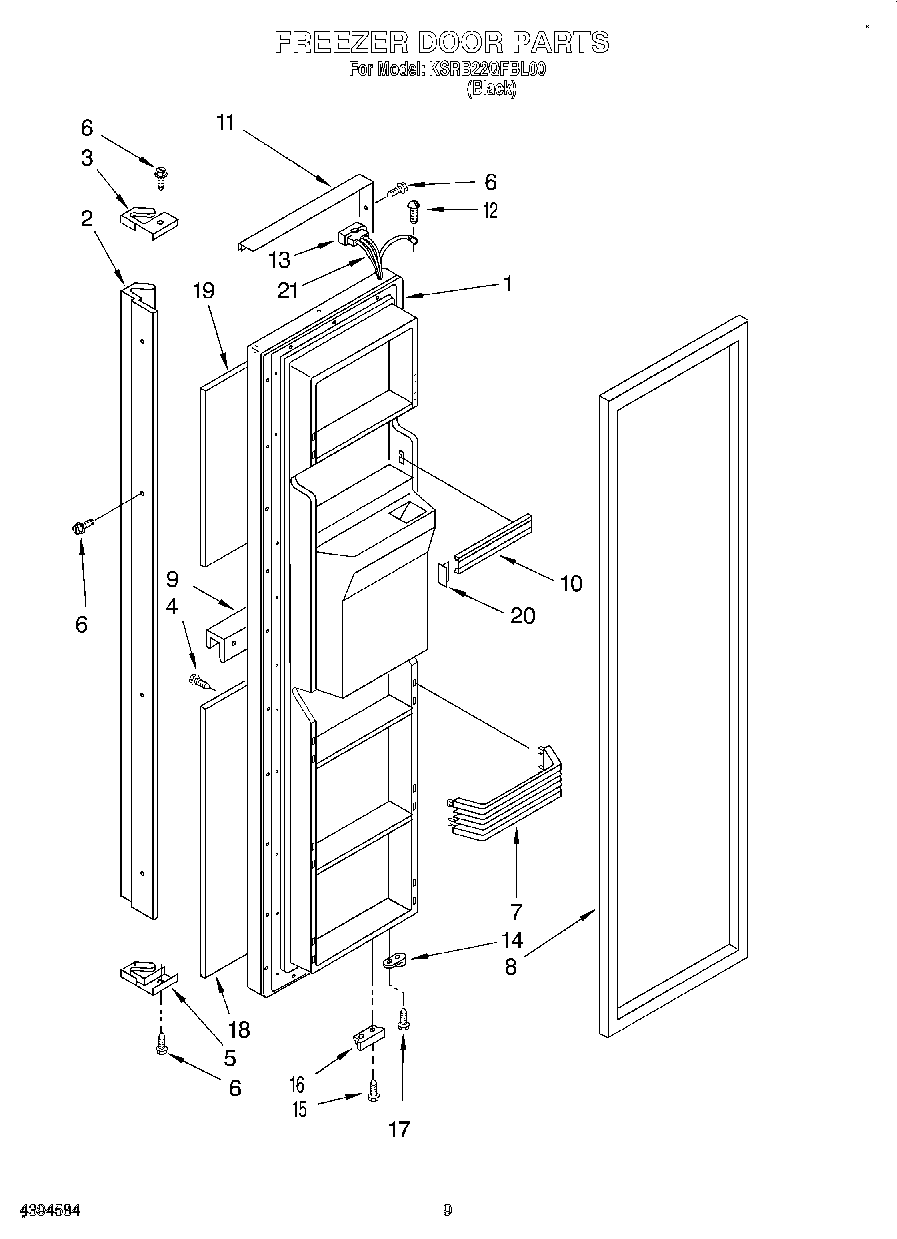

KSRB22QFBL00 06 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts)
2	Handle
3	End Cap, Bottom
4	Screw
5	End Cap, Top
6	Screw
7	Trivet, Shelf (4)
8	2159080 Whirlpool Refrigerator Door Gasket
9	Trim, Dispenser
10	WPW10307490 Whirlpool Door Trim Assembly
11	Trim, Door
12	WP488234 Whirlpool Air Conditioner Screw
13	WP2154473 Whirlpool Refrigerator Connector
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Black)
17	WP3400012 Whirlpool Refrigerator Screw
18	Black Glass, Lower
19	Black Glass, Upper
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	Wire Harness
