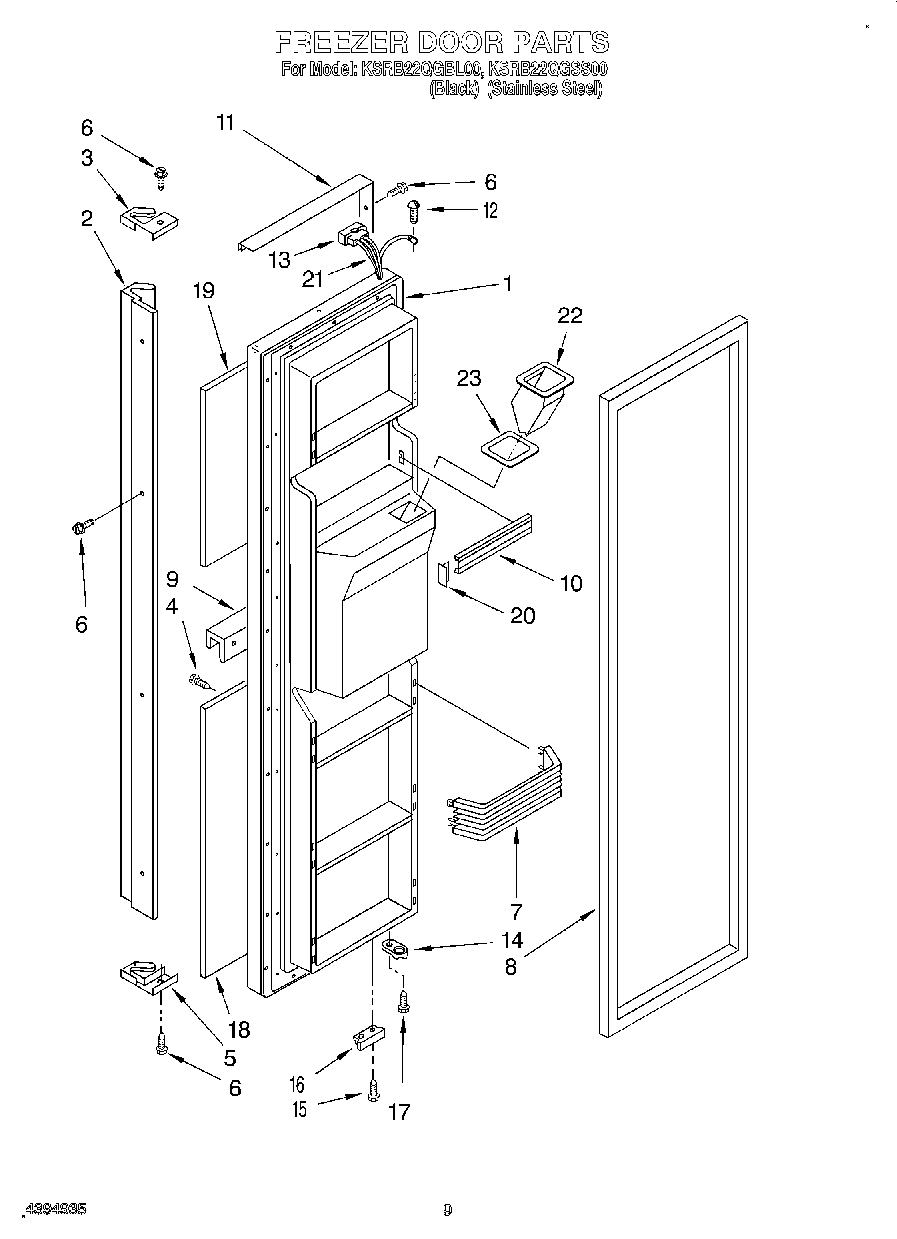

KSRB22QGBL00 06 – FREEZER DOOR

KSRB22QGBL00 06 – FREEZER DOOR

Written by

in

KSRB22QGBL00 06 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts)
2Handle
3End Cap, Bottom
4Screw
5End Cap, Top
6Screw
7Trivet, Shelf (4)
82159080 Whirlpool Refrigerator Door Gasket
9Trim, Dispenser
10WPW10307490 Whirlpool Door Trim Assembly
11Trim, Door
12WP489069 Whirlpool Compactor Screw
13WP2154473 Whirlpool Refrigerator Connector
144318165 Whirlpool Refrigerator Door Closure Cam Kit
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Chrome)
16Bracket, Door Stop (Black)
17WP3400012 Whirlpool Refrigerator Screw
18Panel, Lower (Stainless Steel)
18Black Glass, Lower
19Black Glass, Upper
19Panel, Upper (Stainless Steel)
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21Wire Harness
22Chute, Ice
23Seal, Housing
