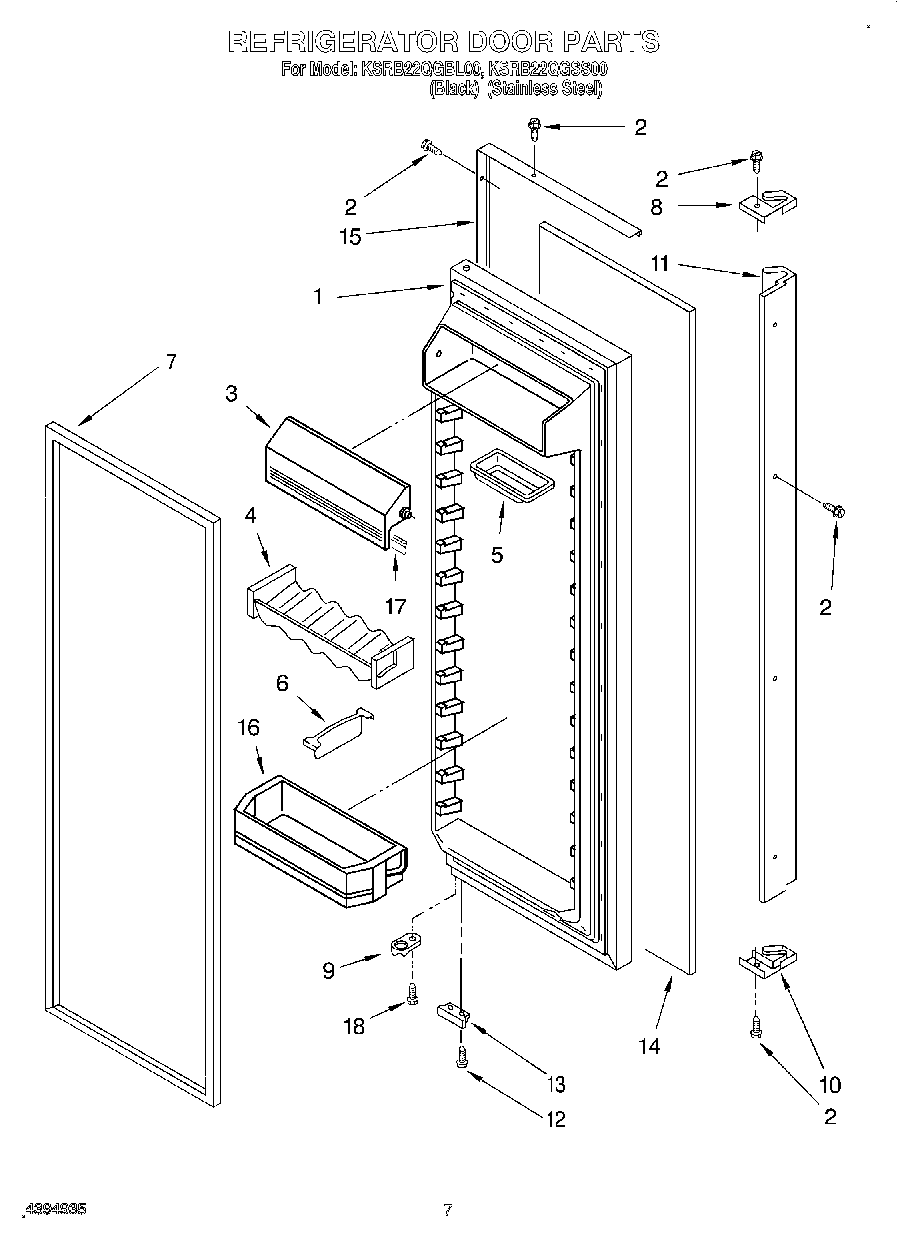

KSRB22QGSS00 05 – REFRIGERATOR DOOR

KSRB22QGSS00 05 – REFRIGERATOR DOOR

Written by

in

KSRB22QGSS00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.7)
2Screw
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Divider, Bin
72159081 Whirlpool Refrigerator Door Gasket
8End Cap, Top
94318165 Whirlpool Refrigerator Door Closure Cam Kit
10End Cap, Bottom
11Handle
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Black)
13Bracket, Door Stop (Chrome)
14Black Glass
14Panel (Stainless Steel)
15Trim, Door
16Bin, Door Shelf
17Gasket, Door Compartment
18WP3400012 Whirlpool Refrigerator Screw
