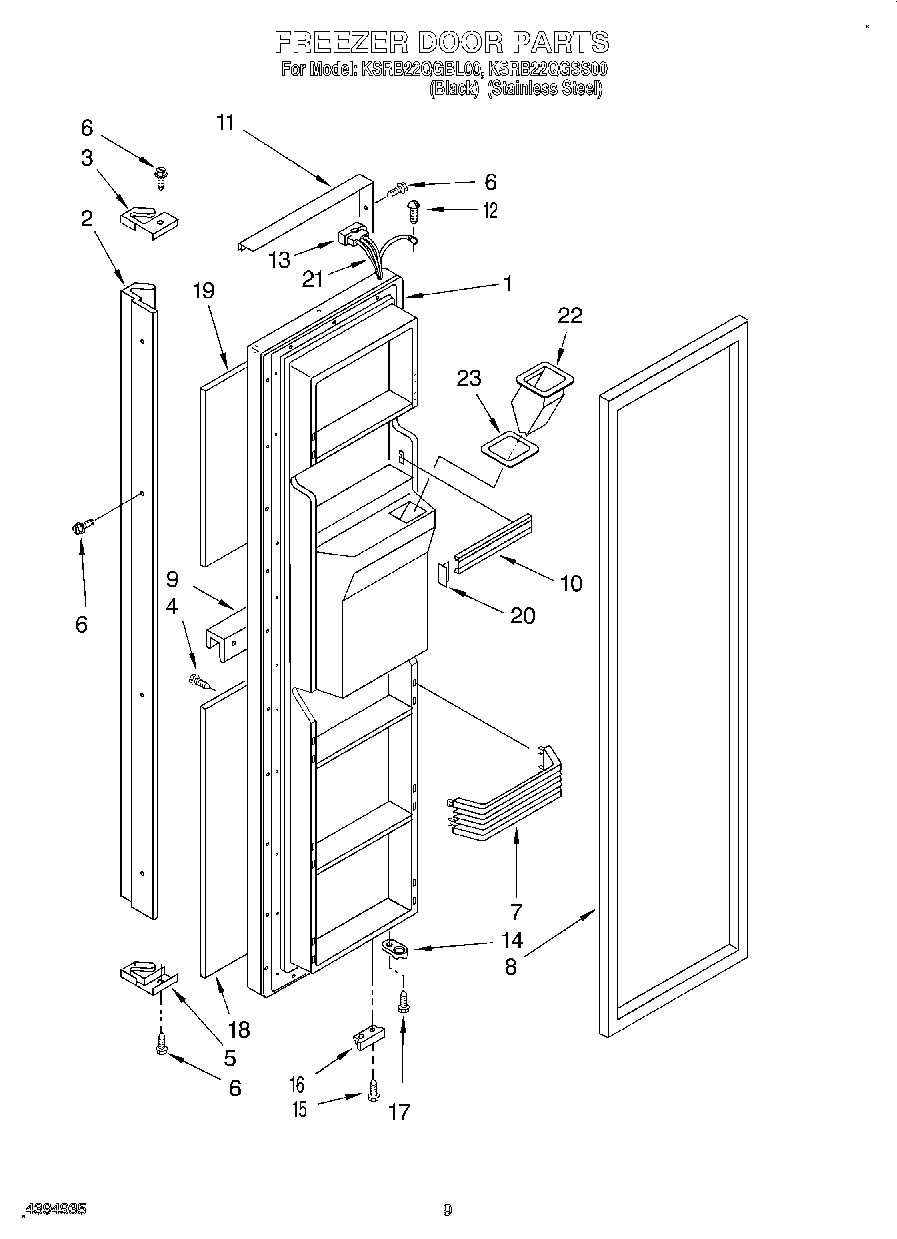

KSRB22QGSS00 06 – FREEZER DOOR

Written by

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts)
2	Handle
3	End Cap, Bottom
4	Screw
5	End Cap, Top
6	Screw
7	Trivet, Shelf (4)
8	2159080 Whirlpool Refrigerator Door Gasket
9	Trim, Dispenser
10	WPW10307490 Whirlpool Door Trim Assembly
11	Trim, Door
12	WP489069 Whirlpool Compactor Screw
13	WP2154473 Whirlpool Refrigerator Connector
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Chrome)
16	Bracket, Door Stop (Black)
17	WP3400012 Whirlpool Refrigerator Screw
18	Panel, Lower (Stainless Steel)
18	Black Glass, Lower
19	Black Glass, Upper
19	Panel, Upper (Stainless Steel)
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	Wire Harness
22	Chute, Ice
23	Seal, Housing
