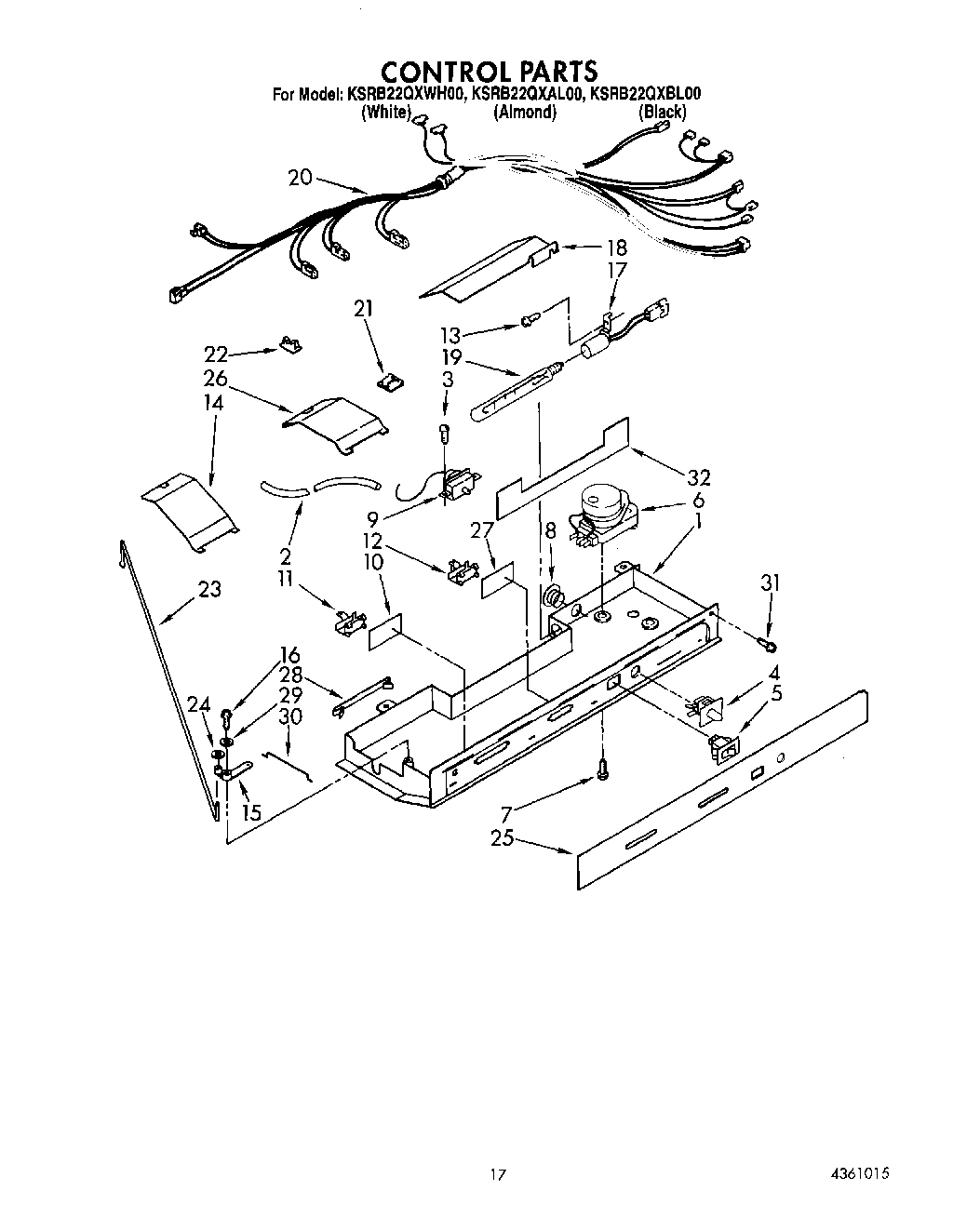

KSRB22QXBL00 12 – CONTROLadmin2025-04-26T11:29:38+00:00KSRB22QXBL00 12 – CONTROL ProductsPositionProduct1Control Box2WP2196003 Whirlpool Refrigerator Bar Riser32006254 Whirlpool Refrigerator Screw4WP2149705 Whirlpool Refrigerator Door Switch5Switch, Toggle6Defrost Timer, (10 Hr.)7489392 Whirlpool Refrigerator Screw8940014 Whirlpool Refrigerator Primary Button Plug9Thermostat Assembly10Window11Slide, Air Control12Slide, Thermostat14Light Bar15Pivot Arm16627068 Whirlpool Refrigerator Screw17Light Socket18Heat Shield19WP548049 Whirlpool Refrigerator Light Bulb20Control Box Harness21WP1115374 Whirlpool Refrigerator Clip22CLIP, WIRING23Connecting Rod24Fastener, Push-On25Escutcheon, Control Box26Light Bar27Window28Clip, Control Box29489203 Whirlpool Refrigerator Washer30Connecting Rod (Short)31WP489478 Whirlpool Refrigerator Screw32Heat Shield
