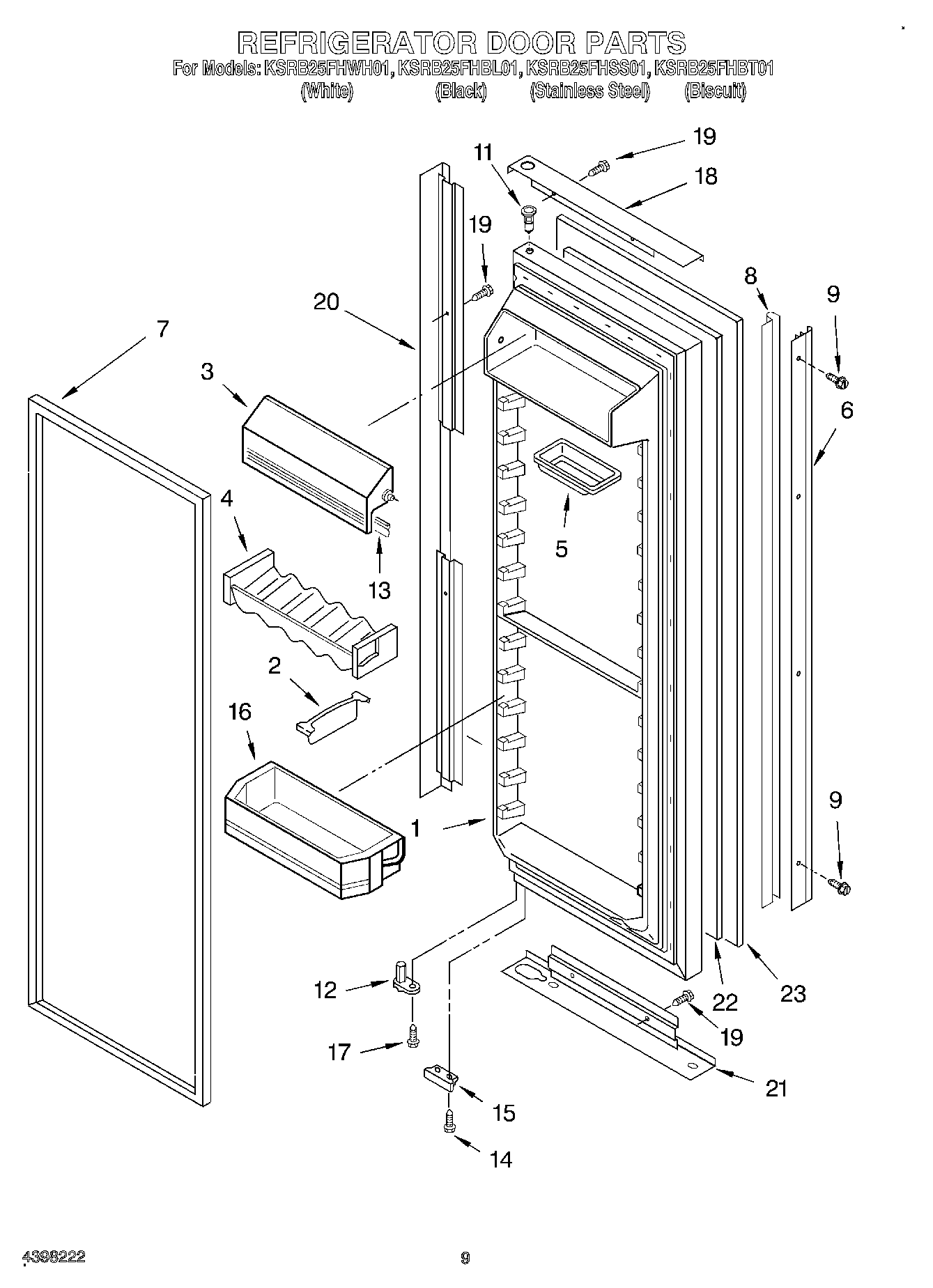

KSRB25FHSS01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (Includes No.7) (Black)
1	Refrigerator Door (Includes No.7) (Biscuit)
1	Refrigerator Door (Includes No.7) (White)
2	Divider, Bin
3	WP2313637 Whirlpool Cutting Grid Assembly
4	Beverage Holder
5	Butter Tray
6	Handle, Center
6	Handle (Black)
6	Handle (Biscuit)
6	Handle (White)
7	2159083 Whirlpool Gasket Door
7	2159075 Whirlpool Door Gasket Seal
8	Edging, Panel (Black)
8	Edging, Panel (Biscuit)
8	Edging, Panel (White)
9	Screw
9	Screw (Black)
9	Screw (Biscuit)
9	Screw (White)
11	WP2182181 Whirlpool Refrigerator Thimble
12	WP2182179 Whirlpool Cam Closer
13	Gasket, Door Compartment
14	WP489483 Whirlpool Screw
15	Bracket, Door Stop (Black)
15	Bracket, Door Stop (Chrome)
16	Bin, Door Shelf
17	WP3400012 Whirlpool Refrigerator Screw
18	Trim, Door (Top) (Black)
18	Trim, Door (Top) (Biscuit)
18	Trim, Door (Top) (White)
18	Trim, Door (Top)
19	WP3196557 Whirlpool Screw
20	Trim, Door (Side)
20	Trim, Door (Hinge Side) (Biscuit)
20	Trim, Door (Hinge Side) (Black)
20	Trim, Door (Hinge Side) (White)
21	Trim, Door (Bottom)
21	Trim, Door (Bottom) (Biscuit)
21	Trim, Door (Bottom) (White)
21	Trim, Door (Bottom) (Black)
22	Filler, Panel
23	Panel
23	Panel (Biscuit)
23	Panel (White)
23	Panel (Black)
