KSRB25FHSS05 07 – FREEZER DOOR

KSRB25FHSS05 07 – FREEZER DOOR

Written by

in

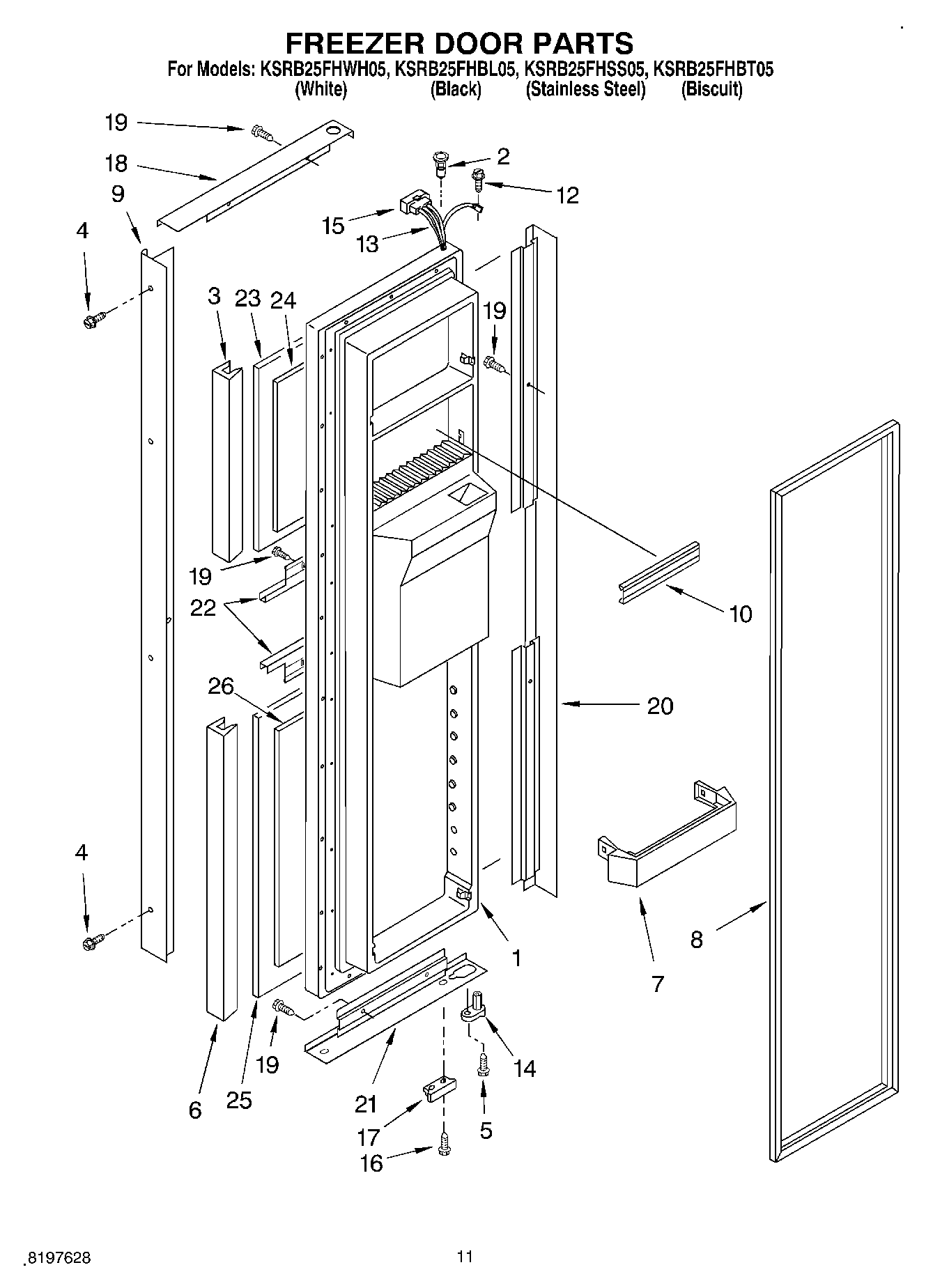

KSRB25FHSS05 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (White)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Biscuit)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless Steel)
2WP2182181 Whirlpool Refrigerator Thimble
3Edging, Bottom (Biscuit)
3Edging, Bottom (White)
3Edging, Bottom (Black)
4Screw (Biscuit)
4Screw (White)
4Screw (Black)
4Screw
5WP3400012 Whirlpool Refrigerator Screw
6Edging, Panel (Black)
6Edging, Panel (Biscuit)
6Edging, Panel (White)
7Shelf Bin (4)
82159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
9Handle (Black)
9Handle (Biscuit)
9Handle (White)
9Handle, Center
10WPW10307490 Whirlpool Door Trim Assembly
12WP489128 Whirlpool Refrigerator Screw
13Wire Harness
14WP2182179 Whirlpool Cam Closer
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop (Chrome)
17Bracket, Door Stop (Black)
18Trim, Door (Top) (White)
18Trim, Door (Top) (Biscuit)
18Trim, Door (Top) (Black)
18Trim, Door (Top)
19WP3196557 Whirlpool Screw
20Trim, Door (Hinge Side) (White)
20Trim, Door (Hinge Side) (Black)
20Trim, Door (Hinge Side) (Biscuit)
20Trim, Door (Side)
21Tri
21Trim, Door (Bottom) (Biscuit)
21Trim, Door (Bottom) (Black)
21Trim, Door (Bottom)
22WPL 2186702B
22WPL 2186702W
22Trim, Door (Dispenser, Top & Bottom)
22WPL 2186702T
23WPL 2203284T
23WPL 2203284B
23WPL 2203284W
23Panel, Upper
24Filler, Panel (Upper)
25WPL 2203286B
25WPL 2203286T
25WPL 2203286W
25Panel, Lower
26Filler, Panel (Lower)
