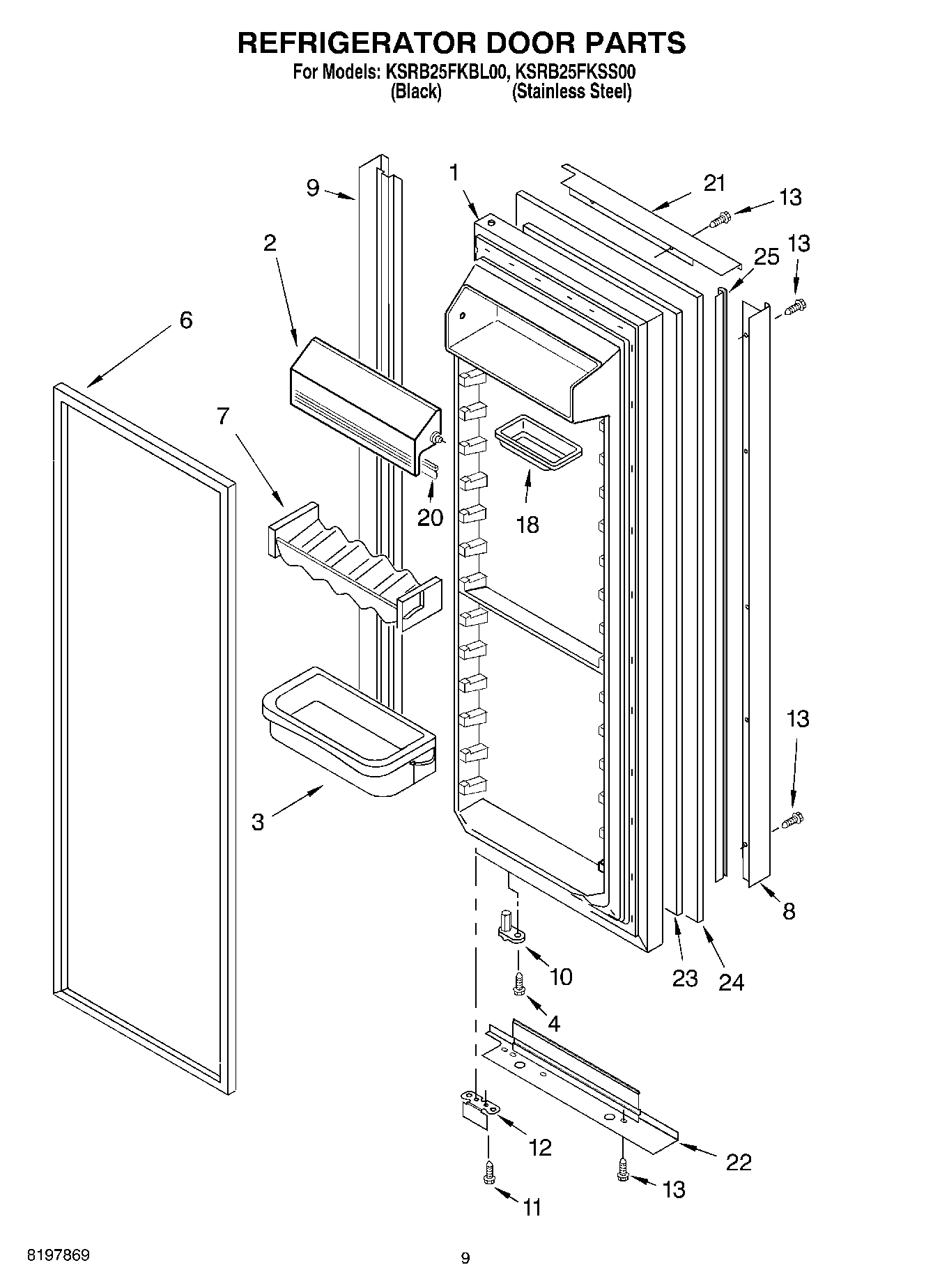

KSRB25FKBL00 06 – REFRIGERATOR DOORadmin2025-04-26T12:17:21+00:00KSRB25FKBL00 06 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes Item 6) (Black) |
| 2 | WP2313637 Whirlpool Cutting Grid Assembly |
| 3 | Shelf Bin (3) |
| 4 | WP3400012 Whirlpool Refrigerator Screw |
| 6 | 2159083 Whirlpool Gasket Door |
| 7 | Beverage Holder |
| 8 | Handle (Black) |
| 8 | Handle (Stainless Steel) |
| 9 | Trim, Hinge Side (Black) |
| 9 | Trim, Hinge Side (Stainless Steel) |
| 10 | WP2182179 Whirlpool Cam Closer |
| 11 | WP489483 Whirlpool Screw |
| 12 | Bracket, Door Stop (Black) |
| 13 | WP8281250 Whirlpool Refrigerator Screw |
| 13 | W10851443 Whirlpool Refrigerator Screw |
| 18 | Butter Tray |
| 20 | Gasket, Door Compartment |
| 21 | Trim, Door Top (Black) |
| 21 | Trim, Door Top (Stainless Steel) |
| 22 | Trim, Door Bottom (Black) |
| 22 | Trim, Door Bottom (Stainless Steel) |
| 23 | Filler Board |
| 24 | Panel, Door (Black) |
| 24 | Panel, Door (Stainless Steel) |
| 25 | Egding, Panel (Black) |
