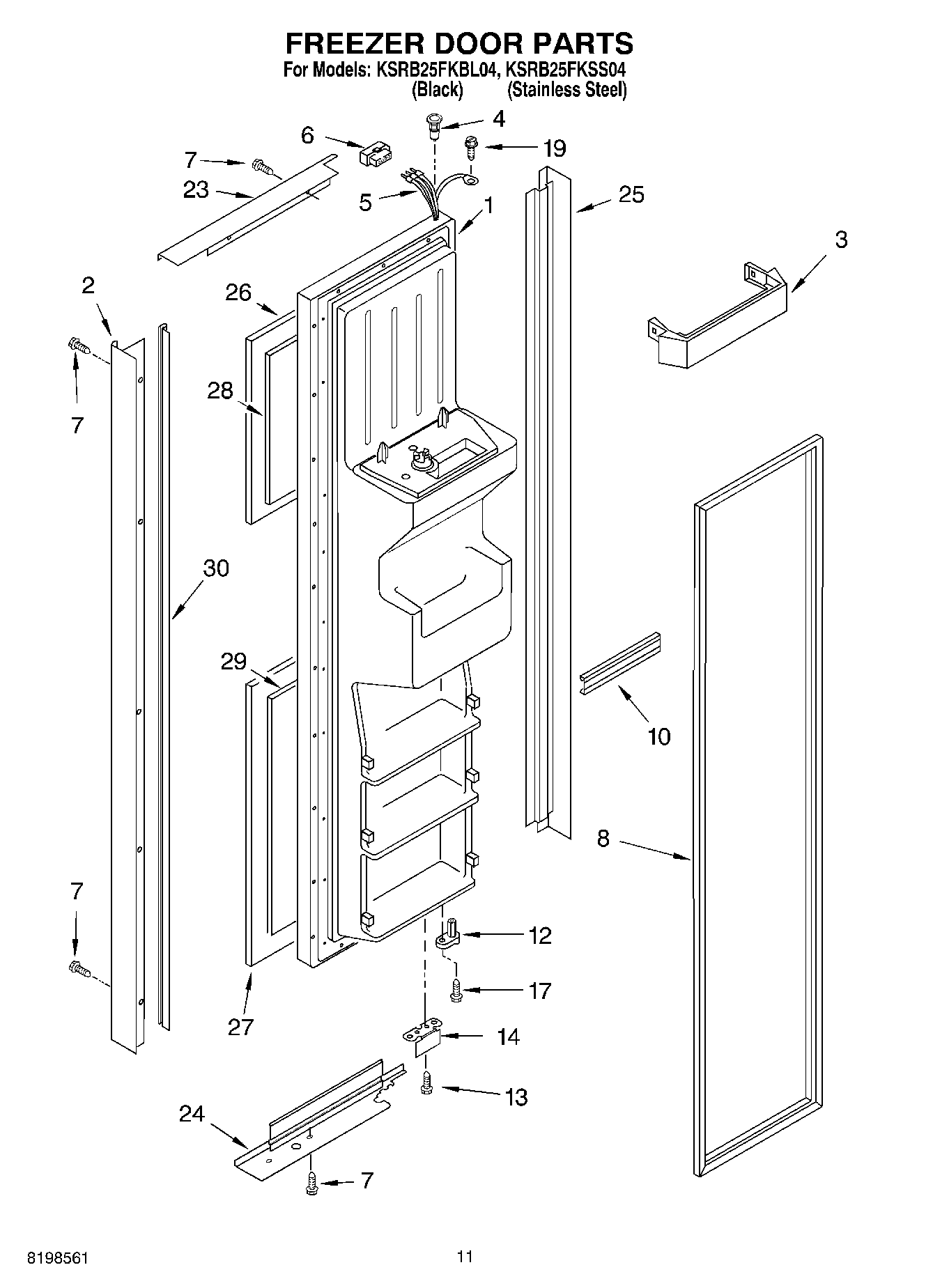

KSRB25FKBL04 07 – FREEZER DOOR PARTSadmin2025-04-26T12:18:17+00:00KSRB25FKBL04 07 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes 8 And Dispenser Front Parts) (Black) |
| 2 | Handle (Black) |
| 2 | Handle (Stainless Steel) |
| 3 | Shelf Bin (4) |
| 4 | WP2182181 Whirlpool Refrigerator Thimble |
| 5 | Dispenser Harness |
| 6 | WP2154473 Whirlpool Refrigerator Connector |
| 7 | Screw (Black) |
| 7 | Screw |
| 8 | 2159082 Whirlpool Freezer Door Gasket Black |
| 10 | WPW10307490 Whirlpool Door Trim Assembly |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop (Black) |
| 17 | WP3400012 Whirlpool Refrigerator Screw |
| 19 | WP489128 Whirlpool Refrigerator Screw |
| 23 | Trim, Door Top (Black) |
| 23 | Trim, Door Top (Stainless Steel) |
| 24 | Trim, Door Bottom (Black) |
| 24 | Trim, Door Bottom (Stainless Steel) |
| 25 | Trim, Hinge Side (Black) |
| 25 | Trim, Hinge Side (Stainless Steel) |
| 26 | Panel, Door Upper (Black) |
| 26 | Panel, Door Upper (Stainless Steel) |
| 27 | Panel, Door Lower (Stainless Steel) |
| 27 | Panel, Door Lower (Black) |
| 28 | Filler, Board Upper |
| 29 | Filler, Board Lower |
| 30 | Egding, Panel (Black) |
