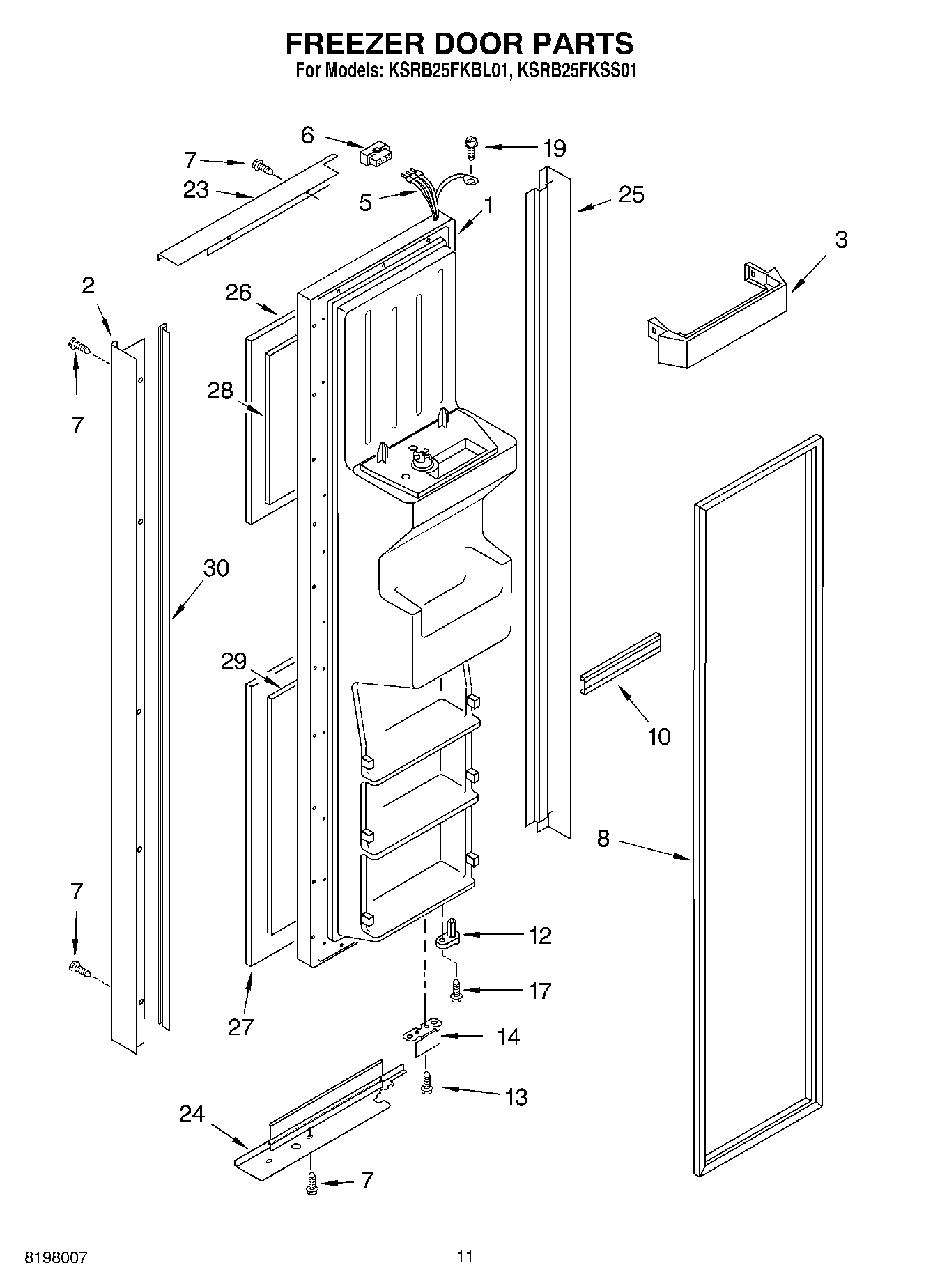

KSRB25FKSS01 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle (Stainless Steel)
2	Handle (Black)
3	Shelf Bin (4)
5	Dispenser Harness
6	WP2154473 Whirlpool Refrigerator Connector
7	W10851443 Whirlpool Refrigerator Screw
7	WP8281250 Whirlpool Refrigerator Screw
8	2159082 Whirlpool Freezer Door Gasket Black
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
17	WP3400012 Whirlpool Refrigerator Screw
19	WP489128 Whirlpool Refrigerator Screw
23	Trim, Door Top (Black)
23	Trim, Door Top (Stainless Steel)
24	Trim, Door Bottom (Black)
24	Trim, Door Bottom (Stainless Steel)
25	Trim, Hinge Side (Black)
25	Trim, Hinge Side (Stainless Steel)
26	Panel, Door Upper (Stainless Steel)
26	Panel, Door Upper (Black)
27	Panel, Door Lower (Stainless Steel)
27	Panel, Door Lower (Black)
28	Filler, Board Upper
29	Filler, Board Lower
30	Egding, Panel (Black)
