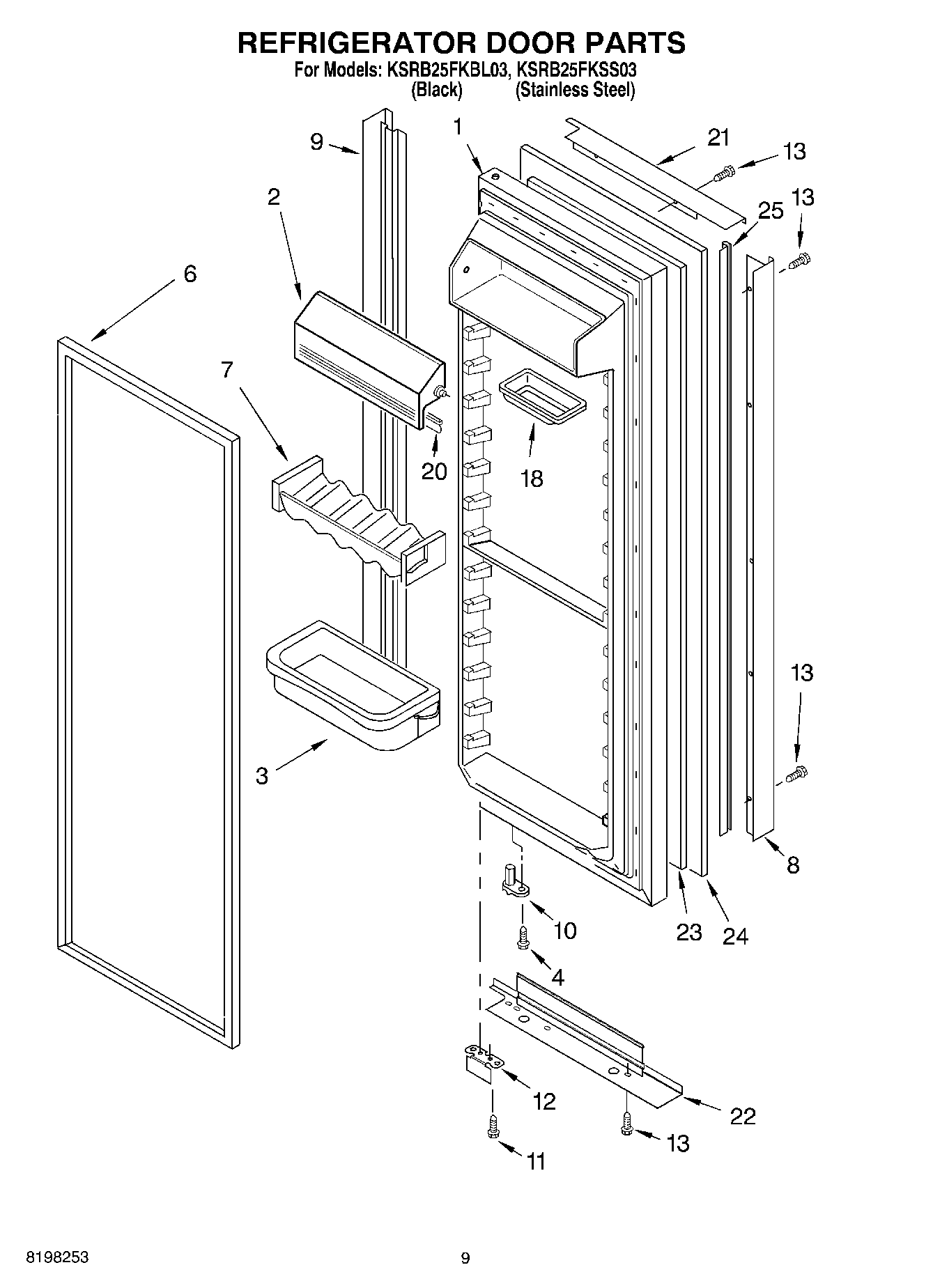

KSRB25FKSS03 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 6) (Black)
2	WP2313637 Whirlpool Cutting Grid Assembly
3	Shelf Bin (3)
4	WP3400012 Whirlpool Refrigerator Screw
6	2159083 Whirlpool Gasket Door
7	Beverage Holder
8	Handle (Stainless Steel)
8	Handle (Black)
9	Trim, Hinge Side (Black)
9	Trim, Hinge Side (Stainless Steel)
10	WP2182179 Whirlpool Cam Closer
11	WP489483 Whirlpool Screw
12	Bracket, Door Stop (Black)
13	Screw (Black)
13	Screw
18	Butter Tray
20	Gasket, Door Compartment
21	Trim, Door Top (Stainless Steel)
21	Trim, Door Top (Black)
22	Trim, Door Bottom (Black)
22	Trim, Door Bottom (Stainless Steel)
23	Filler Board
24	Panel, Door (Black)
24	Panel, Door (Stainless Steel)
25	Egding, Panel (Black)
