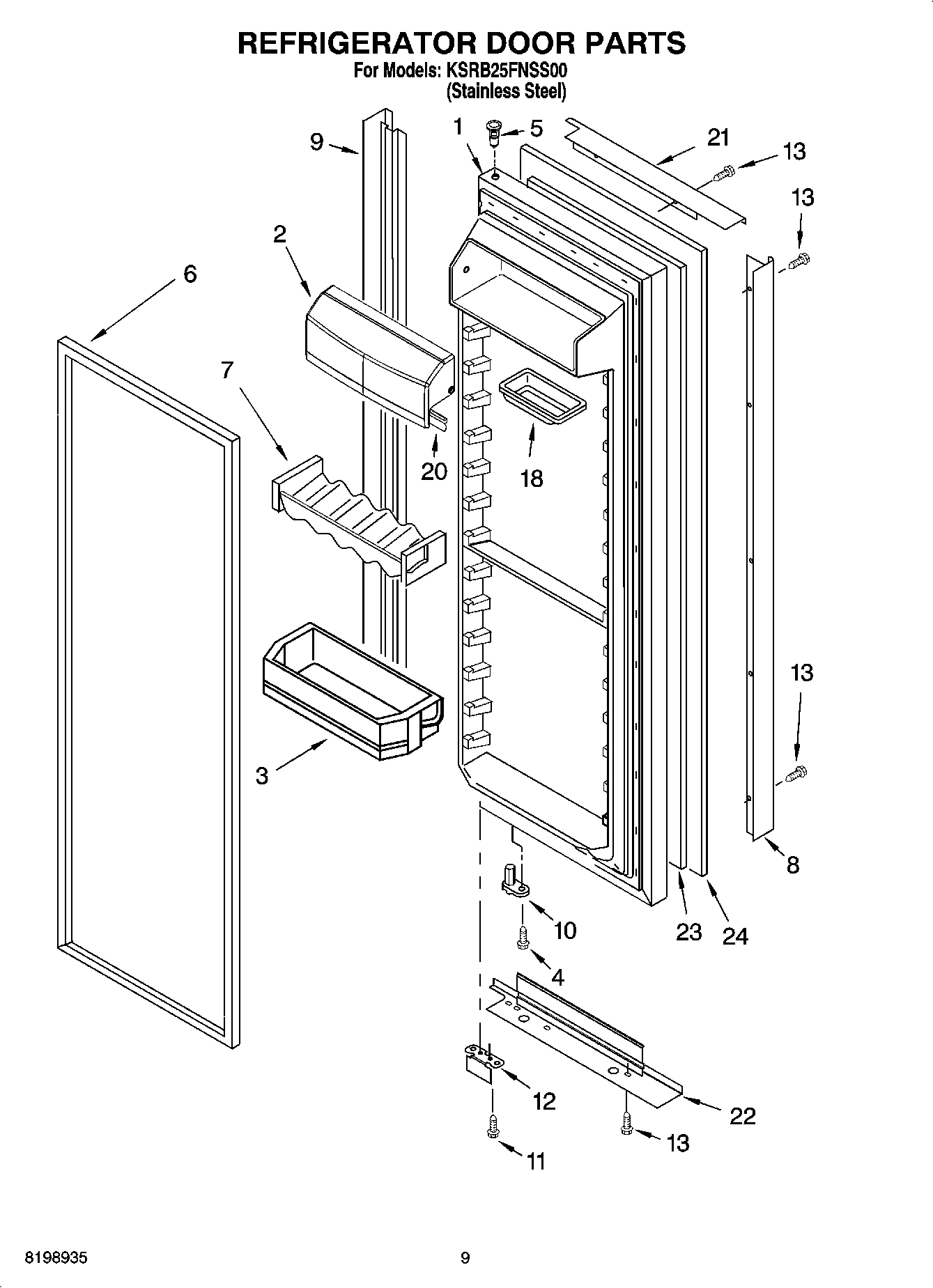

KSRB25FNSS00 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (Black)
2Door, Compartment
3Shelf Bin (3)
4WP3400012 Whirlpool Refrigerator Screw
5WP2182181 Whirlpool Refrigerator Thimble
62159083 Whirlpool Gasket Door
7Beverage Holder
8Handle (Stainless Steel)
9Trim, Hinge Side (Stainless Steel)
10WP2182179 Whirlpool Cam Closer
11WP489483 Whirlpool Screw
12Bracket, Door Stop (Black)
13WP3196175 Whirlpool Screw
18Butter Tray
20Gasket, Door Compartment
21Trim, Door Top (Stainless Steel)
22Trim, Door Bottom (Stainless Steel)
23Filler Board
24Panel, Door (Stainless Steel)
