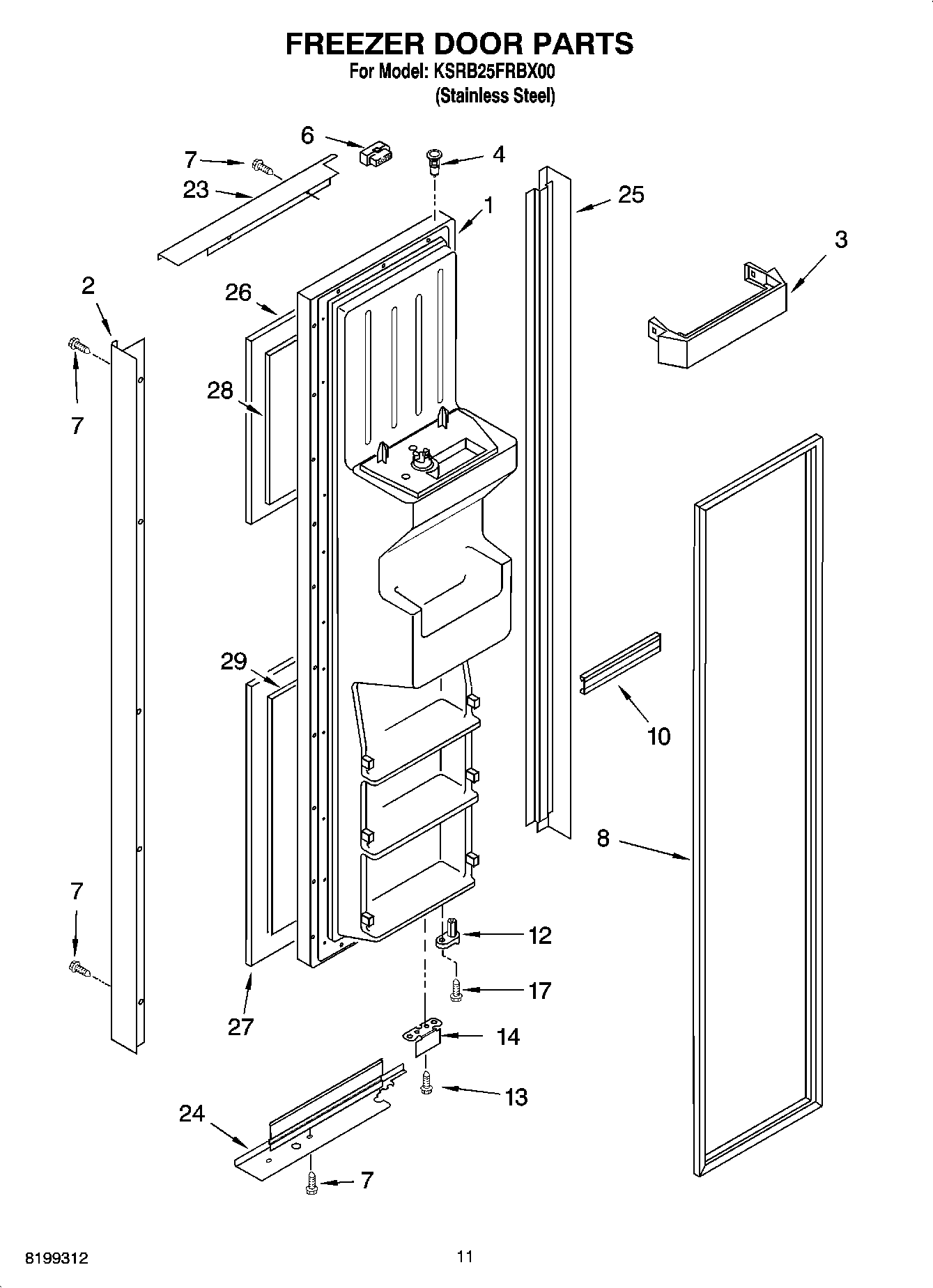

KSRB25FRBX00 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2	Handle (Stainless Steel)
3	Shelf Bin (4)
4	WP2182181 Whirlpool Refrigerator Thimble
6	WP2154473 Whirlpool Refrigerator Connector
7	WP3196175 Whirlpool Screw
8	2159082 Whirlpool Freezer Door Gasket Black
10	WPW10307490 Whirlpool Door Trim Assembly
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
17	WP3400012 Whirlpool Refrigerator Screw
23	Trim, Door Top (Stainless Steel)
24	Trim, Door Bottom (Stainless Steel)
25	Trim, Hinge Side (Stainless Steel)
26	Panel, Door Upper (Stainless Steel)
27	Panel, Door Lower (Stainless Steel)
28	Filler, Board Upper
29	Filler, Board Lower
