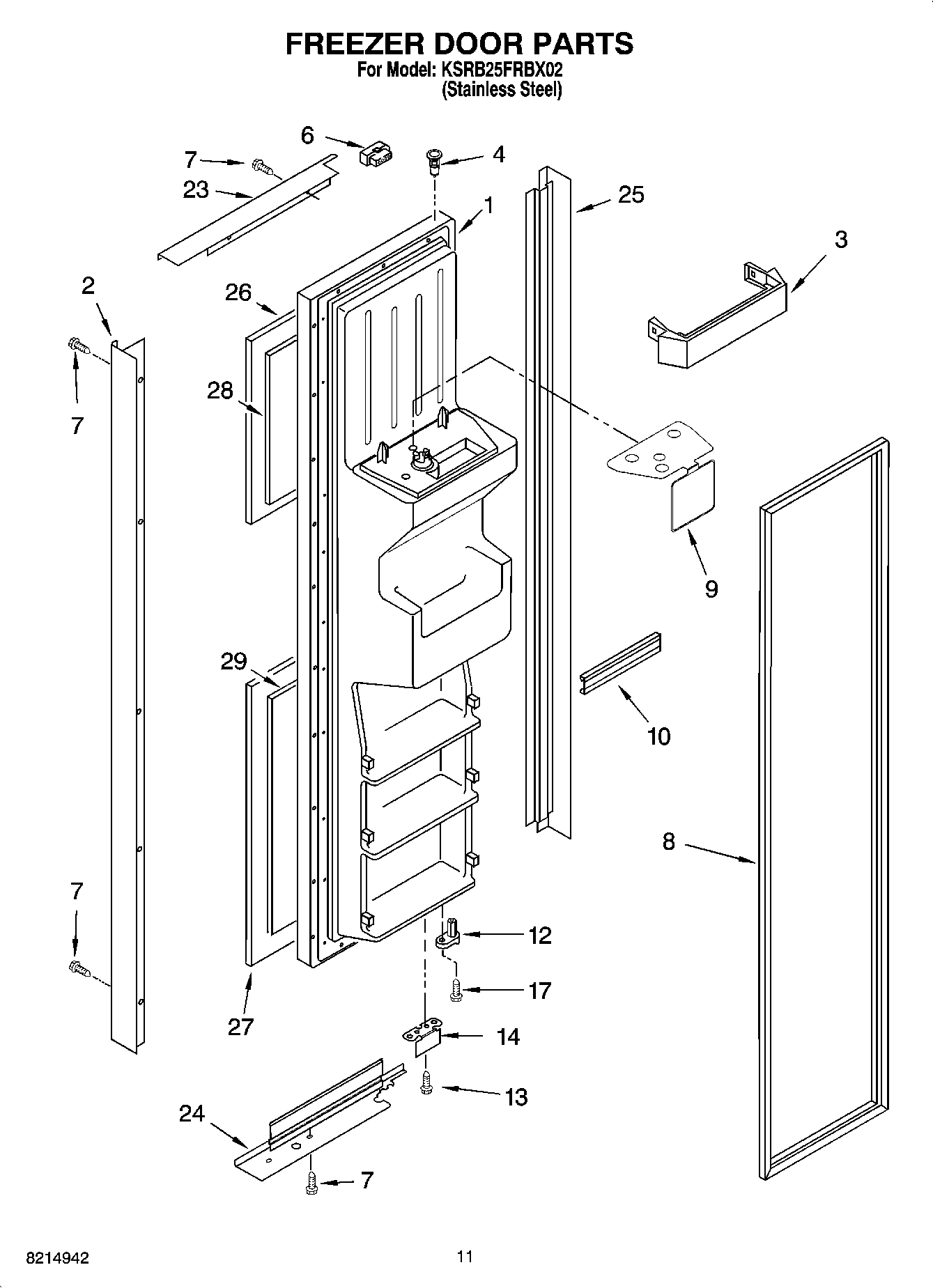

KSRB25FRBX02 07 – FREEZER DOOR PARTS

KSRB25FRBX02 07 – FREEZER DOOR PARTS

Written by

in

KSRB25FRBX02 07 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes 8 And Dispenser Front Parts) (Black)
2Handle (Stainless Steel)
3Shelf Bin (3)
4WP2182181 Whirlpool Refrigerator Thimble
6WP2154473 Whirlpool Refrigerator Connector
7WP3196175 Whirlpool Screw
82159082 Whirlpool Freezer Door Gasket Black
9Safety Barrier
10WPW10307490 Whirlpool Door Trim Assembly
12WP2182179 Whirlpool Cam Closer
13WP489483 Whirlpool Screw
14Bracket, Door Stop (Black)
17WP3400012 Whirlpool Refrigerator Screw
23Trim, Door Top (Stainless Steel)
24Trim, Door Bottom (Stainless Steel)
25Trim, Hinge Side (Stainless Steel)
26Panel, Door Upper (Stainless Steel)
27Panel, Door Lower (Stainless Steel)
28Filler, Board Upper
29Filler, Board Lower
