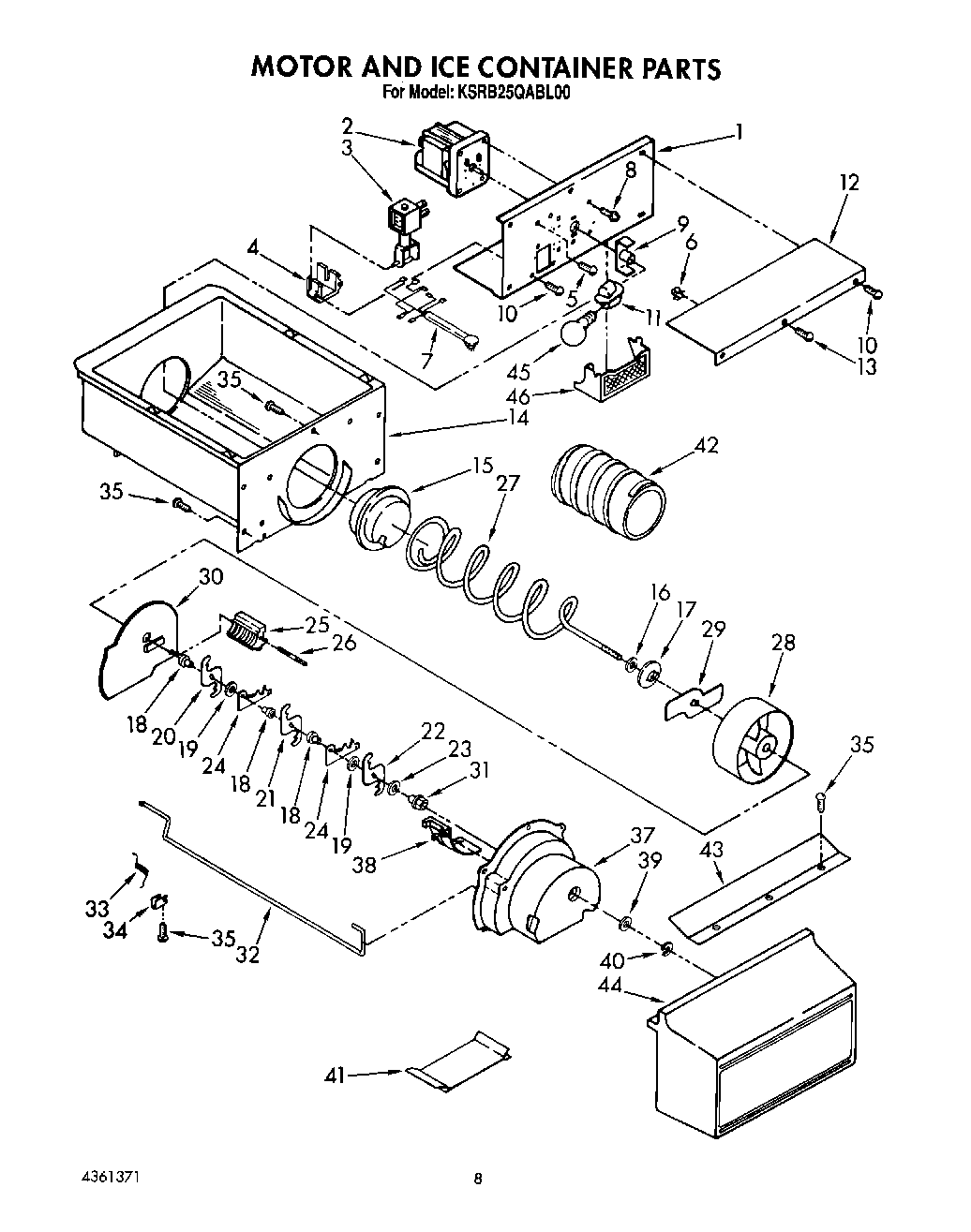

KSRB25QABL00 06 – MOTOR AND ICE CONTAINER, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2161585
Modular Icemaker Service Sheet
WPL LIT4361371
Torx Key
WPL LIT2161900
WPL LIT2155177
Refrigerator
1Bracket, Motor
2WP2188242 Whirlpool Refrigerator Motor
3WP2152713 Whirlpool Refrigerator Solenoid
4W10850503 Whirlpool Refrigerator Guide
5Screw (2)
6WP1115374 Whirlpool Refrigerator Clip
7Wiring Assembly, Ice Dispenser
8303776 Whirlpool Dishwasher Screw
9COUPLING AUGER MOTOR
10WP489478 Whirlpool Refrigerator Screw
114387478 Whirlpool Refrigerator Light Socket
12Cover, Motor
13WP489128 Whirlpool Refrigerator Screw
14WPW10670845 Whirlpool Refrigerator Ice Container
15W10749708 Whirlpool Refrigerator Coupling
16Stop, Cone
17Feeder Cone
18WP1119005 Whirlpool Refrigerator Spacer
19WP1119007 Whirlpool Refrigerator Spacer
20W10278731 Whirlpool Refrigerator Blade
21W10278732 Whirlpool Refrigerator Blade
22W10278733 Whirlpool Refrigerator Blade
23WP489235 Whirlpool Refrigerator Washer
24Blade, Fixed (2)
252157405 Whirlpool Refrigerator Blade Block
26489229 Whirlpool Refrigerator Roll Pin
27W10422851 Whirlpool Ice Maker Bucket Auger
294388736 Whirlpool Refrigerator Ice Dispenser Bucket Bin Conveyor Auger Drum
30W10852691 Whirlpool Refrigerator Baffle
31WP1119018 Whirlpool Refrigerator Bearing
32W11596045 Whirlpool Refrigerator Control Arm
331119020 Whirlpool Refrigerator Spring
341119021 Whirlpool Refrigerator Clip
35WP488787 Whirlpool Refrigerator Screw
37WPW10185018 Whirlpool Refrigerator Housing
38WP1119017 Whirlpool Refrigerator Deflector
39489234 Whirlpool Refrigerator Washer
40WP489236 Whirlpool Refrigerator Ring
41Housing Filler
424317870 Whirlpool Refrigerator Auger Sleeve
43Deflector, Ice Container
44Front Cover, Ice Container
45RANGE ONLY 40W 120V APPL BULB
46WPW10312300 Whirlpool Refrigerator Ice Container
46Lens, Dispenser Light
46Transformer (115-230 Volt)
46212643 Whirlpool Refrigerator Permagum Sealer
46WPL 799833
46WP72107 Whirlpool Touchup
46799344 Whirlpool Refrigerator Paint
4672017 Whirlpool Appliance Touch-Up Paint White
46350956 Whirlpool Spray Assembly
46350930 Whirlpool White Spray Paint
46WP505587 Whirlpool Refrigerator Sealer
46WP542638 Whirlpool Refrigerator Grease
46Almond (Uncut)
46511873 Whirlpool Refrigerator Paint
46606755 Whirlpool Refrigerator Bag
46WP503695 Whirlpool Refrigerator Sealer
46833938 Whirlpool Refrigerator Terminal
4672032 Whirlpool Touch Up Paint Black
46285006 Whirlpool Spray
46876370 Whirlpool Refrigerator Insulation
46WPL 876029
46Enamel, Black (1 Qt. Uncut)
46350942 Whirlpool Spray Paint
46CEMENT, ALUMILASTIC (1 1/4 OZ.)
46TAPE, VINYL (3/4 X 108“)
46Leveler (Thinner)
