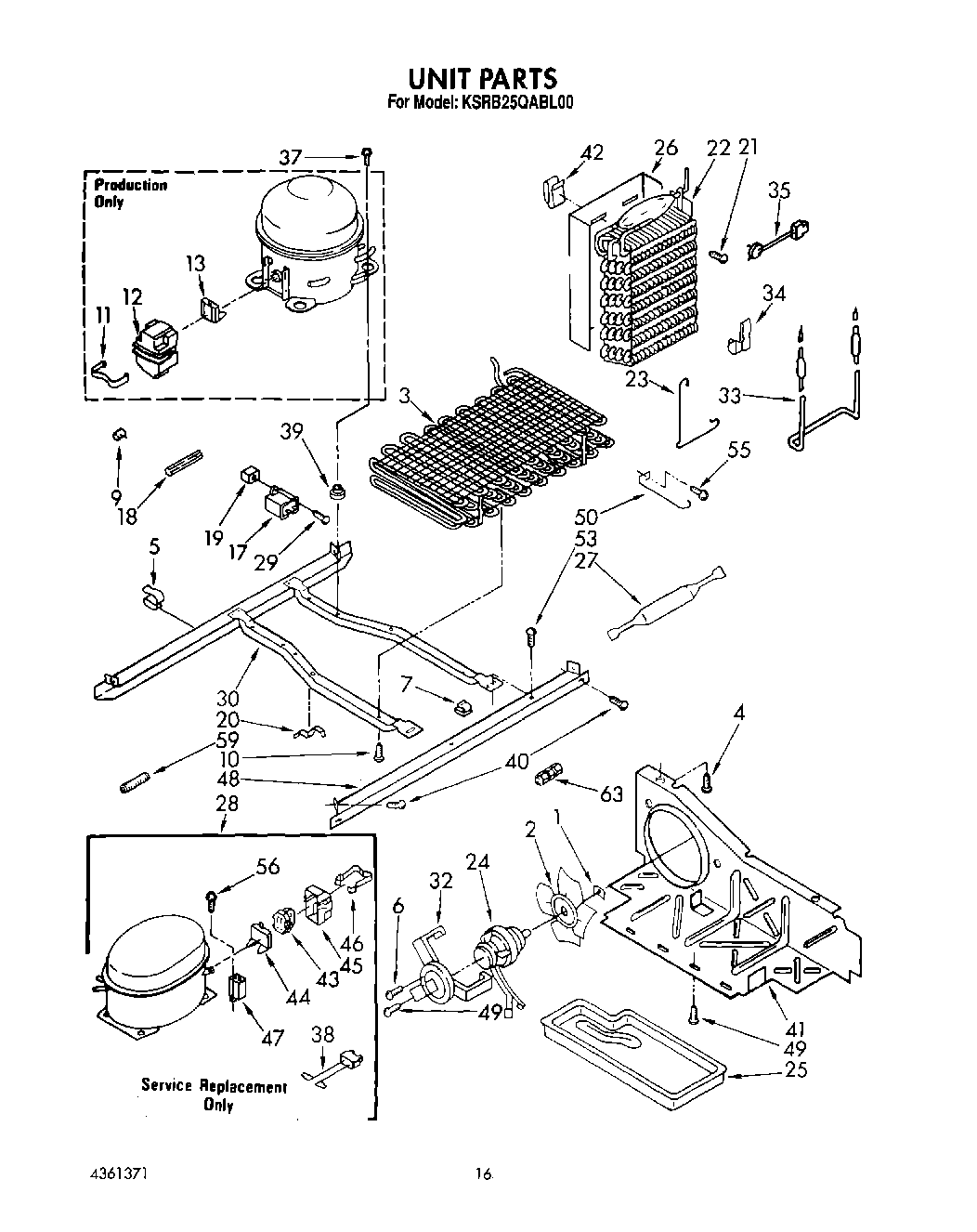

KSRB25QABL00 10 – UNIT

Written by

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Fan, Blade
3	Condenser Assembly
5	Clip, Wire
6	681390 Whirlpool Refrigerator Screw
7	Clip, Tube (3)
9	WP2158826 Whirlpool Refrigerator Dampener
11	case spring
12	Case, Relay
13	Overload (Includes Relay)
17	WPW10662129 Whirlpool Refrigerator Run Capacitor
18	SLEEVE
19	Screw Grommet
20	Clip (2)
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	Clamp
24	833697 Whirlpool Condenser Fan Motor
25	Tray, Evaporator
26	Heat Shield
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 59) (Also Order 876765 Tube Kit)
30	2304904 Whirlpool Frame Assembly
32	Fan, Motor Bracket
33	Heater, Defrost
34	Clip
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
37	Screw
38	WP2172890 Whirlpool Refrigerator Wire
39	Grommet (Production)
40	489340 Whirlpool Refrigerator Screw
41	W10896764 Whirlpool Refrigerator Air Baffle
42	Clip, Heat Shield
43	Relay (Order Overload, No.44, To Obtain Relay)
44	Overload
45	Cover
46	Strap
48	2305374 Whirlpool Refrigerator Unit Rail
49	Screw, 8 x 3/8
50	Guard, Fan
53	WP489427 Whirlpool Refrigerator Screw
55	WPW10141625 Whirlpool Refrigerator Screw Assembly
56	W11693756 Whirlpool Screw Assembly
59	Spring-Tube
63	VALVE, ACCESS (1/2“)
63	VALVE, ACCESS (5/8“)
63	978026 Whirlpool Refrigerator Primary Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	WP4211117 Whirlpool Refrigerator Connector
63	876764 Whirlpool Refrigerator Primary Valve
63	978030 Whirlpool Refrigerator Valve
63	WP978025 Whirlpool Refrigerator Valve
