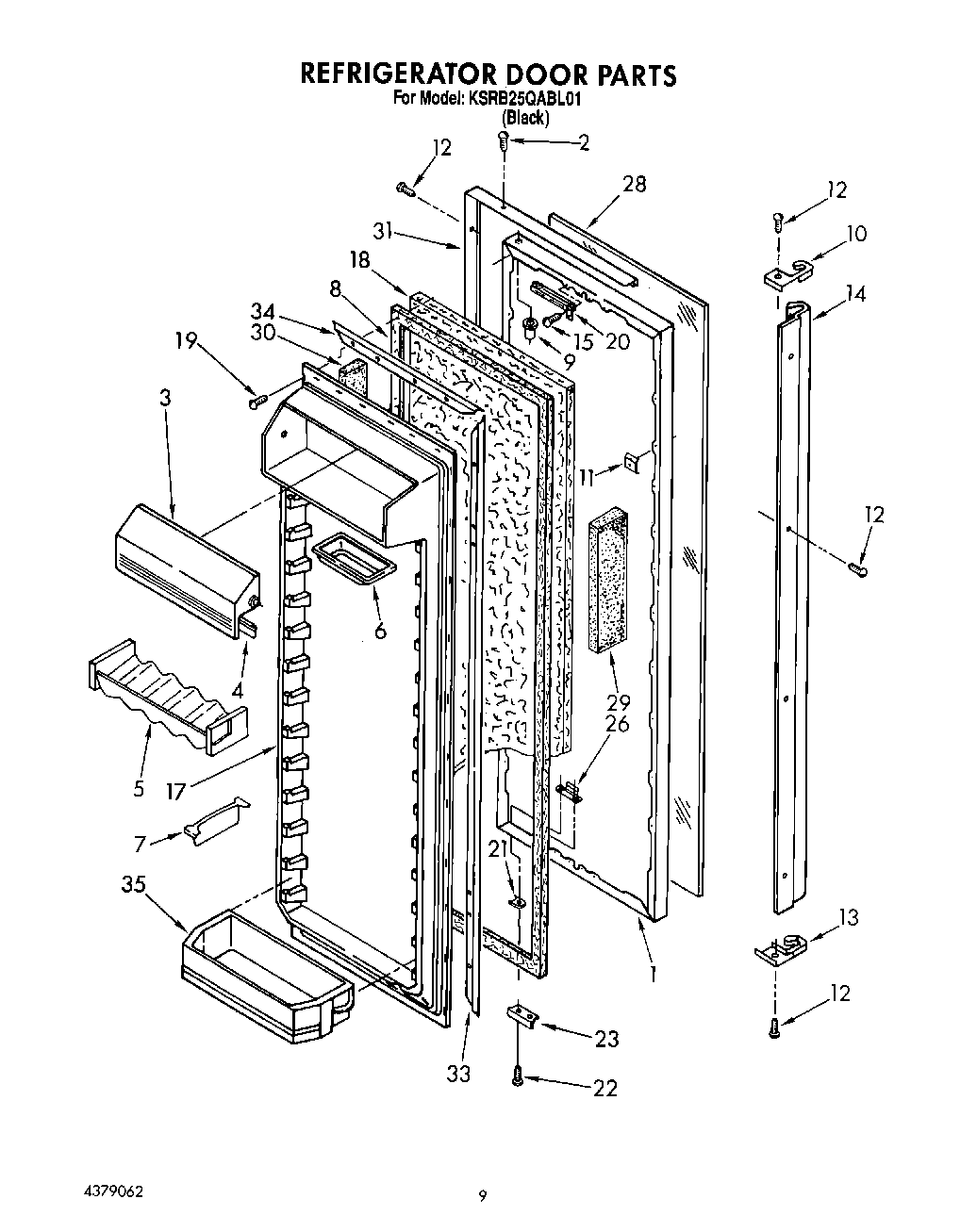

KSRB25QABL01 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (Black (Also Order Item 18))
2	Screw (10)
3	Compartment Door,
4	Gasket, Utility Door
5	WPL 1125981
6	Butter, Tray
7	WPL 1117999
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	End Cap, Bottom
11	Screw Anchor (2)
12	Screw, 6-32 x 1/2
13	End Cap, Top
14	Handle
15	WP488729 Whirlpool Refrigerator Door Screw
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
26	Tap Plate
28	Black Glass
29	Dike, Door Handle Side
30	Dike, Door Hinge Side
31	Trim, Door
33	Gasket Retainer, Side (2)
34	Gasket Retainer, Top & Bottom
35	Bin, Door Shelf Deep. Wide
