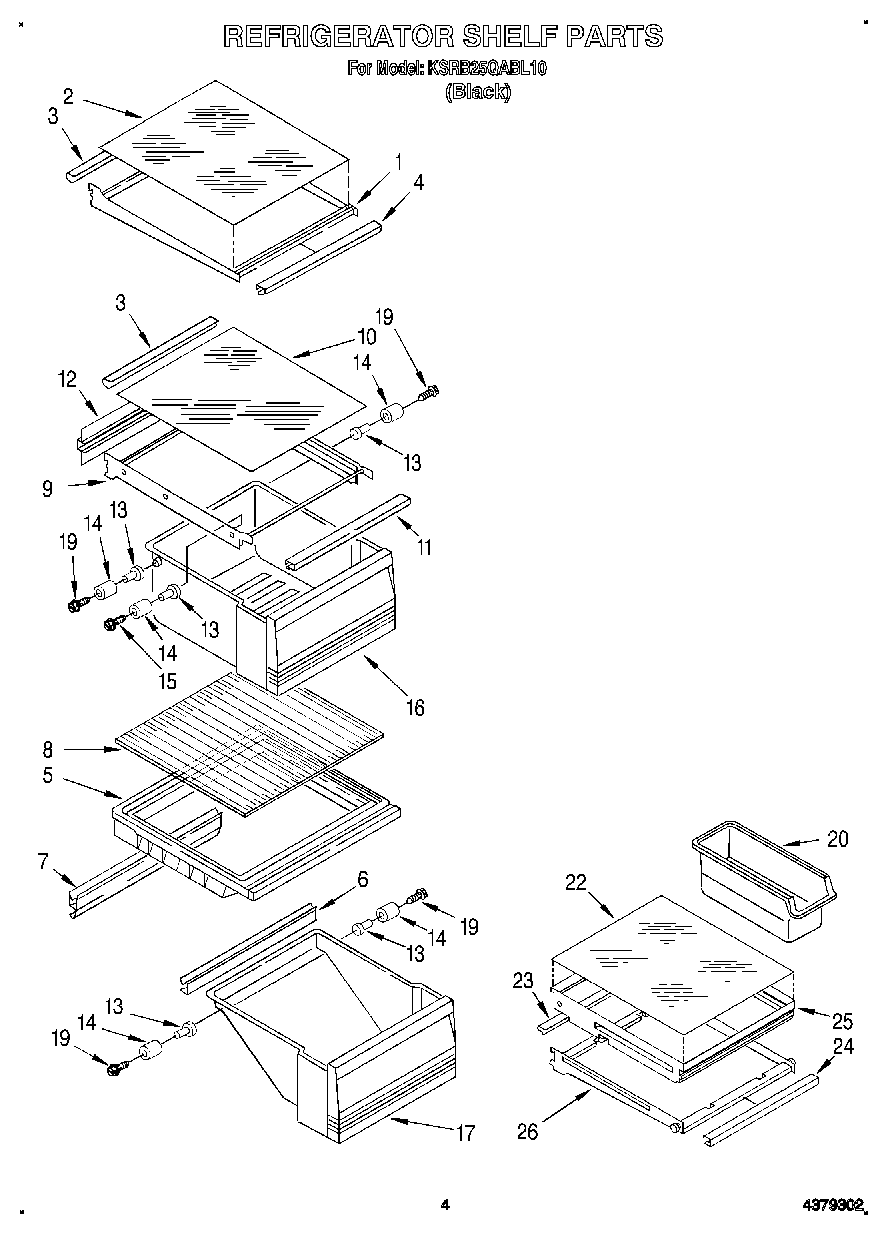

KSRB25QABL10 03 – REFRIGERATOR SHELFadmin2025-04-26T12:17:39+00:00KSRB25QABL10 03 – REFRIGERATOR SHELF
Products
| Position | Product |
|---|
| 1 | Shelf Assembly, Cantilever (2) |
| 2 | Glass, Shelf |
| 3 | Retainer |
| 4 | Gasket, Front |
| 5 | WP2161491 Whirlpool Crisper Drawer Cover |
| 6 | WP1125528 Whirlpool Refrigerator Gasket |
| 7 | Gasket, Cover (Rear) |
| 8 | Glass, Cover (2) |
| 9 | Pan Shelf & Slide (Includes 13, 14, & 15) Assembly |
| 10 | Glass, Shelf |
| 11 | Gasket (Front) |
| 12 | Gasket (Rear) |
| 13 | Eyelet, Roller |
| 14 | Roller |
| 15 | WP489261 Whirlpool Refrigerator Screw |
| 16 | Crisper Pan (2) (Includes 13, 14 & 19) |
| 17 | Utility Pan (Includes 13, 14 & 19) |
| 20 | WP982704 Whirlpool Refrigerator Container |
| 22 | Glass, Shelf |
| 23 | Reflector |
| 24 | Gasket, Front |
| 25 | Frame & Roller |
| 26 | Frame And Roller Asm. (Cantilever) |
