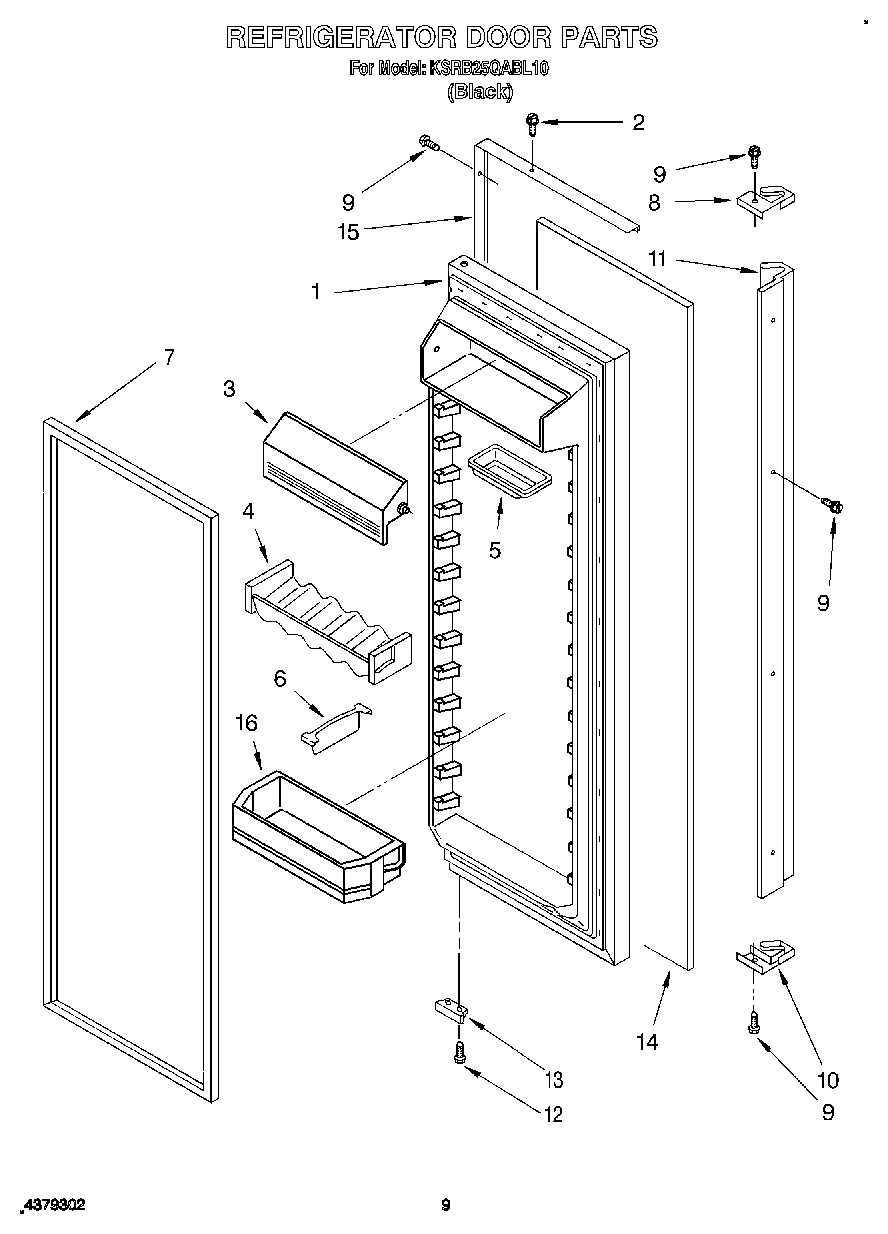

KSRB25QABL10 06 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	Modular Icemaker Service Sheet
	Torx Key
	WPL LIT2169394
	WPL LIT2168863
	WPL LIT2155734
1	Refrigerator Door (Includes No.7)
2	Screw (10)
3	Door, Compartment
4	WPL 1125981
5	Butter, Tray
6	WPL 1117999
7	2159075 Whirlpool Door Gasket Seal
8	End Cap, Bottom
9	Screw, 6-32 x 1/2
10	End Cap, Top
11	Handle
12	WP999367 Whirlpool Refrigerator Screw
13	Bracket, Door Stop
14	Black Glass
15	Trim, Door
16	Bin, Door Shelf Deep. Wide
16	Leveler (Thinner)
16	CEMENT, ALUMILASTIC (1 1/4 OZ.)
16	Transformer (115-230 Volt)
16	WPW10312300 Whirlpool Refrigerator Ice Container
16	72032 Whirlpool Touch Up Paint Black
16	511873 Whirlpool Refrigerator Paint
16	350942 Whirlpool Spray Paint
16	212643 Whirlpool Refrigerator Permagum Sealer
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	350956 Whirlpool Spray Assembly
16	606755 Whirlpool Refrigerator Bag
16	833938 Whirlpool Refrigerator Terminal
16	876370 Whirlpool Refrigerator Insulation
16	285006 Whirlpool Spray
16	WPL 876029
16	WPL 799833
16	Enamel, Black (1 Qt. Uncut)
16	TAPE, VINYL (3/4 X 108``)
16	WP542638 Whirlpool Refrigerator Grease
16	WP505587 Whirlpool Refrigerator Sealer
16	WP503695 Whirlpool Refrigerator Sealer
16	350930 Whirlpool White Spray Paint
