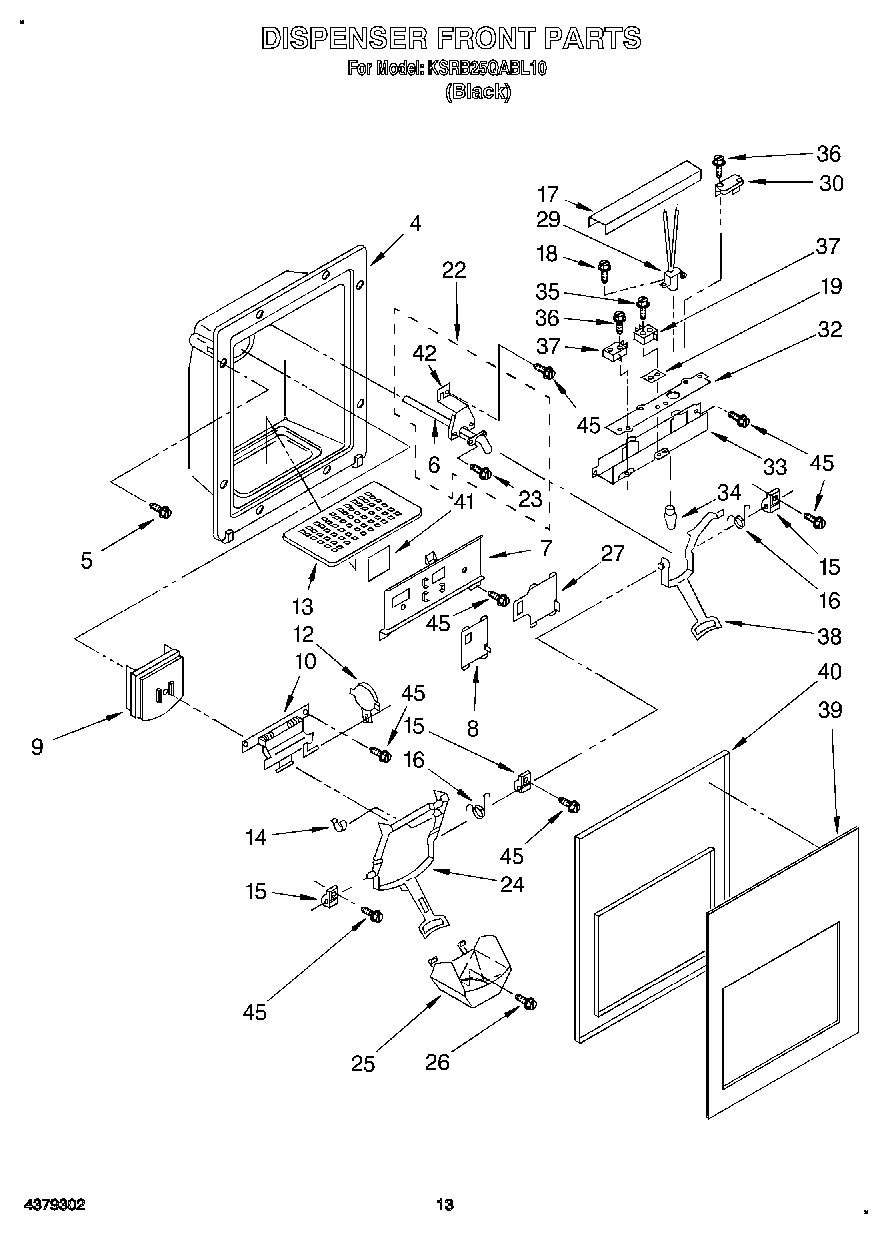

KSRB25QABL10 08 – DISPENSER FRONT

KSRB25QABL10 08 – DISPENSER FRONT

Written by

in

KSRB25QABL10 08 – DISPENSER FRONT

Products

PositionProduct
4Housing, Dispenser (Not a Serviceable Part)
5W11693756 Whirlpool Screw Assembly
6Tube, Water (See Item No.22)
7Frame, Slides
8Slide, Cube/Crush Switch
9WP2180353 Whirlpool Dispenser Door
10Door Mechanism Assembly
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Spacer, Switch (2)
22WP4388152 Whirlpool Refrigerator Fitting
23WP965173 Whirlpool Dishwasher Screw
24Lever Assembly, Ice Dispenser
25Guide, Ice
26Screw
27Slide, Light Switch
29Lamp Holder
30WP2162361 Whirlpool Switch
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35Screw, 4-40 x 1
36Screw,
37814037 Whirlpool Microwave Switch
38Lever Assembly, Water Disp
39WPL 1125803
40WPL 1125807
41Heat Shield, Frame
42Bracket, Water
45WP3400906 Whirlpool Refrigerator Screw
