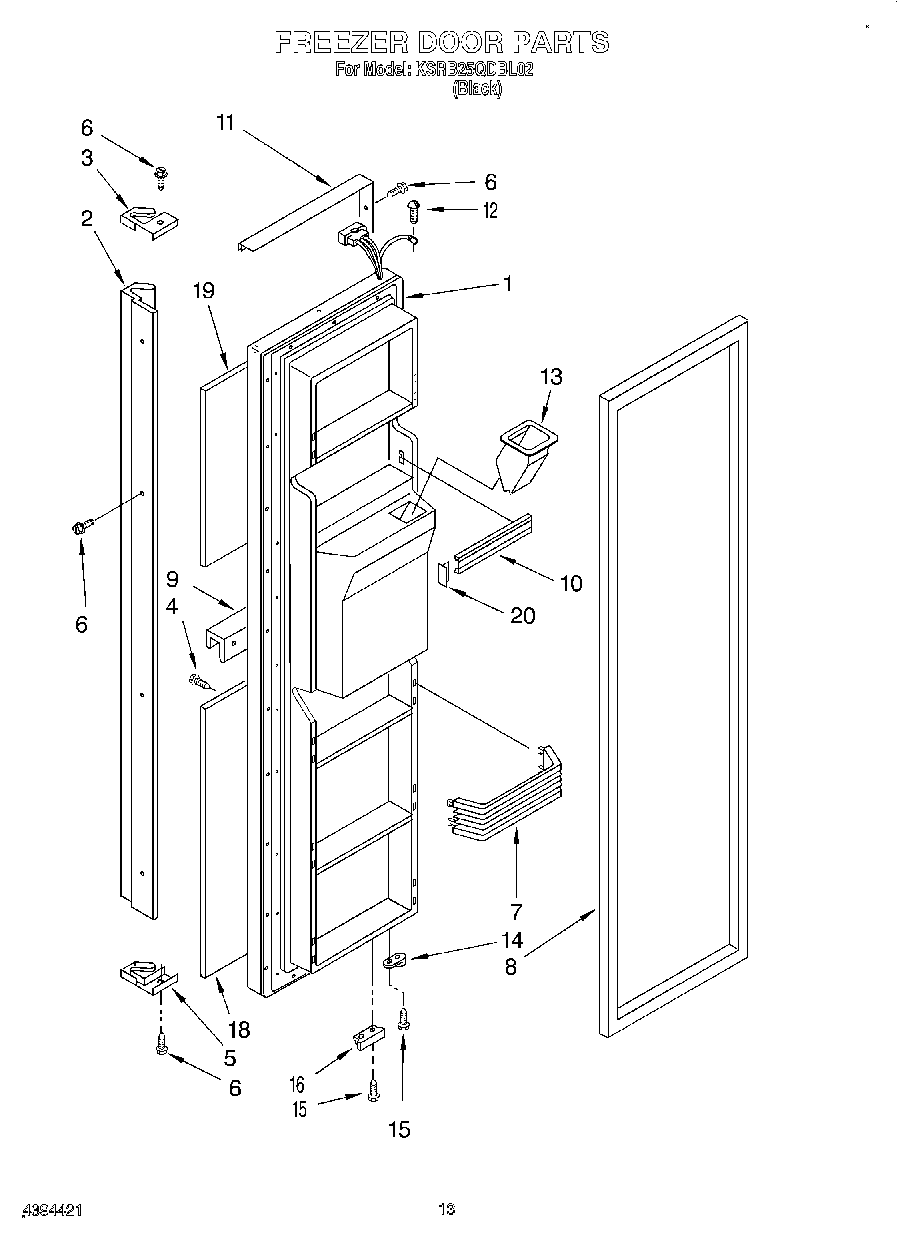

KSRB25QDBL02 08 – FREEZER DOOR

Written by

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts)
2	Handle
3	End Cap, Top
4	Screw
5	End Cap, Bottom
6	Screw
7	Shelf Bin (4)
8	2159082 Whirlpool Freezer Door Gasket Black
9	Trim, Dispenser
10	WPW10307490 Whirlpool Door Trim Assembly
11	Trim, Door
12	WP488234 Whirlpool Air Conditioner Screw
13	Chute, Ice
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP999367 Whirlpool Refrigerator Screw
16	Bracket, Door Stop
18	Black Glass, Lower
19	Black Glass, Upper
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
