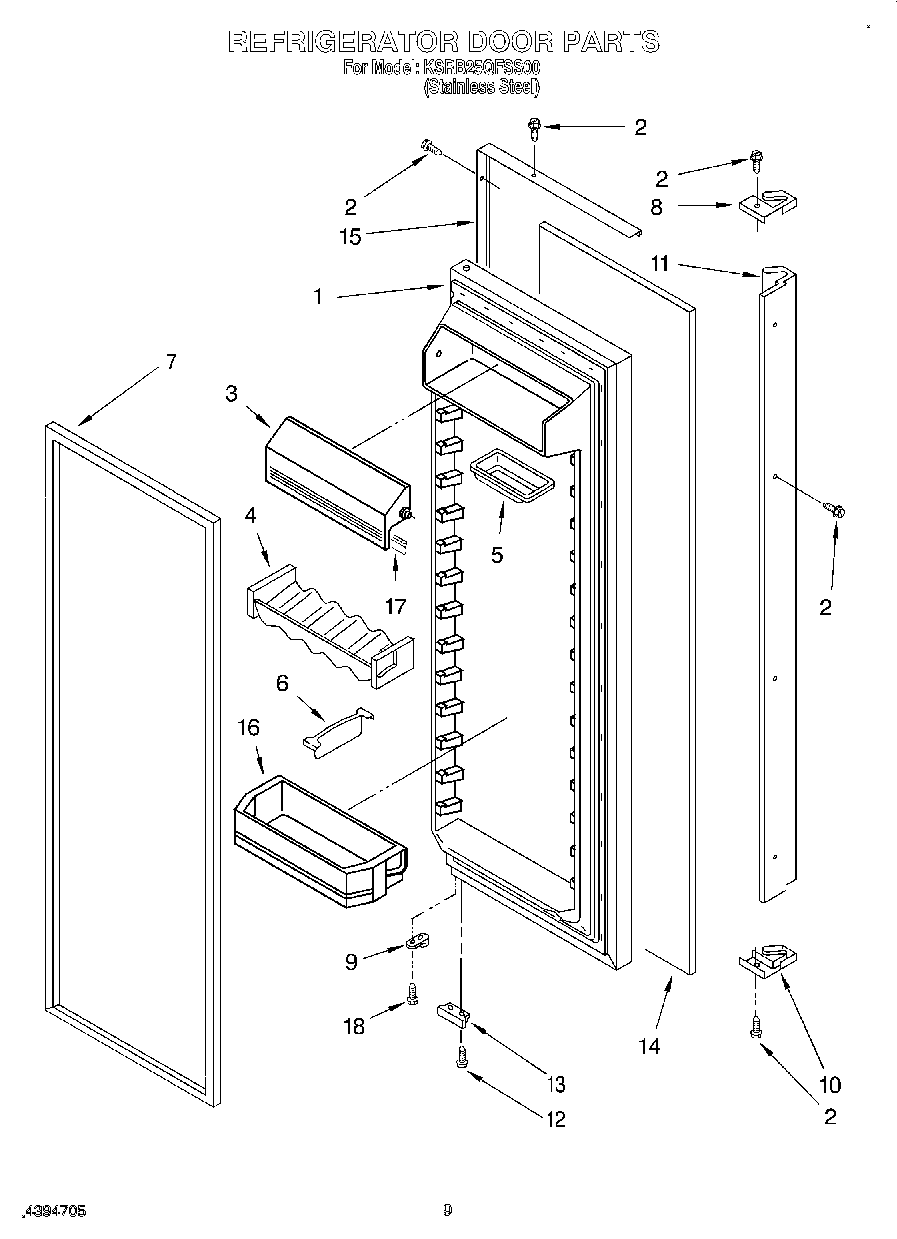

KSRB25QFSS00 06 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes No.7)
2Screw
3WP2313637 Whirlpool Cutting Grid Assembly
4Beverage Holder
5Butter Tray
6Divider, Bin
72159083 Whirlpool Gasket Door
8End Cap, Top
94318165 Whirlpool Refrigerator Door Closure Cam Kit
10End Cap, Bottom
11Handle
12WP489483 Whirlpool Screw
13Bracket, Door Stop (Chrome)
14Panel (Stainless Steel)
15Trim, Door
16Bin, Door Shelf
17Gasket, Door Compartment
18WP3400012 Whirlpool Refrigerator Screw
