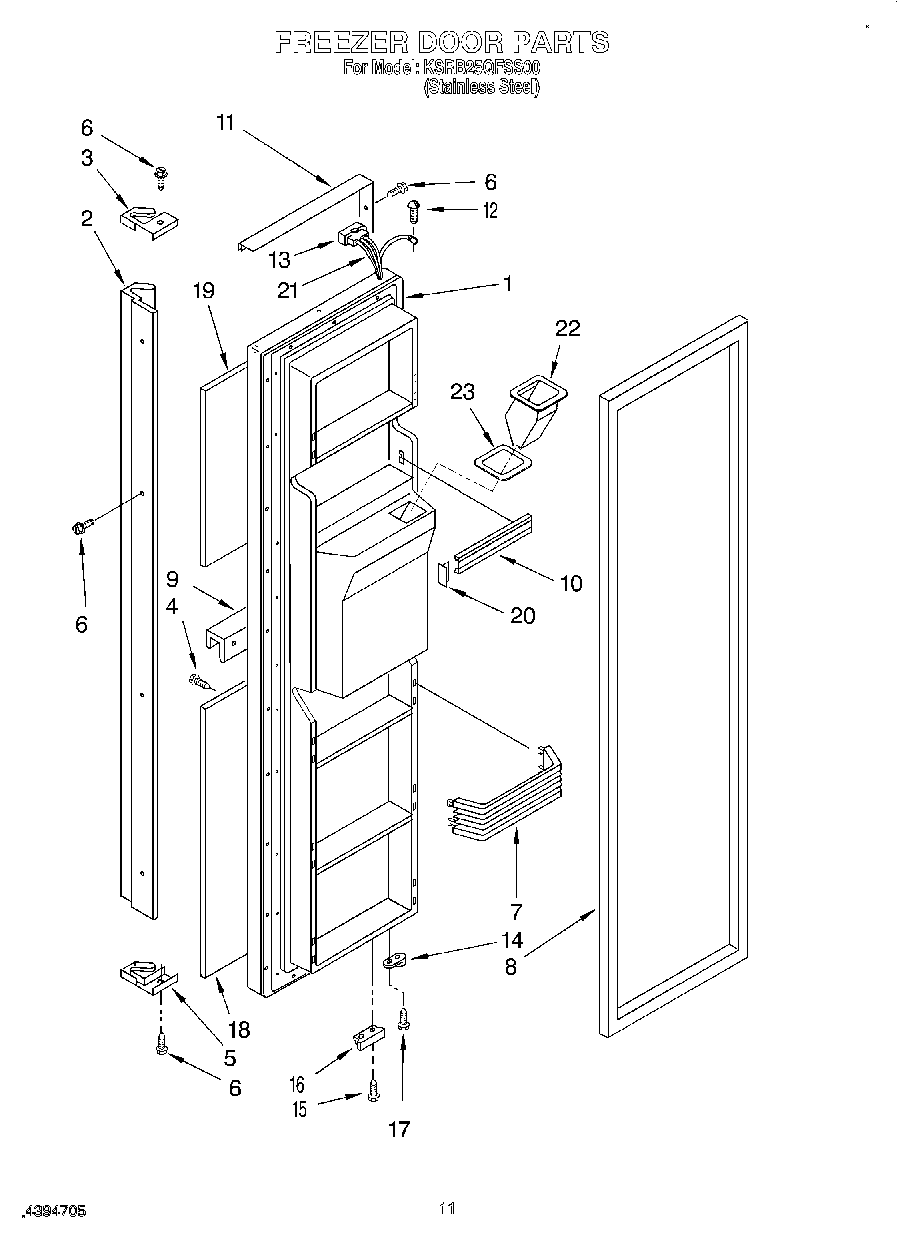

KSRB25QFSS00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts)
2	Handle
3	End Cap, Bottom
4	Screw
5	End Cap, Top
6	Screw
7	Shelf Bin (4)
8	2159082 Whirlpool Freezer Door Gasket Black
9	Trim, Dispenser
10	WPW10307490 Whirlpool Door Trim Assembly
11	Trim, Door
12	WP488234 Whirlpool Air Conditioner Screw
13	WP2154473 Whirlpool Refrigerator Connector
14	4318165 Whirlpool Refrigerator Door Closure Cam Kit
15	WP489483 Whirlpool Screw
16	Bracket, Door Stop (Chrome)
17	WP3400012 Whirlpool Refrigerator Screw
18	Panel, Lower (Stainless Steel)
19	Panel, Upper (Stainless Steel)
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	Wire Harness
22	Chute, Ice
23	Seal, Housing
