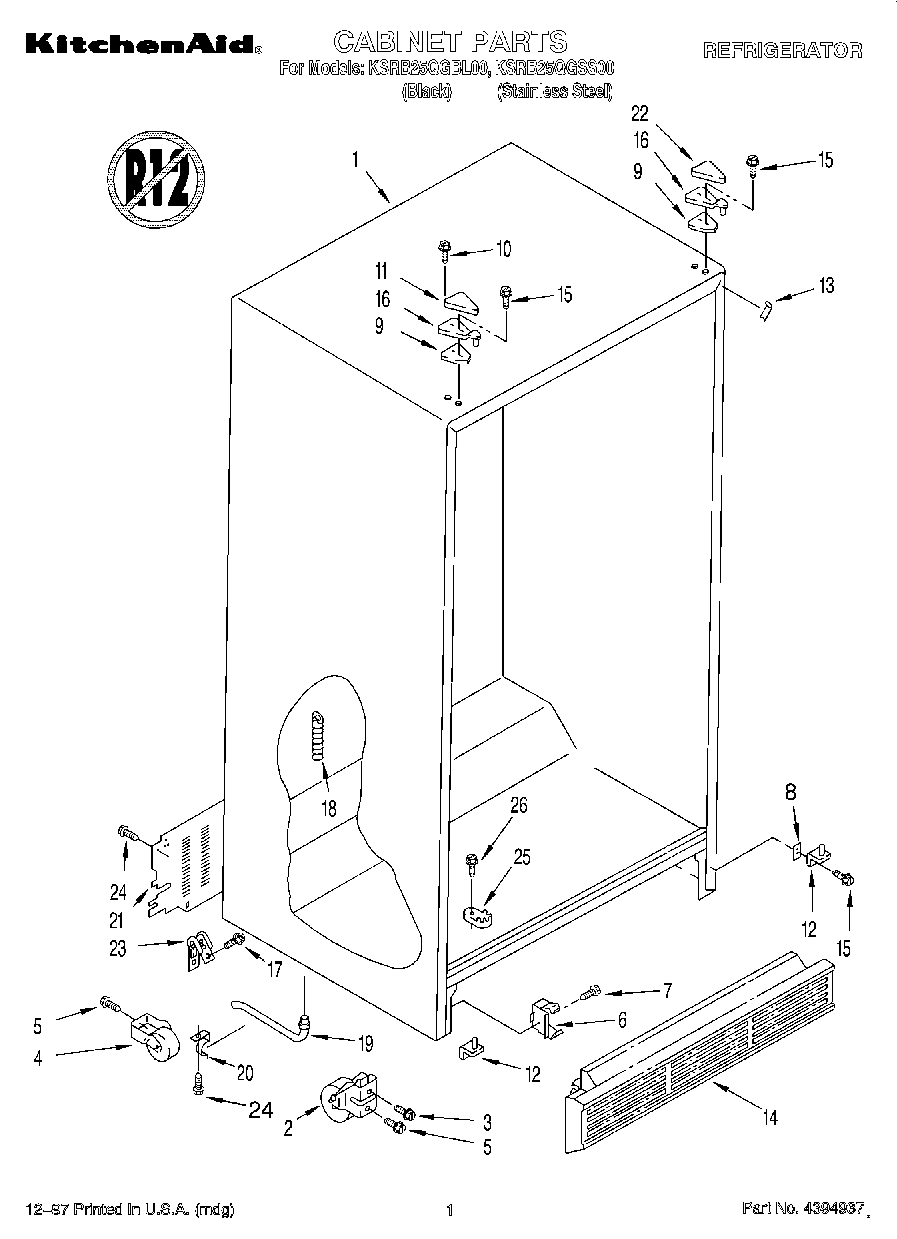

KSRB25QGBL00 01 – CABINET
Written by
in
KSRB25QGBL00 01 – CABINET
Products
Position
Product
1
Cabinet (Not A Serviceable Part)
2
Front Roller (2)
3
W10850698 Whirlpool Refrigerator Screw
4
WPW10250570 Whirlpool Refrigerator Cabinet Roller
5
WP489427 Whirlpool Refrigerator Screw
6
WP2155013 Whirlpool Refrigerator Clip
8
WP2181911 Whirlpool Refrigerator Shim
9
Shim, Hinge Top
10
Screw
11
Hinge Cover
12
8201707 Whirlpool Door Hinge
13
Filler, Wrapper (Black)
14
Grille (Black)
15
WP489497 Whirlpool Screw
16
WP2196046 Whirlpool Refrigerator Door Hinge
17
WP489478 Whirlpool Refrigerator Screw
18
W11566763 Whirlpool Fitting
19
WP1108438 Whirlpool Refrigerator Extension
20
WP1108439 Whirlpool Refrigerator Clip
21
WP2188755 Whirlpool Rear Panel
22
Hinge Cover (Black)
23
549193 Whirlpool Refrigerator Power Clamp
25
WPW10329686 Whirlpool Door Cam Black
26
WP489483 Whirlpool Screw
←
