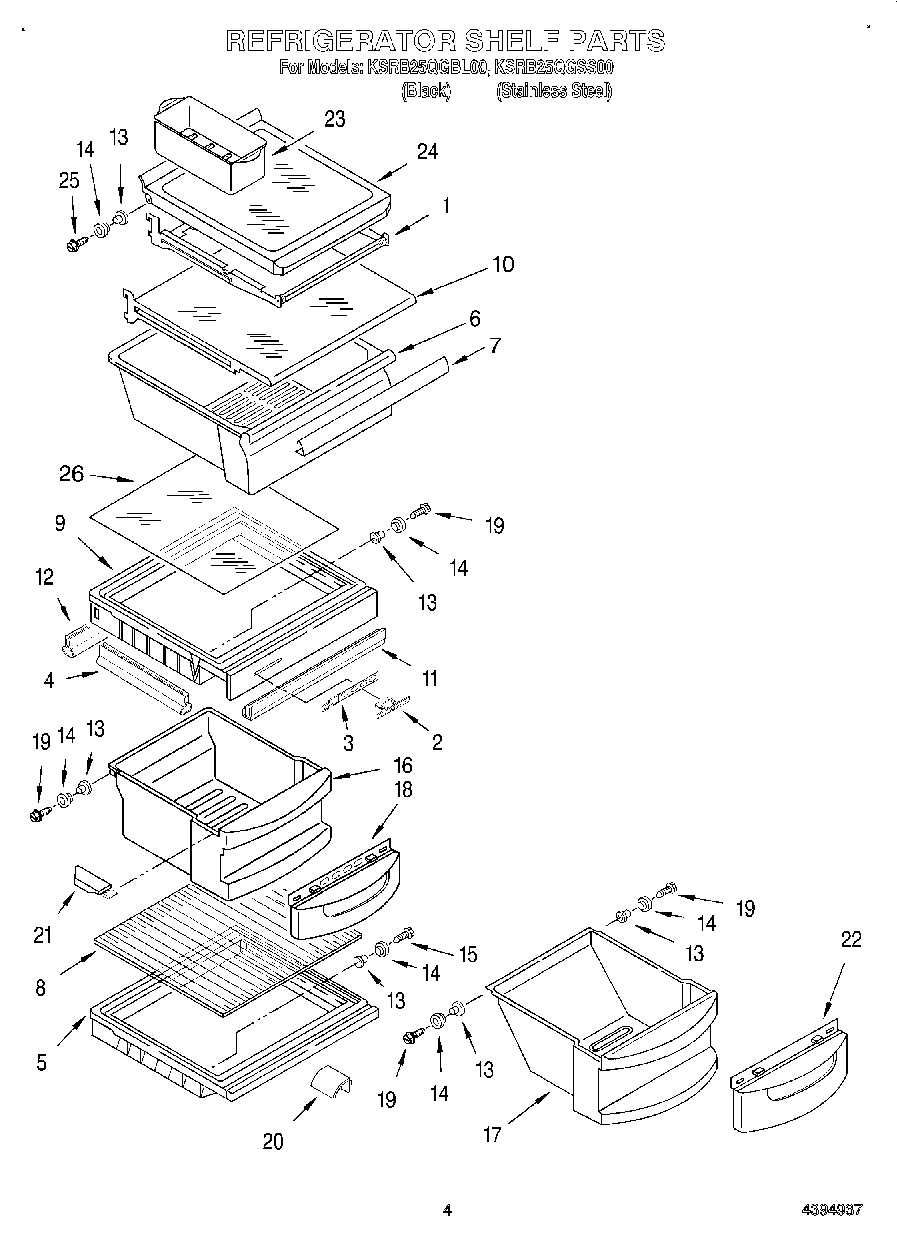

KSRB25QGBL00 03 – REFRIGERATOR SHELF

KSRB25QGBL00 03 – REFRIGERATOR SHELF

Written by

in

KSRB25QGBL00 03 – REFRIGERATOR SHELF

Products

PositionProduct
1Shelf Assembly, Cantilever (2)
2Button, Humidity Control
32174252 Whirlpool Refrigerator Slide
4Gasket, Side (2)
5WP2161491 Whirlpool Crisper Drawer Cover
6W11497323 Whirlpool Snack Pan
7WP2179243 Whirlpool Refrigerator Pan Trim
8Glass, Cover
9Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14, & 19)
10Shelf, Snack Pan
11WP1125528 Whirlpool Refrigerator Gasket
12Gasket, (Rear)
13Eyelet, Roller
14Roller
15WPW10272364 Whirlpool Refrigerator Screw
16WP2179227 Whirlpool Refrigerator Crisper Pan
17Meat Pan (Includes 13, 14, 19, & 22)
18Window, Crisper
19WP489261 Whirlpool Refrigerator Screw
202176095 Whirlpool Refrigerator Deflector
21Cap, Crisper (Right Side)
21Cap, Crisper (Left Side)
22Window, Meat Pan
23W10136387A Whirlpool Refrigerator Egg Container
24Shelf & Roller Assembly
25Screw
26Glass, Cover
