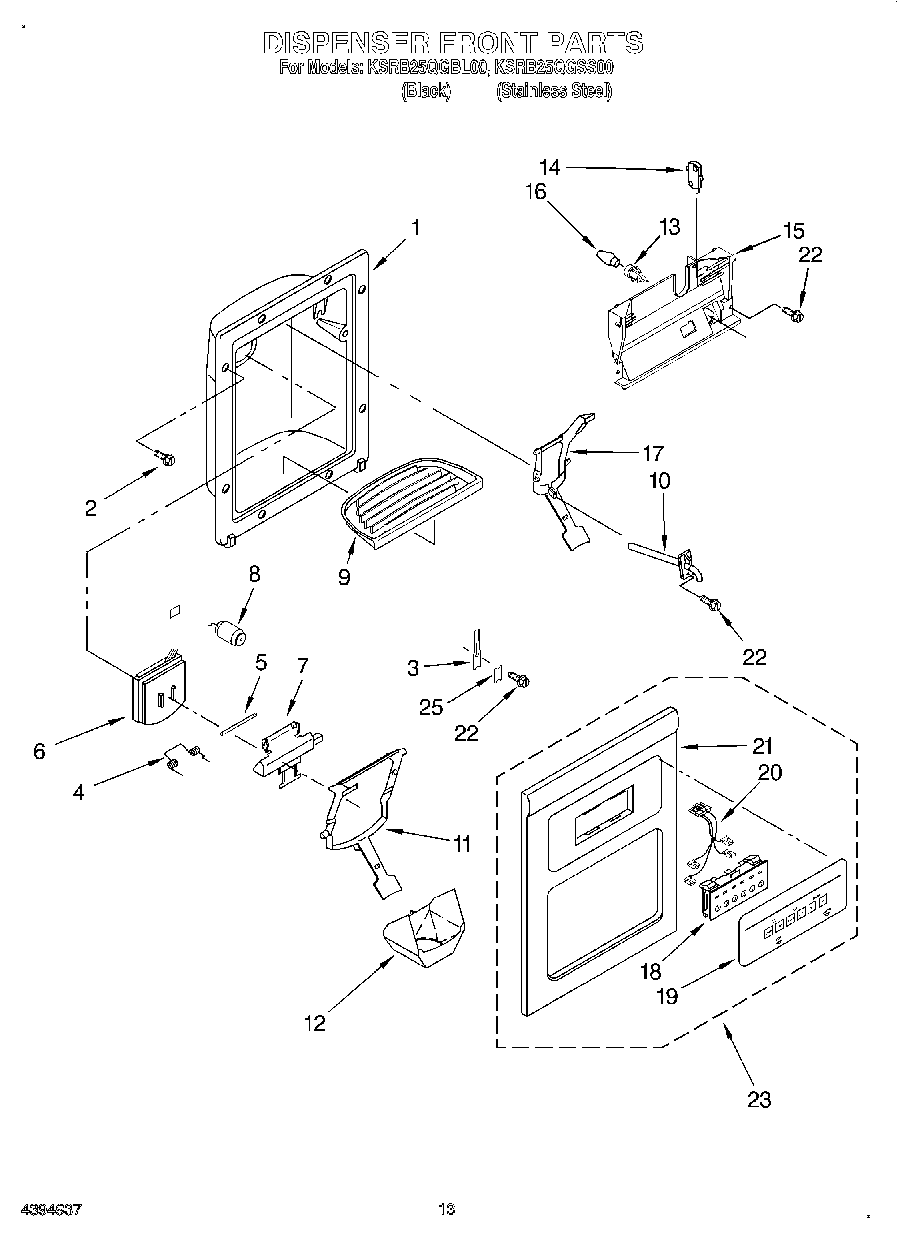

KSRB25QGBL00 08 – DISPENSER FRONT

KSRB25QGBL00 08 – DISPENSER FRONT

Written by

in

KSRB25QGBL00 08 – DISPENSER FRONT

Products

PositionProduct
1Housing, Dispenser (Not a Serviceable Part)
2WP489128 Whirlpool Refrigerator Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6Door, Ice
7Door Mechanism Assembly
8Delay Mechanism
9WP2180325 Whirlpool Dispenser Grille
10WP4388152 Whirlpool Refrigerator Fitting
11Lever, Ice Dispenser (Black (Storm Grey Pad))
12WP2180224 Whirlpool Dispenser Funnel Guide
132180200 Whirlpool Refrigerator Socket
14WP2162361 Whirlpool Switch
15WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
16WP22002263 Whirlpool Dryer 10W Light Bulb
17WPW10152858 Whirlpool Refrigerator Dispenser Arm
18WP2180236 Whirlpool Refrigerator Switch
19Overlay, Front Cover (Black)
202311650 Whirlpool Refrigerator Wire Harness
21Front Cover, Housing (Not Available, Order No.23)
22WP3400906 Whirlpool Refrigerator Screw
23WPL 2180398
25WP2195051 Whirlpool Refrigerator Clip
