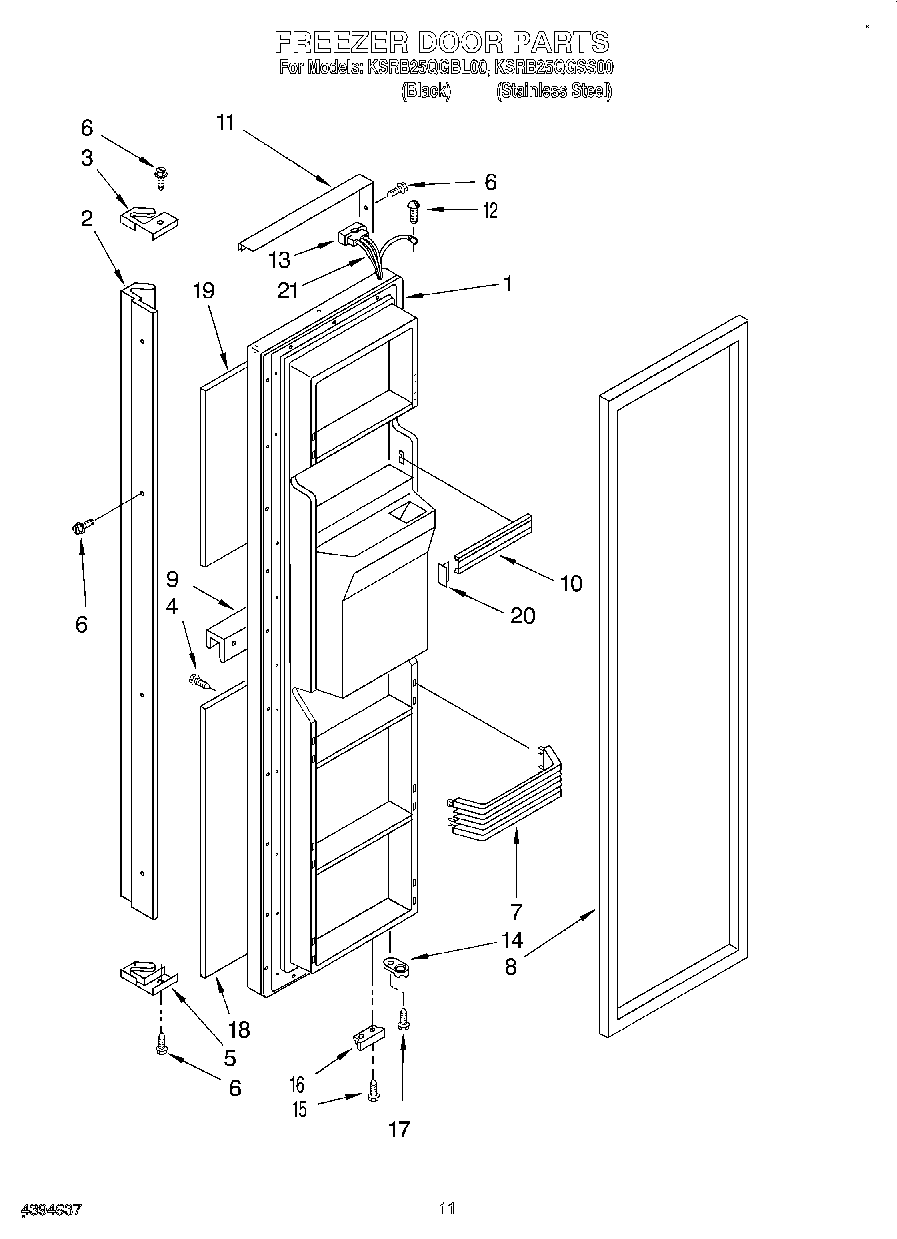

KSRB25QGSS00 07 – FREEZER DOORadmin2025-04-26T12:21:03+00:00KSRB25QGSS00 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) |
| 2 | Handle |
| 3 | End Cap, Bottom |
| 4 | Screw |
| 5 | End Cap, Top |
| 6 | Screw |
| 7 | Shelf Bin (4) |
| 8 | 2159082 Whirlpool Freezer Door Gasket Black |
| 9 | Trim, Dispenser |
| 10 | WPW10307490 Whirlpool Door Trim Assembly |
| 11 | Trim, Door |
| 12 | WP488234 Whirlpool Air Conditioner Screw |
| 13 | WP2154473 Whirlpool Refrigerator Connector |
| 14 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 15 | WP489483 Whirlpool Screw |
| 16 | Bracket, Door Stop (Black) |
| 16 | Bracket, Door Stop (Chrome) |
| 17 | WP3400012 Whirlpool Refrigerator Screw |
| 18 | Black Glass, Lower |
| 18 | Panel, Lower (Stainless Steel) |
| 19 | Black Glass, Upper |
| 19 | Panel, Upper (Stainless Steel) |
| 20 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 21 | Wire Harness |
