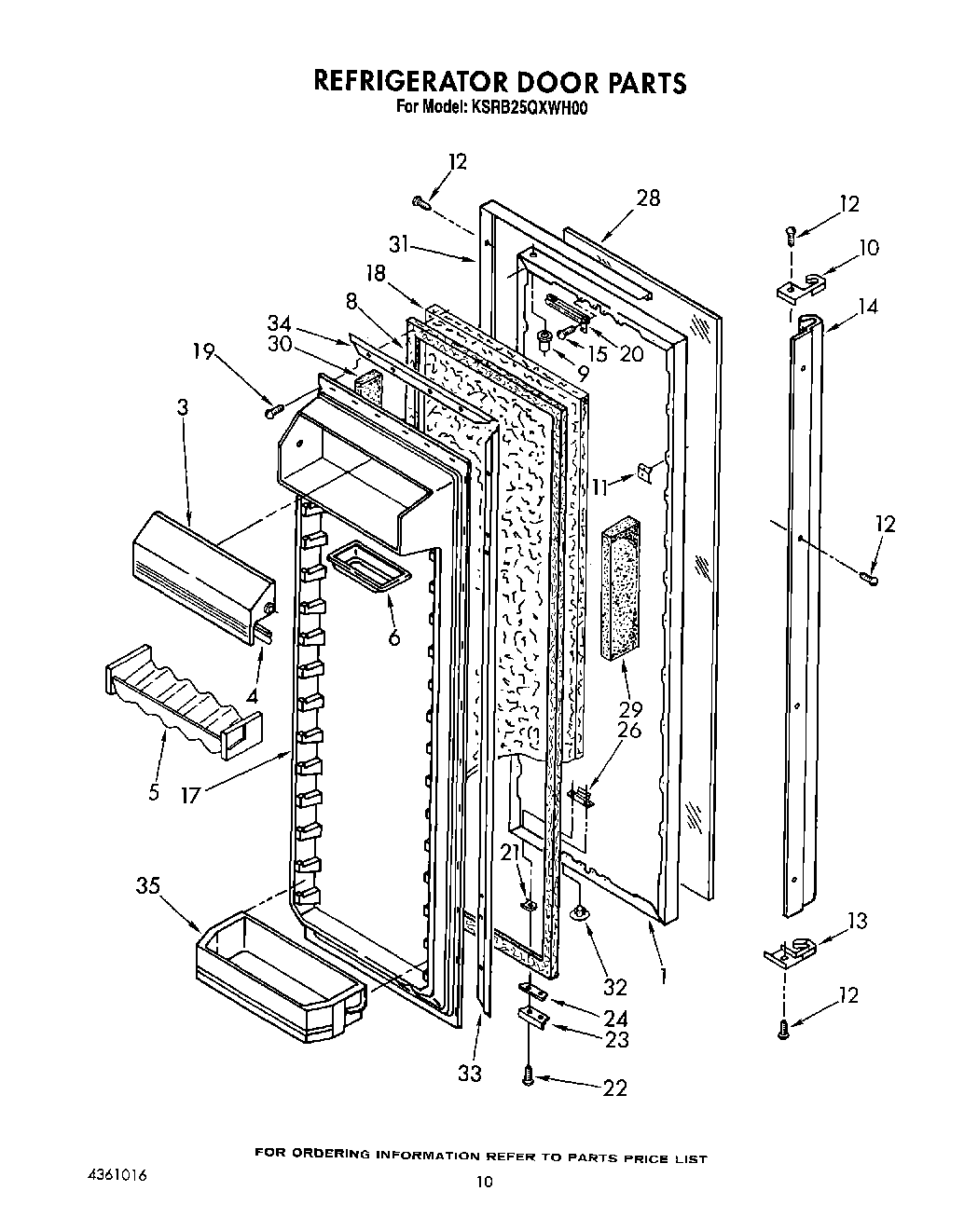

KSRB25QXAL00 08 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door (White)
3	Compartment Door,
4	Gasket, Utility Door
5	WPL 1125981
6	Butter, Tray
8	Door Gasket, Magnetic
9	Cap, Hinge Sleeve (2)
10	End Cap, Bottom
11	Screw Anchor (2)
12	Screw, 6-32 x 1/2
13	End Cap, Top
14	Handle
15	WP488729 Whirlpool Refrigerator Door Screw
17	Panel, Interior Door
18	WPL 876029
20	Door Closer, Upper Cam
21	WP1104787 Whirlpool Refrigerator Shim
22	WP489069 Whirlpool Compactor Screw
23	Bracket, Door Stop
24	Shim
26	Tap Plate
28	Black Glass
29	Dike, Door Handle Side
30	Dike, Door Hinge Side
31	Trim, Door
32	Hole Plug (2)
33	Gasket Retainer, Side (2)
34	Gasket Retainer, Top & Bottom
35	Acrylic Panel Kit (Almond)
35	Black Glass
35	Handle Inserts (Black Grille Kit)
35	Handle Inserts (Woodgrain)
35	Bin, Door Shelf Deep. Wide
35	Trim Kit
35	Acrylic Panel Kit (White)
35	Handle Inserts (Black)
