KSRB25QXAL10 06 – AIRFLOW

KSRB25QXAL10 06 – AIRFLOW

Written by

in

KSRB25QXAL10 06 – AIRFLOW

Products

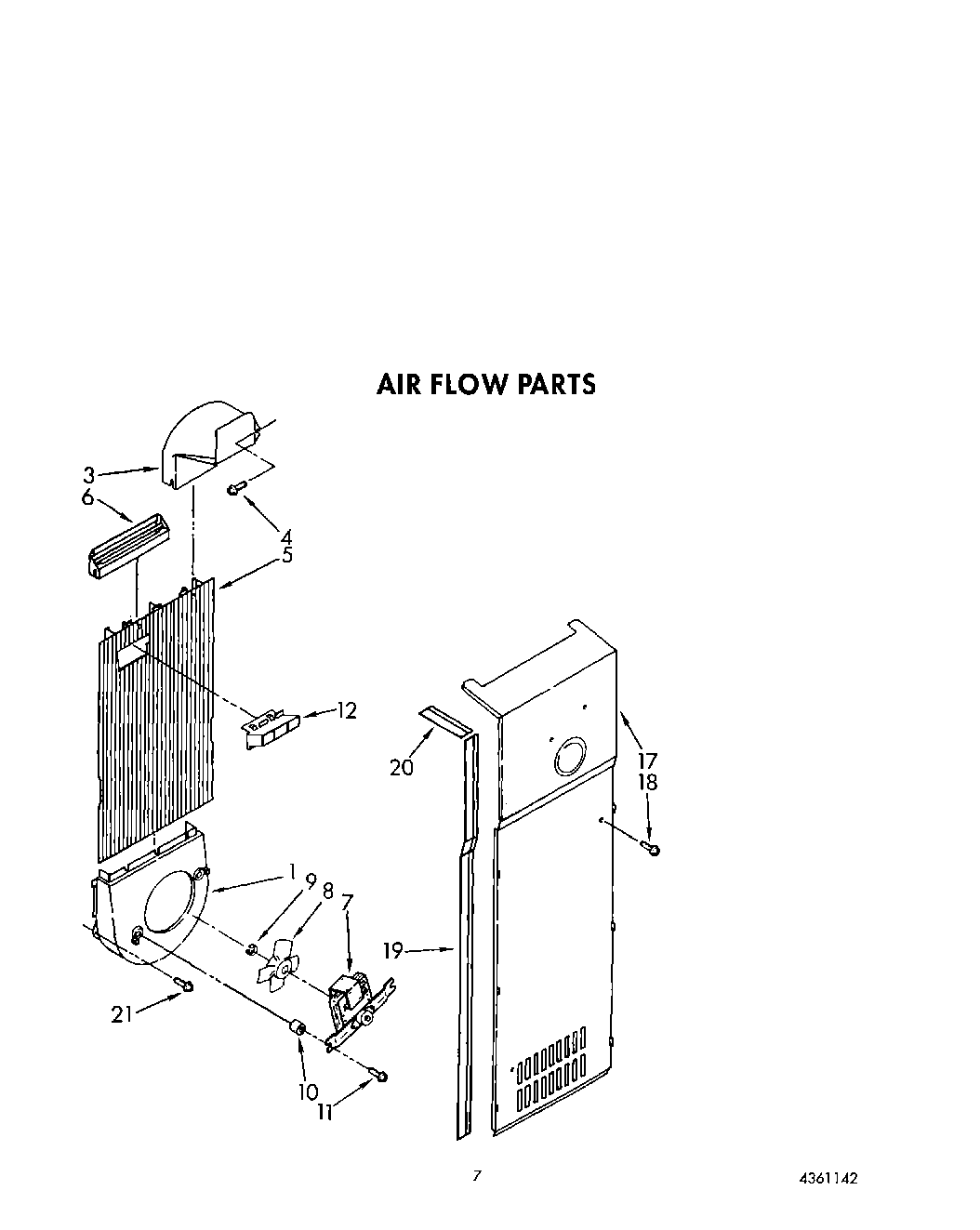

PositionProduct
1Fan Scroll
3Air Scoop
4WP488729 Whirlpool Refrigerator Door Screw
5Air Duct Freezer
6Diffuser Air Duct
7Fan Motor
8Blade, Fan
9Ring, Compression
10Fan Grommet (2)
11Screw (2)
122182146 Whirlpool Refrigerator Duct
17Cover, Evaporator
18SCREW
19Gasket, Evaporator Cover (2)
20Gasket, Evaporator Cover Top (2)
21WP489478 Whirlpool Refrigerator Screw
