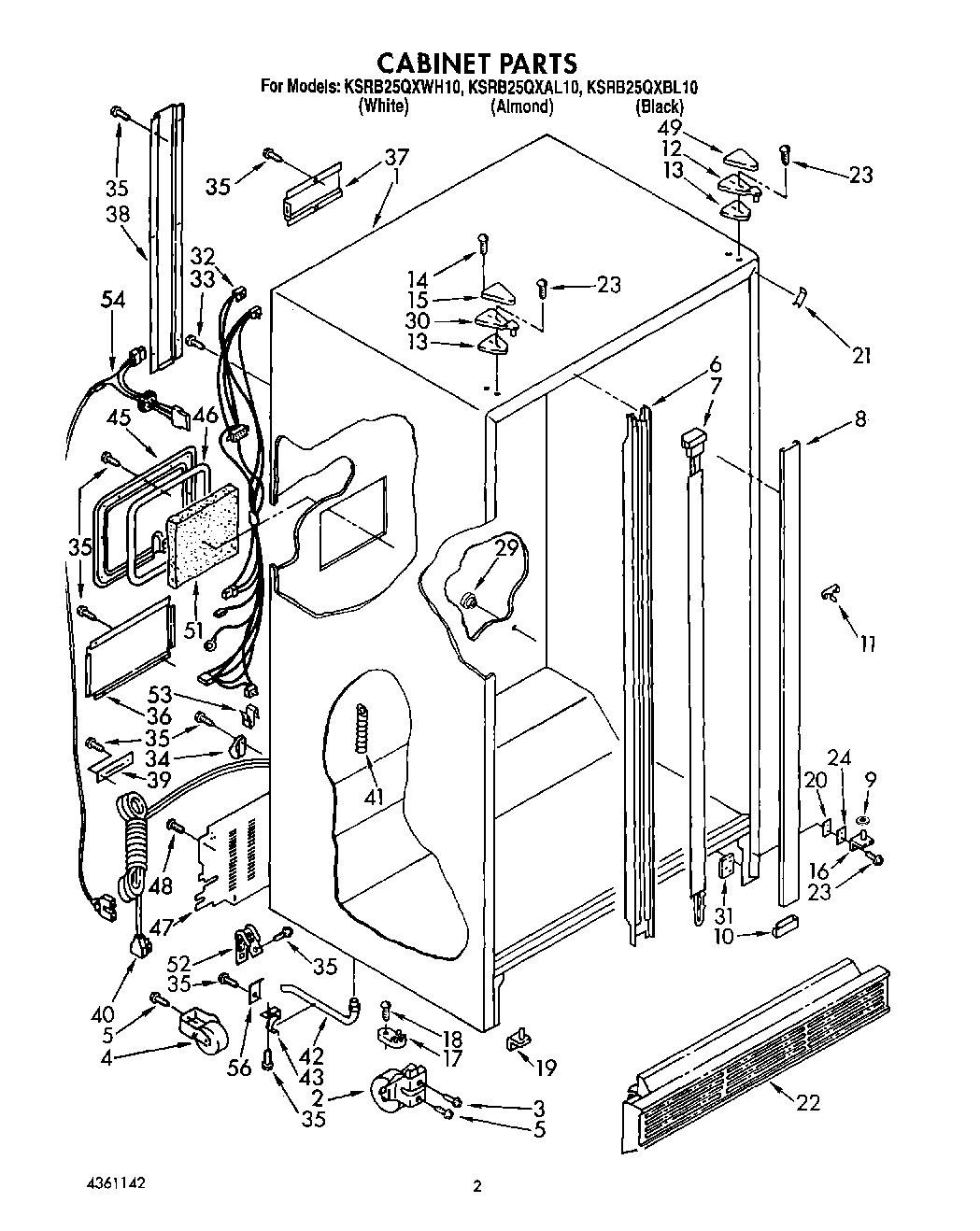

KSRB25QXBL10 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Mullion Rail
7	Heater Mullion
8	Front Mullion Rail (Almond)
8	Front Mullion Rail (White)
9	Washer, 7/16
10	Filler Bottom Mullion (White)
10	Filler Bottom Mullion (Almond)
11	Clip, Ground
12	Hinge Top (R.H.)
13	Shim, Hinge Freezer Door
14	Screw
15	Hinge Cover (White)
15	Hinge Cover (Almond)
15	Hinge Cover
16	Hinge Bottom (R.H.)
17	WPW10329686 Whirlpool Door Cam Black
18	WP489399 Whirlpool Refrigerator Screw
19	hinge Bottom (L.H.)
20	Spacer, Hinge
21	Filler, Wrapper (Black)
21	Filler, Wrapper (White)
21	Filler, Wrapper (Almond)
22	Grille
22	Grille (Almond)
22	Grille
23	Screw
24	Shim, Bottom Hinge
29	Grommet
30	Hinge, Top (L.H.)
31	Tap Plate (2)
32	Cabinet Harness
33	WP250830 Whirlpool Refrigerator Screw
34	Clamp
35	WP489464 Whirlpool Refrigerator Screw
36	Cover, Wiring
37	Wiring Shield, Short
38	Wiring Shield, Long
39	Tube Clamp (2)
40	Cord, Service
41	Drain Ferrule
42	WP1108438 Whirlpool Refrigerator Extension
43	WP1108439 Whirlpool Refrigerator Clip
45	Cover, Plug
46	Sealing Gasket
47	Cover, Unit
49	Hinge Cover (Black)
49	1119787 Whirlpool Refrigerator Hinge Cover
51	Insulation
52	549193 Whirlpool Refrigerator Power Clamp
53	Clip, Wire (2)
54	WP2187501 Whirlpool Refrigerator Wire Harness
56	Clamp, Water Line (2)
