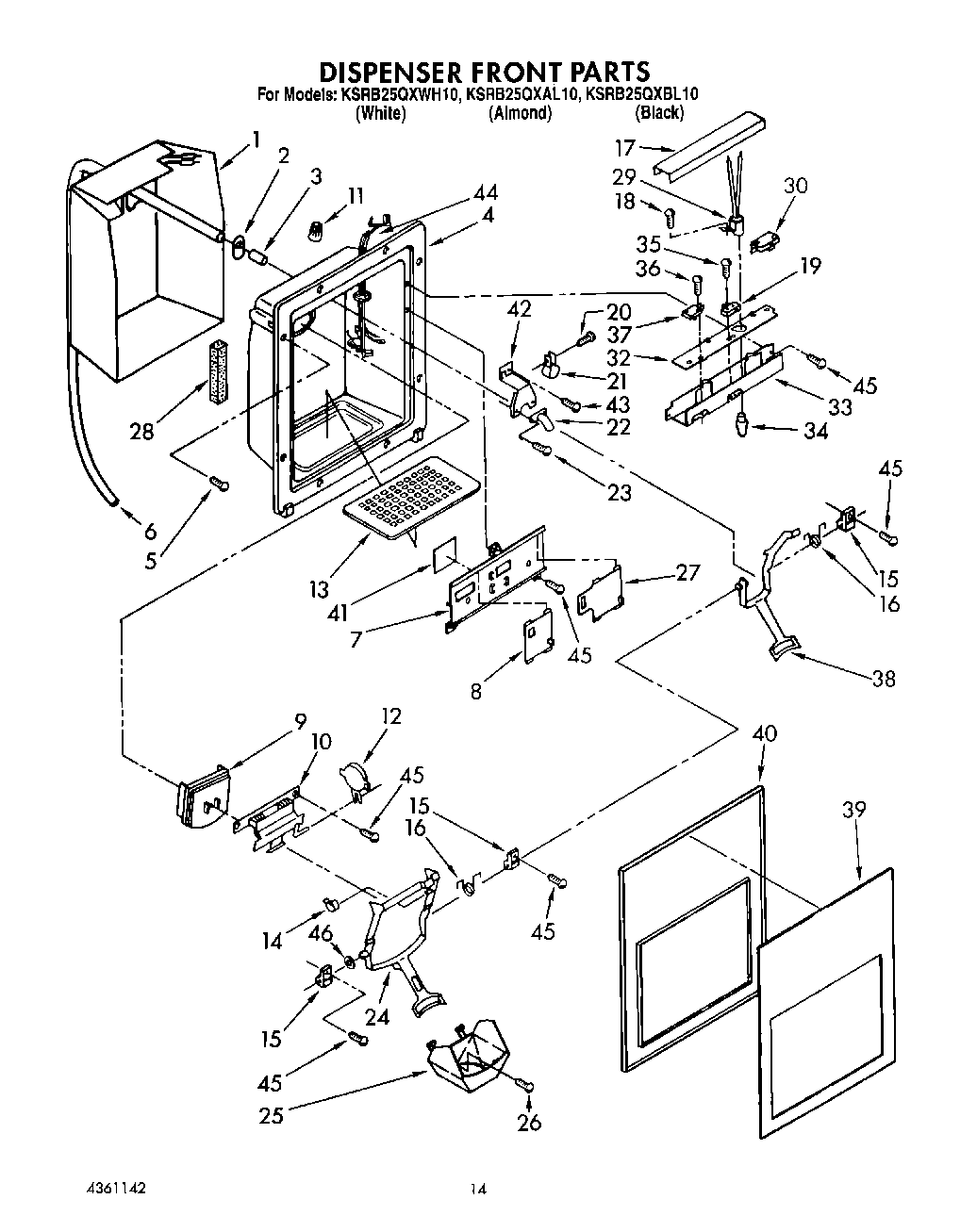

KSRB25QXBL10 10 – DISPENSER FRONT

Products

PositionProduct
1Heater, Dispenser
2Grommet
34387491 Whirlpool Refrigerator Insert
4Housing, Dispenser
4Housing, Dispenser
4Housing Dispenser (For Almond Model)
5W11693756 Whirlpool Screw Assembly
6W10823511 Whirlpool Refrigerator Water Tube
7Frame, Slides
7Frame, Slides
7Frame, Slides (Almond)
8Slide, Cube/Crush Switch
8Slide, Cube/Crush Switch
8Slide, Cube/Crush Switch (Almond)
9Door, Ice
10Door Mechanism Assembly (Includes Item 9)
11Wire Connector
12WP1120581 Whirlpool Refrigerator Mechanism
13Grille, Overflow
13Grille, Overflow (White)
13Grille, Overflow (Almond)
14Clip, Bearing (2)
15Bearing, Lever (3)
16Spring, Lever (2)
17Shield, Wiring
18WP489128 Whirlpool Refrigerator Screw
19Spacer, Switch (2)
20WP488787 Whirlpool Refrigerator Screw
21WP488878 Whirlpool Refrigerator Tube Clamp
22WP4388152 Whirlpool Refrigerator Fitting
23WP965173 Whirlpool Dishwasher Screw
24Lever Assembly, Ice Dispenser
24Lever Assembly, Ice Dispenser (White)
24Lever Assembly, Ice Dispenser (Almond)
25Guide, Ice (Almond)
25Guide, Ice
25Guide, Ice
26Screw
27Slide, Light Switch (Almond)
27Slide, Light Switch
27Slide, Light Switch
28Seal
29Lamp Holder
30Switch
32Insulator, Control Bracket
33Bracket, Control
34WP22002263 Whirlpool Dryer 10W Light Bulb
35Screw, 4-40 x 1
36Screw,
37814037 Whirlpool Microwave Switch
38Lever Assembly, Water Dispenser (Almond)
38Lever Assembly, Water Dispenser
38Lever Assembly, Water Dispenser (White)
39WPL 1125801
39WPL 1125798
39WPL 1125803
40WPL 1125673
40WPL 1125805
40WPL 1125807
41Heat Shield, Frame
42Bracket, Water
43Screw, 8-18 x 3/4
44Wiring Harness, Door
45WP3400906 Whirlpool Refrigerator Screw
46Washer
