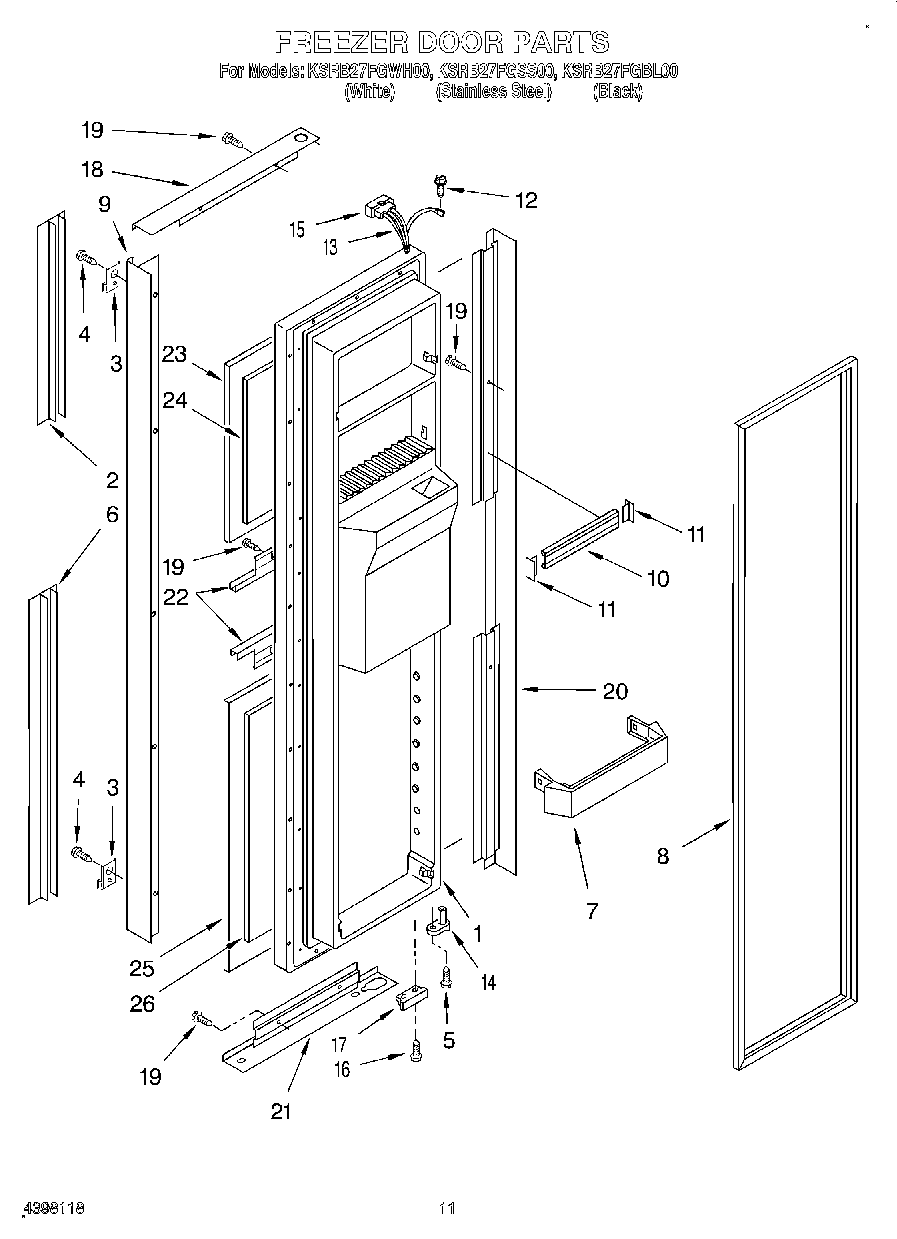

KSRB27FGBL00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Black)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless)
1	Freezer Door (Includes No.8 And Dispenser Front Parts) (White)
2	Cover, Screw (Stainless Steel)
2	Cover, Screw (White)
2	Cover, Screw (Black)
3	Clip, Handle
4	WP489478 Whirlpool Refrigerator Screw
5	WP3400012 Whirlpool Refrigerator Screw
6	Cover, Screw (Black)
6	Cover, Screw (Stainless Steel)
6	Cover, Screw (White)
7	Shelf Bin (4)
8	2159082 Whirlpool Freezer Door Gasket Black
8	2159074 Whirlpool Door Gasket Seal
9	Handle (Stainless)
9	Handle (Black)
9	Handle (White)
10	WPW10307490 Whirlpool Door Trim Assembly
11	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12	WP489128 Whirlpool Refrigerator Screw
13	Wire Harness
14	WP2182179 Whirlpool Cam Closer
15	WP2154473 Whirlpool Refrigerator Connector
16	WP489483 Whirlpool Screw
17	Bracket, Door Stop (Chrome)
18	Trim, Door (Top) (Stainless)
18	Trim, Door (Top) (White)
18	Trim, Door (Top) (Black)
19	WP3196557 Whirlpool Screw
20	Trim, Door (Hinge Side) (Stainless)
20	Trim, Door (Hinge Side) (Black)
20	Trim, Door (Hinge Side) (White)
21	Trim, Door (Bottom) (Stainless)
21	Trim, Door (Bottom) (Black)
21	Trim, Door (Bottom) (White)
22	Trim, Door (Dispenser, Top & Bottom)
22	WPL 2186702B
22	WPL 2186702W
23	WPL 2186704B
23	WPL 2186704W
23	WPL 2186780S
24	WPL 2186708
25	WPL 2186706B
25	WPL 2186782S
25	WPL 2186706W
26	WPL 2186710
