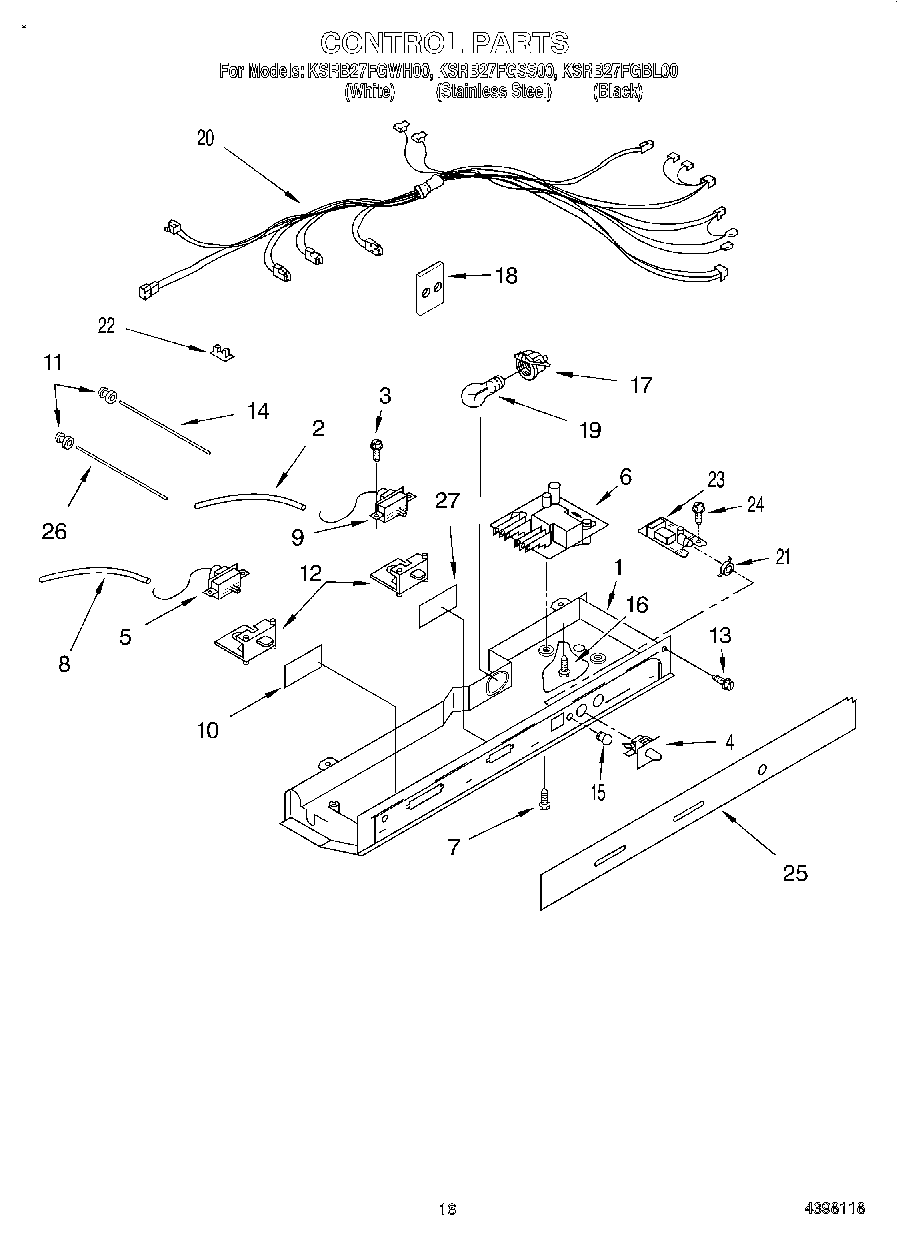

KSRB27FGSS00 10 – CONTROLadmin2025-04-26T12:18:08+00:00KSRB27FGSS00 10 – CONTROL ProductsPositionProduct12200135 Whirlpool Refrigerator Control Box2WP2196003 Whirlpool Refrigerator Bar Riser4WP2149705 Whirlpool Refrigerator Door Switch5WP2182770 Whirlpool Refrigerator Thermostat64388932 Whirlpool Refrigerator Adaptive Defrost Timer Kit7489392 Whirlpool Refrigerator Screw9WP2161460 Whirlpool Refrigerator Thermostat102172940 Whirlpool Window11Grommet, Light Fiber122161466 Whirlpool Refrigerator Slide14Fiber Optic15COVER, LIGHT LENS16WP488488 Whirlpool Refrigerator Screw174387478 Whirlpool Refrigerator Light Socket182172931 Whirlpool Refrigerator Shield19RANGE ONLY 40W 120V APPL BULB20Control Box Harness21Retainer, Light Lens22CLIP, WIRING23P.C. Board Filter Indicator242006254 Whirlpool Refrigerator Screw25Escutcheon, Control Box26Light Bar (FC)27Window
