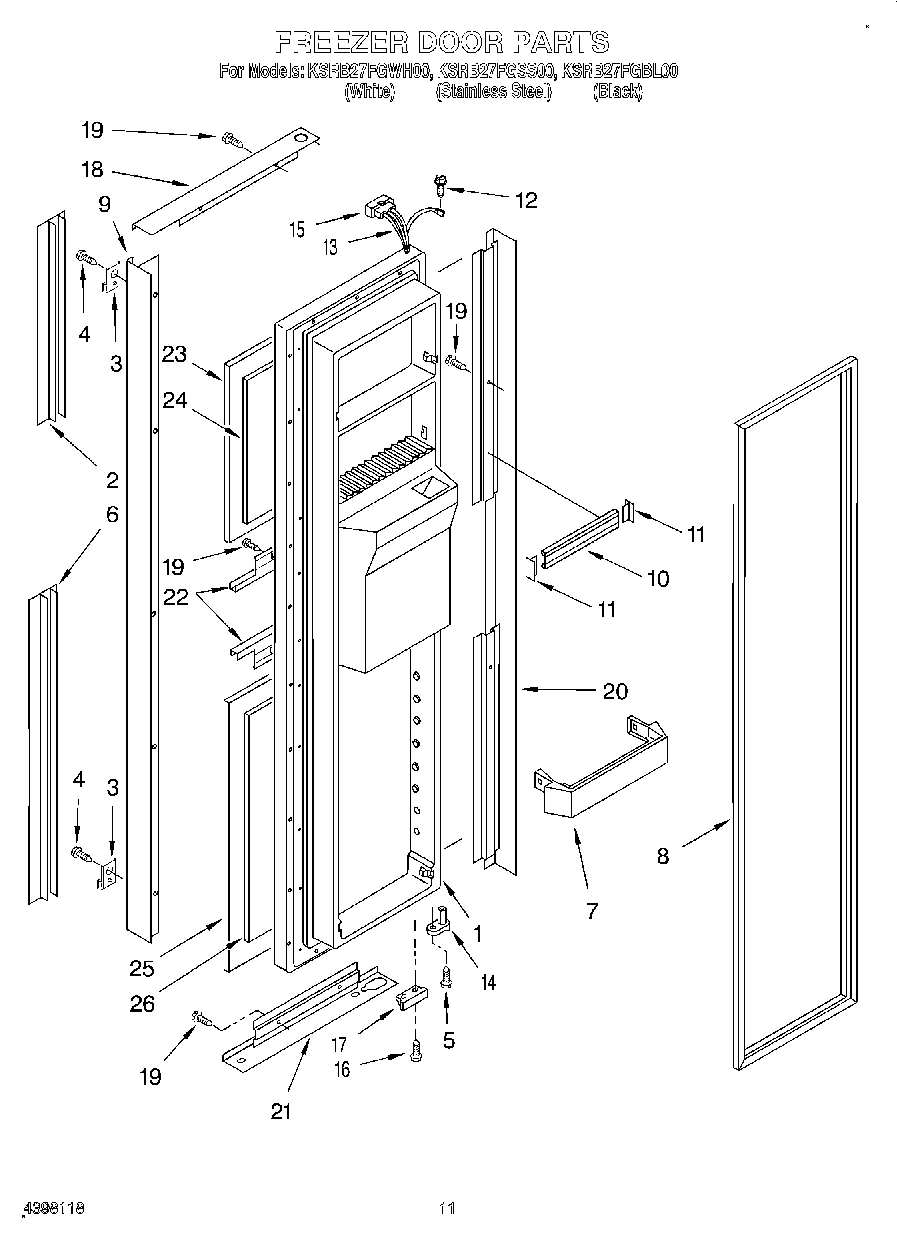

KSRB27FGWH00 07 – FREEZER DOOR

KSRB27FGWH00 07 – FREEZER DOOR

Written by

in

KSRB27FGWH00 07 – FREEZER DOOR

Products

PositionProduct
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Black)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless)
1Freezer Door (Includes No.8 And Dispenser Front Parts) (White)
2Cover, Screw (Stainless Steel)
2Cover, Screw (White)
2Cover, Screw (Black)
3Clip, Handle
4WP489478 Whirlpool Refrigerator Screw
5WP3400012 Whirlpool Refrigerator Screw
6Cover, Screw (Black)
6Cover, Screw (Stainless Steel)
6Cover, Screw (White)
7Shelf Bin (4)
82159082 Whirlpool Freezer Door Gasket Black
82159074 Whirlpool Door Gasket Seal
9Handle (Stainless)
9Handle (Black)
9Handle (White)
10WPW10307490 Whirlpool Door Trim Assembly
11WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
12WP489128 Whirlpool Refrigerator Screw
13Wire Harness
14WP2182179 Whirlpool Cam Closer
15WP2154473 Whirlpool Refrigerator Connector
16WP489483 Whirlpool Screw
17Bracket, Door Stop (Chrome)
18Trim, Door (Top) (Stainless)
18Trim, Door (Top) (White)
18Trim, Door (Top) (Black)
19WP3196557 Whirlpool Screw
20Trim, Door (Hinge Side) (Stainless)
20Trim, Door (Hinge Side) (Black)
20Trim, Door (Hinge Side) (White)
21Trim, Door (Bottom) (Stainless)
21Trim, Door (Bottom) (Black)
21Trim, Door (Bottom) (White)
22Trim, Door (Dispenser, Top & Bottom)
22WPL 2186702B
22WPL 2186702W
23WPL 2186704B
23WPL 2186704W
23WPL 2186780S
24WPL 2186708
25WPL 2186706B
25WPL 2186782S
25WPL 2186706W
26WPL 2186710
