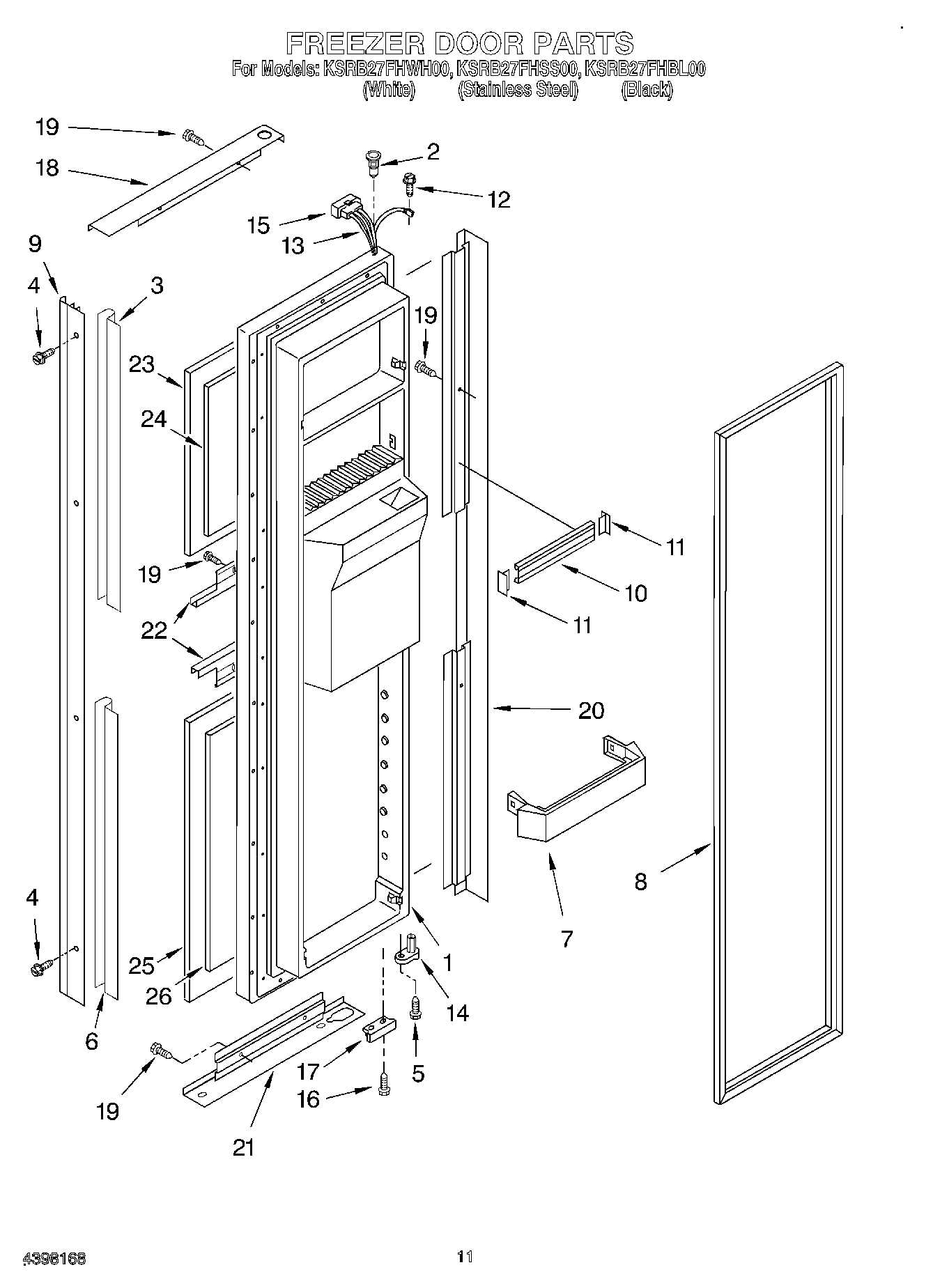

KSRB27FHWH00 07 – FREEZER DOORadmin2025-04-26T12:17:36+00:00KSRB27FHWH00 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (White) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Black) |
| 1 | Freezer Door (Includes No.8 And Dispenser Front Parts) (Stainless) |
| 2 | WP2182181 Whirlpool Refrigerator Thimble |
| 3 | Edging, Bottom (Black) |
| 3 | Edging, Bottom (White) |
| 4 | Screw (White) |
| 4 | Screw |
| 4 | Screw (Black) |
| 5 | WP3400012 Whirlpool Refrigerator Screw |
| 6 | Edging, Panel (White) |
| 6 | Edging, Panel (Black) |
| 7 | Shelf Bin (4) |
| 8 | 2159082 Whirlpool Freezer Door Gasket Black |
| 8 | 2159074 Whirlpool Door Gasket Seal |
| 9 | Handle (Stainless) |
| 9 | Handle (Black) |
| 9 | Handle (White) |
| 10 | WPW10307490 Whirlpool Door Trim Assembly |
| 11 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 12 | WP489128 Whirlpool Refrigerator Screw |
| 13 | Wire Harness |
| 14 | WP2182179 Whirlpool Cam Closer |
| 15 | WP2154473 Whirlpool Refrigerator Connector |
| 16 | WP489483 Whirlpool Screw |
| 17 | Bracket, Door Stop (Chrome) |
| 18 | Trim, Door (Top) (White) |
| 18 | Trim, Door (Top) (Black) |
| 18 | Trim, Door (Top) (Stainless) |
| 19 | WP3196557 Whirlpool Screw |
| 20 | Trim, Door (Hinge Side) (Black) |
| 20 | Trim, Door (Hinge Side) (White) |
| 20 | Trim, Door (Hinge Side) (Stainless) |
| 21 | Trim, Door (Bottom) |
| 21 | WPL 2203368W |
| 21 | WPL 2203369S |
| 22 | Trim, Door (Dispenser, Top & Bottom) |
| 22 | WPL 2186702B |
| 22 | WPL 2186702W |
| 23 | WPL 2203284W |
| 23 | WPL 2203284B |
| 23 | Panel, Upper |
| 24 | Filler, Panel (Upper) |
| 25 | WPL 2203286B |
| 25 | WPL 2203286W |
| 25 | Panel, Lower |
| 26 | Filler, Panel (Lower) |
