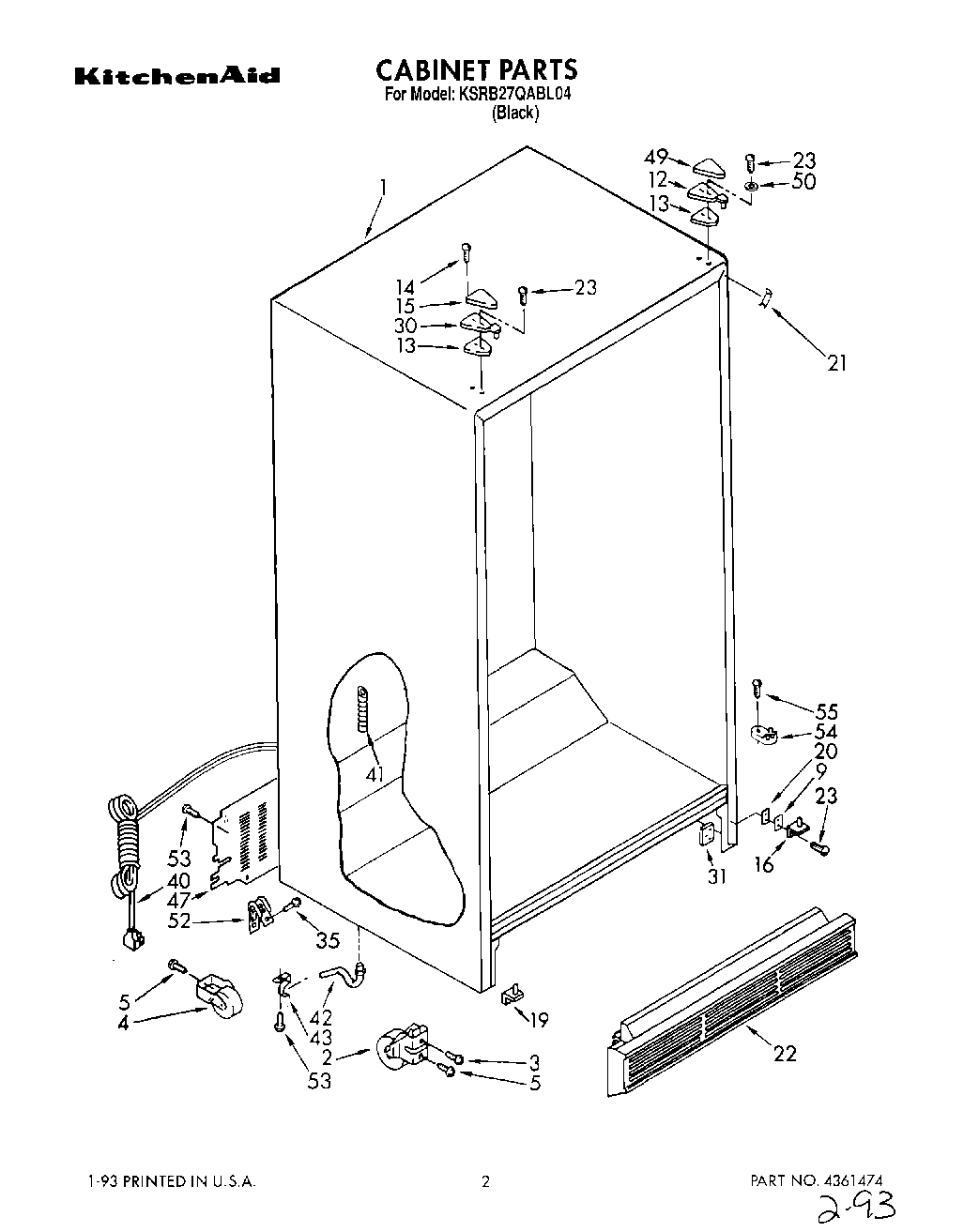

KSRB27QABL04 01 – CABINETadmin2025-04-26T12:20:13+00:00KSRB27QABL04 01 – CABINET
Products
| Position | Product |
|---|
| 1 | Cabinet (Not A Serviceable Part) |
| 2 | Front Roller (2) |
| 3 | Screw, 5/16-24 x 1-1/4 |
| 4 | WPW10250570 Whirlpool Refrigerator Cabinet Roller |
| 5 | Screw, 1/4-28 x 1/2 (2) |
| 9 | Shim, Bottom Hinge |
| 12 | Hinge Top (R.H.) |
| 13 | Shim, Hinge Freezer Door |
| 14 | Screw |
| 15 | Hinge Cover |
| 16 | Hinge Bottom (R.H.) |
| 19 | hinge Bottom (L.H.) |
| 20 | Spacer, Hinge |
| 21 | Filler, Wrapper (Black) |
| 22 | Grille |
| 23 | Screw |
| 30 | Hinge, Top (L.H.) |
| 31 | Tap Plate (2) |
| 35 | WP489464 Whirlpool Refrigerator Screw |
| 40 | Cord, Service |
| 41 | W11566763 Whirlpool Fitting |
| 42 | WP1108438 Whirlpool Refrigerator Extension |
| 43 | WP1108439 Whirlpool Refrigerator Clip |
| 47 | Cover, Unit |
| 49 | Hinge Cover (Black) |
| 50 | Washer, 7/16 |
| 52 | 549193 Whirlpool Refrigerator Power Clamp |
| 54 | WPW10329686 Whirlpool Door Cam Black |
| 55 | WP489399 Whirlpool Refrigerator Screw |
