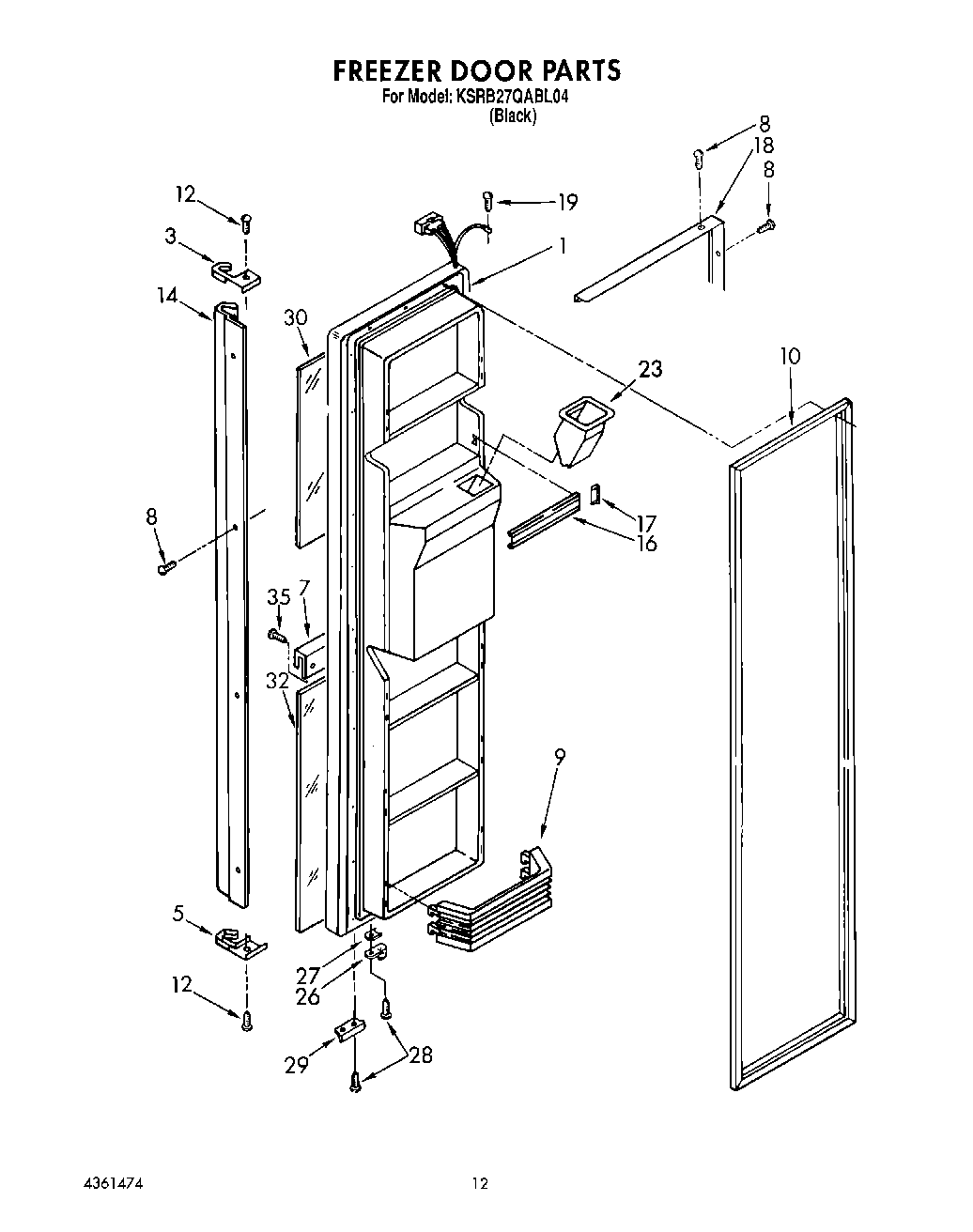

KSRB27QABL04 07 – FREEZER DOORadmin2025-04-26T12:20:35+00:00KSRB27QABL04 07 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes Item 10 And Dispenser Front Parts) |
| 3 | End Cap, Bottom |
| 5 | End Cap, Top |
| 7 | Trim, Dispenser |
| 8 | Screw (10) |
| 9 | Shelf Bin (4) |
| 10 | 2159074 Whirlpool Door Gasket Seal |
| 12 | Screw, 6-32 x 1/2 |
| 14 | Handle |
| 16 | Trim, Door Shelf |
| 17 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 18 | Trim, Door |
| 19 | WP488234 Whirlpool Air Conditioner Screw |
| 23 | Chute, Ice |
| 26 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 27 | WP1104787 Whirlpool Refrigerator Shim |
| 28 | WP489069 Whirlpool Compactor Screw |
| 29 | Bracket, Door Stop (Black) |
| 30 | Black Glass, Upper |
| 32 | Black Glass, Lower |
| 35 | Screw |
